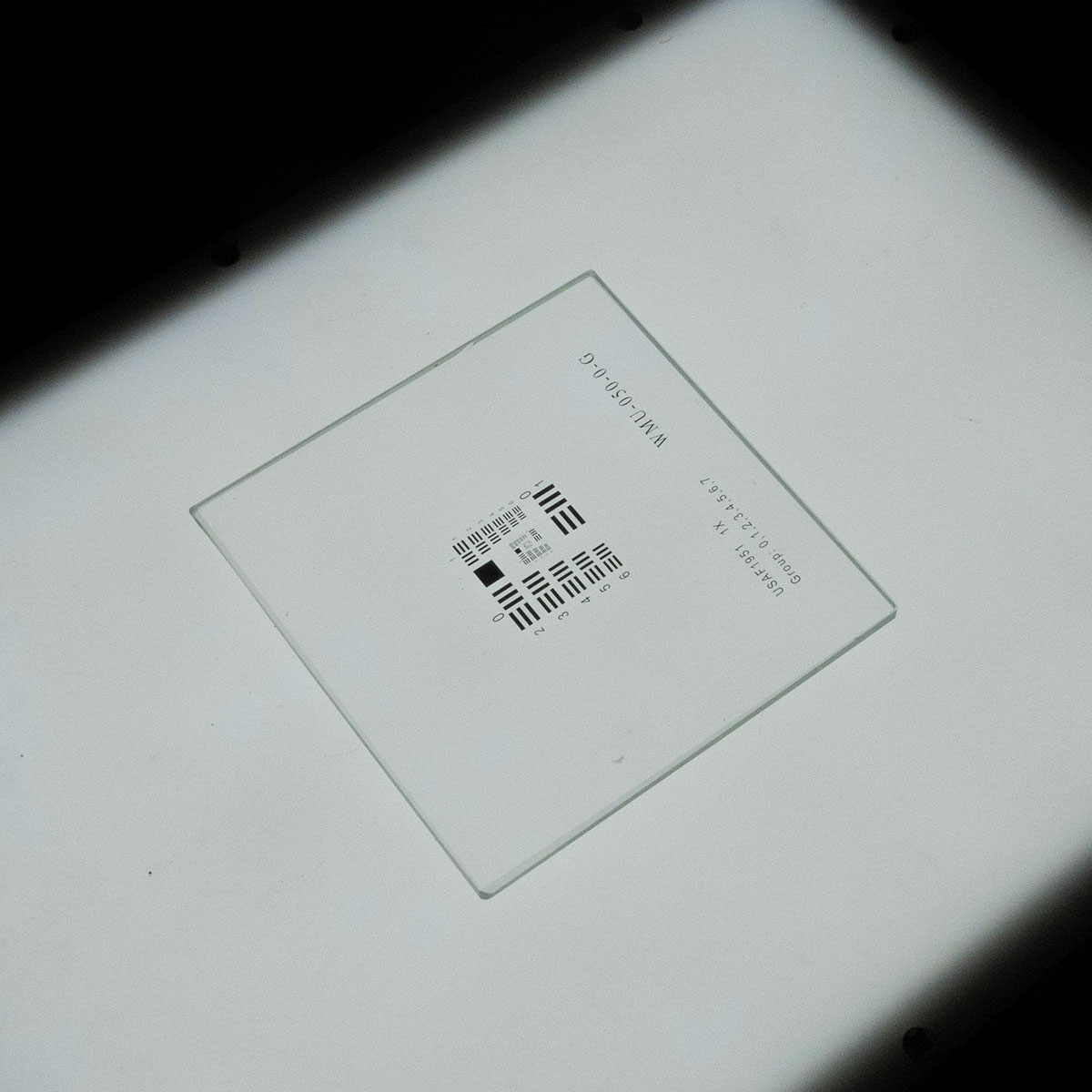

Custom Chrome on Glass Target

Custom Any Shape, Any Material, Any Size

Custom Chrome on Glass Target

The gold standard for transmission illumination applications requiring extreme accuracy and thermal stability
Factory-Direct Pricing
High Quality
Fast Delivery
Technical Service
±0.1μm
Feature Position Accuracy
±1μm
Line Straightness
5x10-7/°C
Thermal Expansion
~5µm
Surface Flatness
±0.1μm
Feature Position Accuracy
±1μm
Line Straightness
5x10-7/°C
Thermal Expansion
~5µm
Surface Flatness
1 / 2

Why Choose Chrome on Glass Substrate?

The superior substrate choice for the most demanding calibration applications

Ultra-Low Thermal Expansion

Coefficient of thermal expansion <5×10⁻⁷/°C - 15×better than standard glass. Maintains precision across temperature variations from -40°C to +1100°C.

Exceptional Flatness

Surface flatness down to 5μm for targets up to 130mm. Critical for applications requiring consistent optical path length across the entire surface.

Superior Optical Properties

High transmission (>93%) across visible spectrum with excellent homogeneity. Perfect for backlight and transmission illumination setups

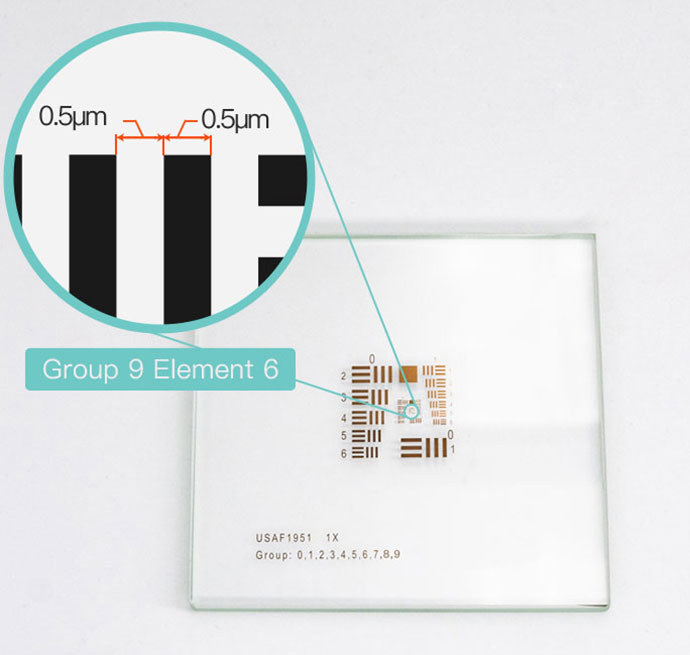

Ultimate Feature Resolution

Minimum feature size down to 0.5μm with razor-sharp edges. Lithographic process delivers unmatched pattern definition and contrast.


Why Substrate Choice Matters for Your Application

Minimum Line/space

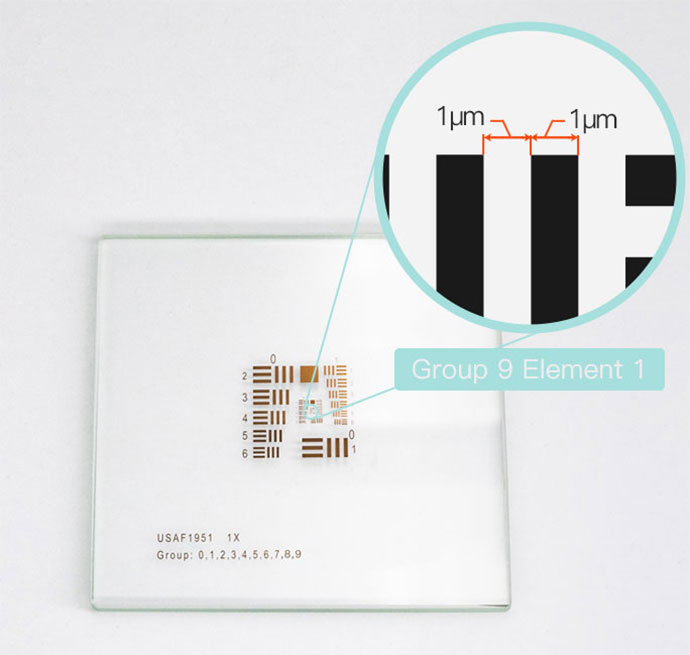

Left: Soda lime glass targets resolve features down to 1μm - suitable for general testing applications.

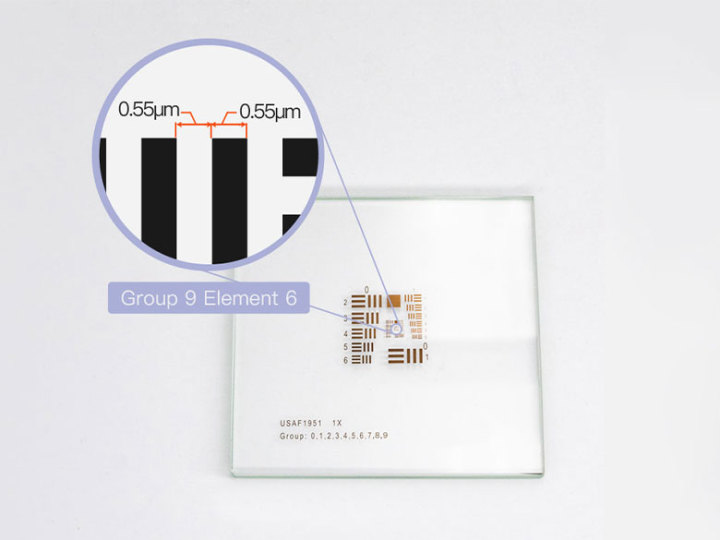

Right: Quartz glass targets achieve 0.5μm resolution - essential for high-precision measurement systems requiring maximum accuracy.

Substrate Properties Comparison

See why quartz glass is the premium choice for ultra-precision applications.

Property Quartz Glass Soda Lime Glass Ceramic
Thermal Expansion <5×0⁻⁷/°C 85×10⁻⁷/°C 2×10⁻⁶/°C
Feature Accuracy ±0.1μm ±1μm ±2μm
Min Feature Size 0.5μm 0.7μm 3μm
Surface Flatness ~5μm ~10μm 10-80μm
Max Temperature 1100°C ~300°C 80°C
Transmission >93% >90% N/A (Opaque)
Cost Premium Standard Moderate

Thermal Expansion Coeff

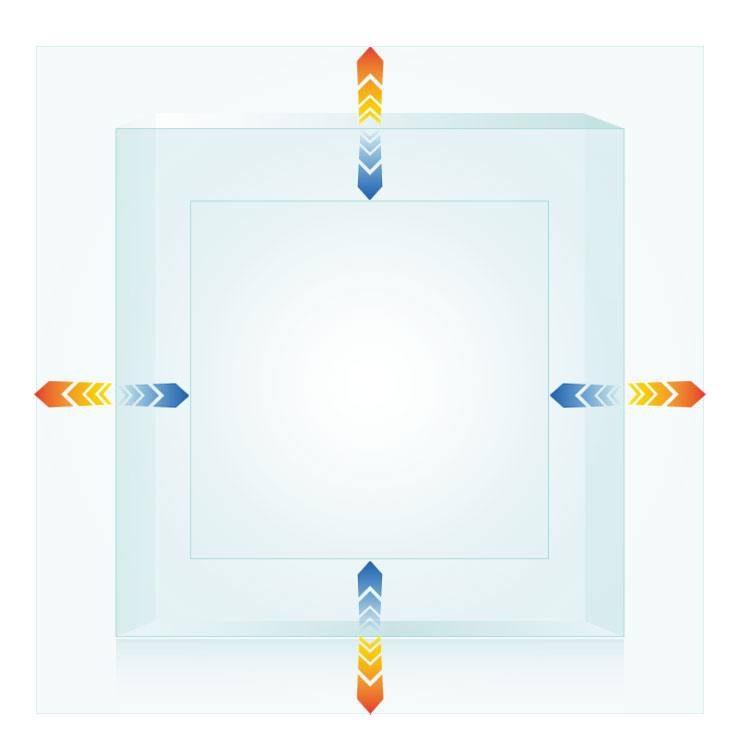

Glass expands when heated and contracts when cooled.

Note: Quartz glass offers approximately 14×it greater dimensional stability under temperature changes

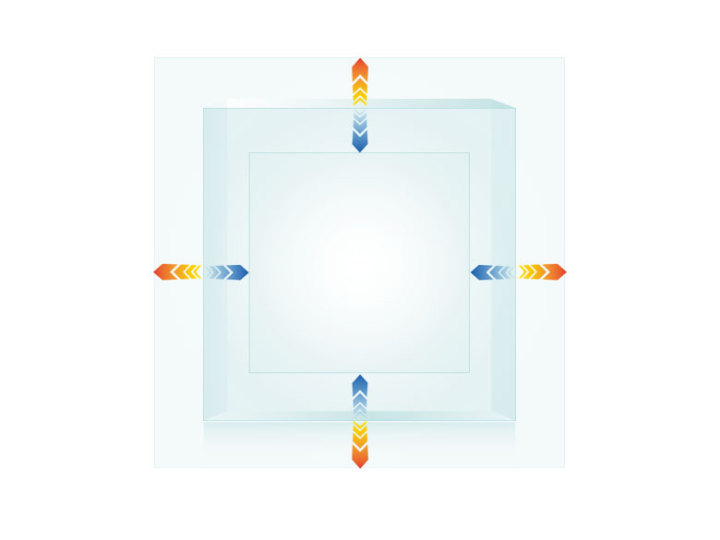

What is Thermal Expansion Coeff in Glass Substrates?

hermal expansion is how much a material grows or shrinks when temperature changes.T Quartz glass has ultra-low thermal expansion ( <5×;10⁻⁷/°C), expanding only 0.55μm per meter per degree Celsius ‐ 15 times less than standard glass. This ensures calibration targets maintain precision across temperature variations.

Property Quartz Glass Soda Lime Glass
Thermal Expansion <5×0⁻⁷/°C 85×10⁻⁷/°C
Feature Accuracy ±0.1μm ±1μm
Min Feature Size 0.5μm 0.7μm
Surface Flatness ~5μm ~10μm
Max Temperature 1100°C ~300°C

Tips to Prons & Cons

One of the advantages of quartz glass is Low Thermal Expansion Rate (CTE): <5.0*10⁻⁷, it delivers superior thermal stability (0.55μm/°C vs 8.5μm/°C). Essential for precision measurements, optional for general testing applications.

Unless you need exceptional thermal stability, soda lime glass delivers excellent performance at a fraction of the cost of quartz glass.

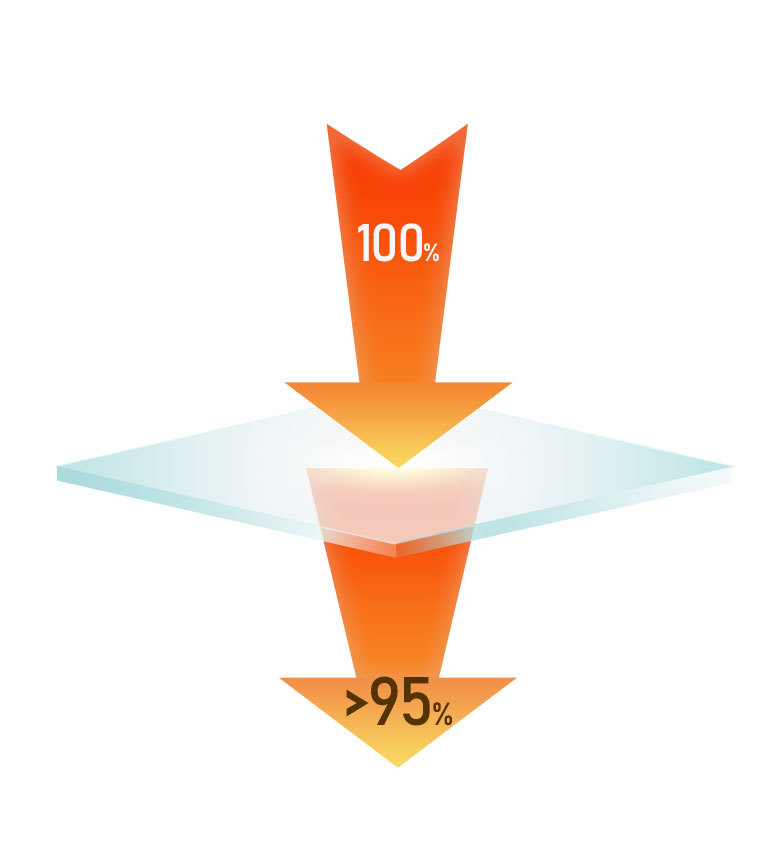

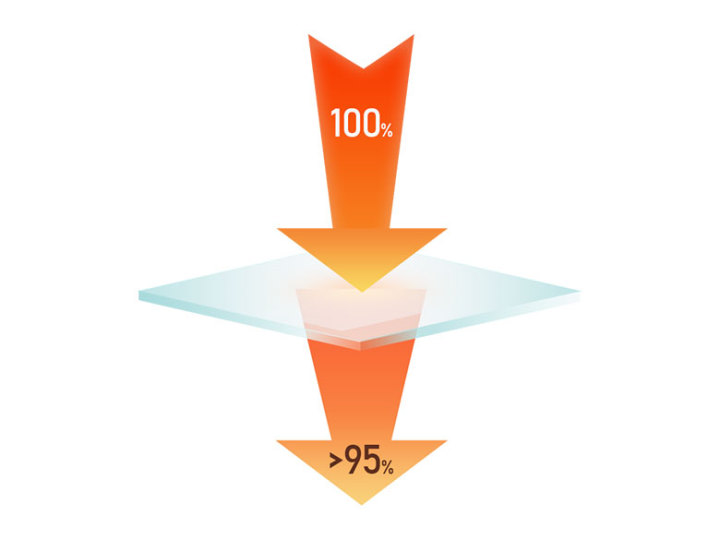

Superior Light Transmission

Industries that demand the ultimate in calibration precision

Soda Lime Glass (Float Silica):

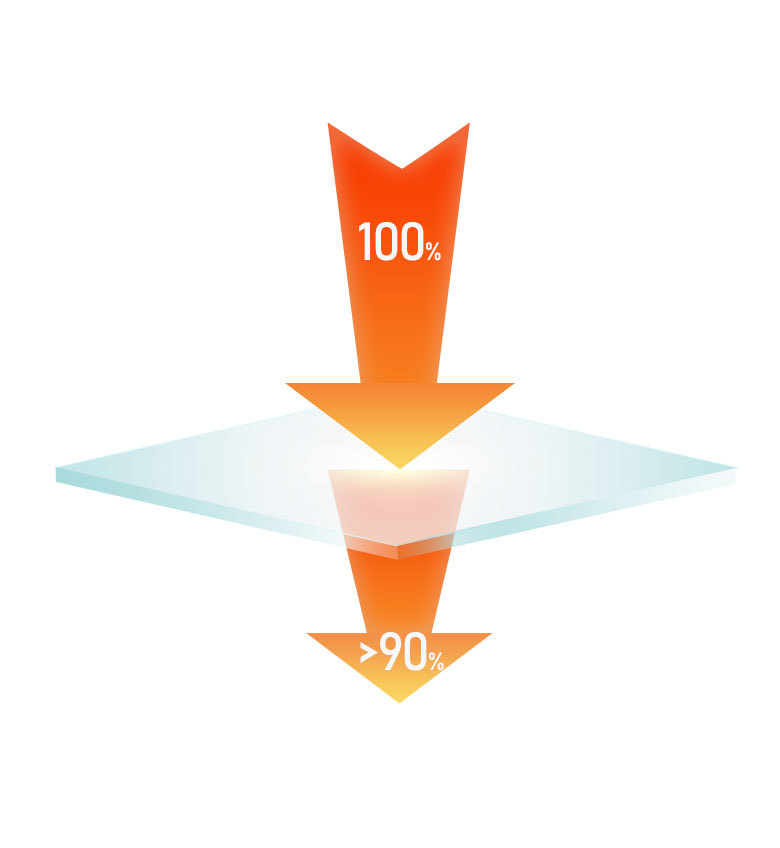

Transmission Rate >90% at 550nm

Quartz Glass (Fused Silica):
Transmission Rate >95% at 550nm

Surface Flatness Comparison

Glass expands when heated and contracts when cooled.

What is Surface Flatness?

Surface flatness indicates how level a target’s surface is across its entire area. Quartz glass maintains flatness within 5μm for targets up to 130mm, ensuring consistent optical path length and accurate measurements throughout the calibration area.

Note: Quartz glass consistently delivers 5-10× better surface flatness across all size ranges, making it ideal for precision optical applications.

Glass Type Soda Lime Glass (Standard Float Glass) Quartx Glass (Fused Silica) Small Samples
Small Samples Surface Deviation <5μm (for sizes under 100mm) <lμm (for sizes under 50mm)
Medium Samples Surface Deviation <20μm (for sizes under 200mm) <2μm (for sizes under 100mm)
Large Samples Surface Deviation 0<50μm (for sizes over 200mm) <5μm(for sizes over 100mm)

Ultra-Smooth Surface

Surface Roughness: Less than 25 nanometers

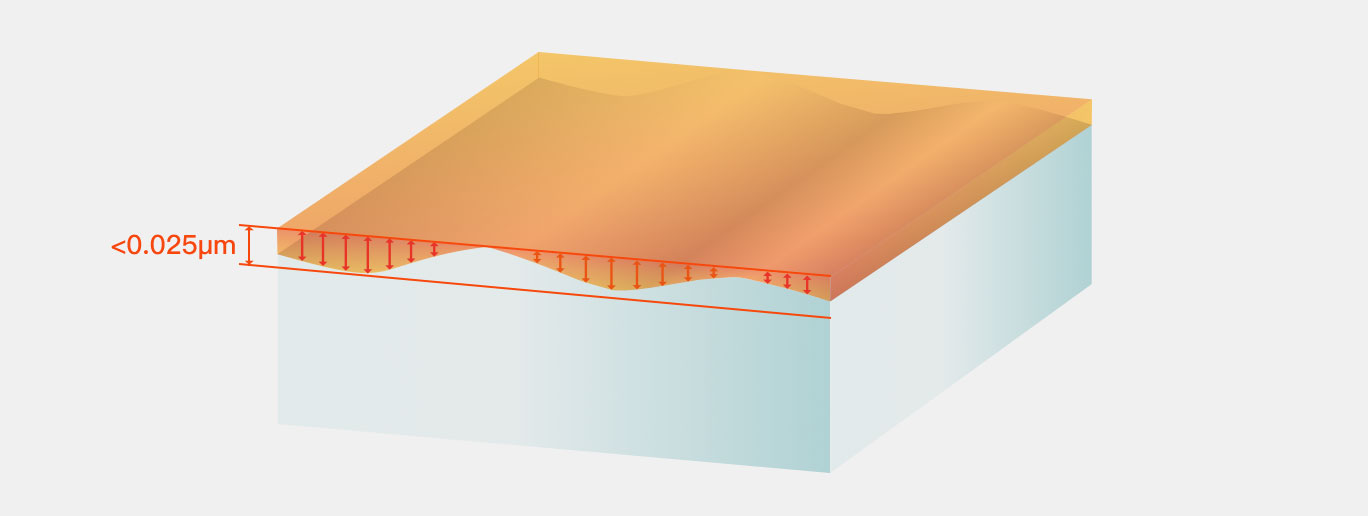

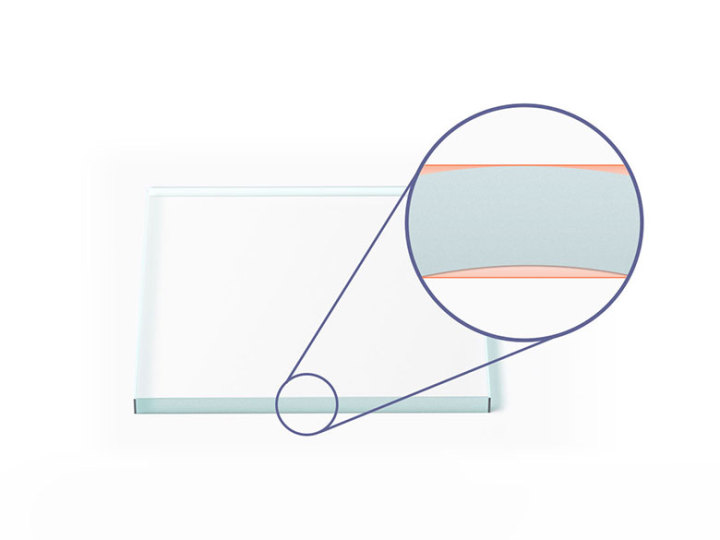

Note: Diagram shows microscopic surface profile with maximum height variations under 25nm

Our precision-polished quartz glass features an exceptionally smooth surface with microscopic variations of less than 0.025μm (25nm) – approximately 2,000 times thinner than a human hair.

This near-perfect surface quality ensures:

  • Superior optical performance
  • Minimal light scatter
  • Optimal coating adhesion
  • Exceptional image clarity

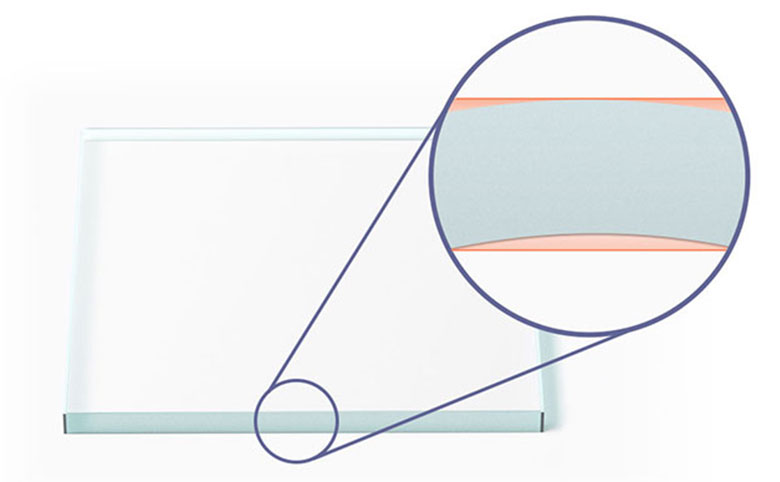

Diagram shows microscopic surface profile with maximum height variations under 25nm

Chrome Coating Options on Glass Target

Choose the perfect coating for your specific application requirements

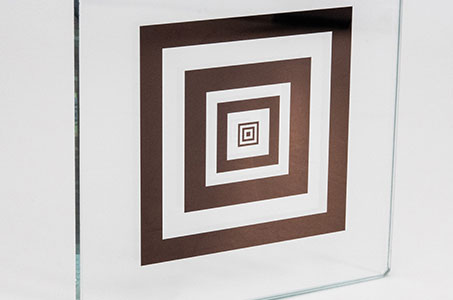

Standard Brown Chrome

  • Best for: General-purpose applications
  • Reflectivity: <25% for good contrast
  • Cost-effective choice when extreme precision isn't critical

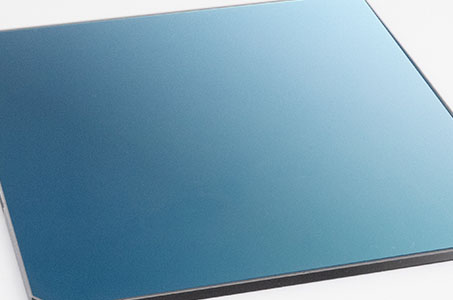

Low-Reflective Blue Chrome

  • Best for: High-contrast applications
  • Reflectivity: <5% for maximum contrast
  • Cost-effective choice when extreme precision isn't critical

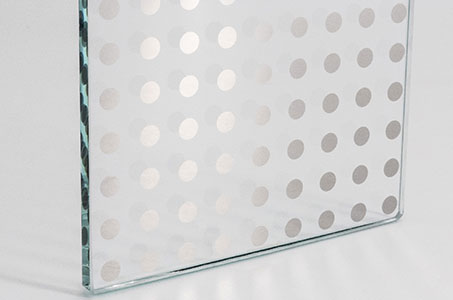

High-Reflective Silver Chrome

  • Best for: Reflective measurement systems
  • Reflectivity: <65% for bright reference patterns
  • Perfect for applications requiring reflected light

Low Reflectivity Quartz Glass

Key Insight: Blue Chrome exhibits the lowest reflectivity in the 640-740 nm wavelength range, dropping to nearly 0% reflectivity

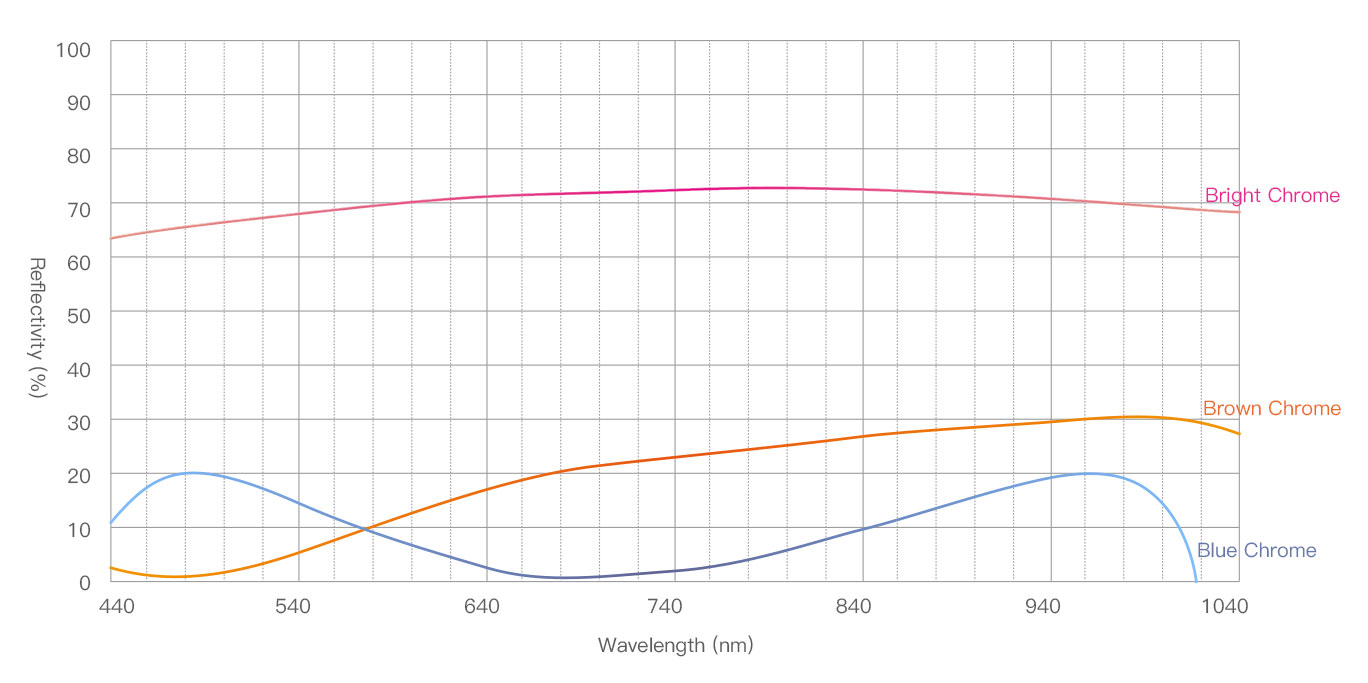

Note: Graph shows comparative reflectivity (%) of Bright Chrome, Brown Chrome, and Blue Chrome across 440-1040 nm wavelength range.

Choose Your Ideal Chrome Coating

Based on the demonstrated reflectivity performance, select the coating that matches your application's contrast and measurement requirements. Each option delivers consistent, reliable results for different optical testing scenarios.

Contact us to specify your preferred chrome coating option, or request samples to test with your specific setup.

Get Custom Quote

Manufacturing Process That Ensures Quality

Substrate Preparation

Premium quartz glass blanks are inspected for optical quality and dimensional accuracy. Only substrates meeting our strict flatness and transmission standards proceed to coating.

Precision Chrome Deposition

Advanced sputtering systems deposit ultra-uniform chrome layers. Real-time monitoring ensures consistent thickness and optical properties across the entire surface.

Lithographic Patterning

State-of-the-art photolithography creates your custom patterns with sub-micrometer precision. Multiple alignment checks guarantee every feature lands exactly where it should.

Quality Verification

Every target undergoes comprehensive dimensional and optical testing. We provide detailed measurement reports showing actual vs. specified dimensions.

Low Reflectivity Quartz Glass

Key Insight: Blue Chrome exhibits the lowest reflectivity in the 640-740 nm wavelength range, dropping to nearly 0% reflectivity

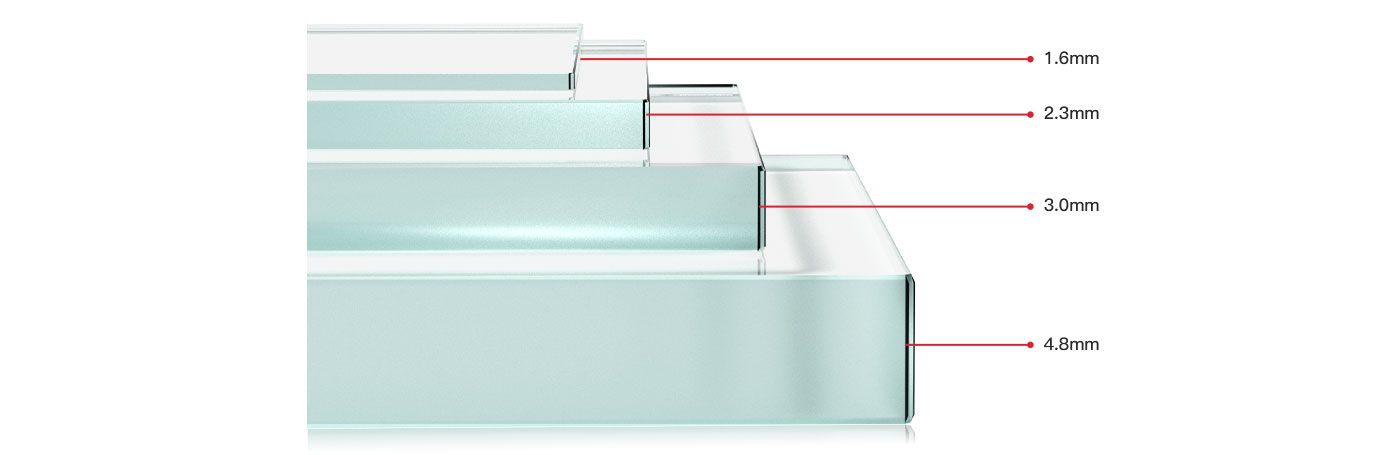

1.6mm

Ultra-thin for compact designs

2.3mm

Standard precision applications

3.0mm

Enhanced durability

10mm

Maximum stability

Size Dimension Tolerance

Specification Value Why It Matters
Size Length Width (mm) 1x1mm to 1200 x 850mm For high magnification optical systems, machine vision applications, wide-field imaging systems.
Thickness Options 1.5mm / 2.3mm / 3.0mm / 10.0mm Choose based on mounting requirements
Surface Flatness(μm) 5um to 30um (size dependent) Dimension <130mm: ~5um;
Dimension 130-220mm: ~10um;
Dimension 130-220mm: ~10um;
Dimension 220-450mm: ~20um;
Dimension 450-550mm: ~30um;
Ensures consistent optical performance
Edge Finish Beveled ±1° Prevents edge damage and light scattering
Surface Roughness <0.025um Ultra-smooth for optimal optical quality
Tolerance Specification Application Impact
Dimensional Accuracy ±0.05mm to ±0.1mm Precise positioning in optical setups
Thickness Tolerance ±0.1mm Consistent optical path length
Feature Accuracy ±0.1μm to ±1um Critical for measurement applications

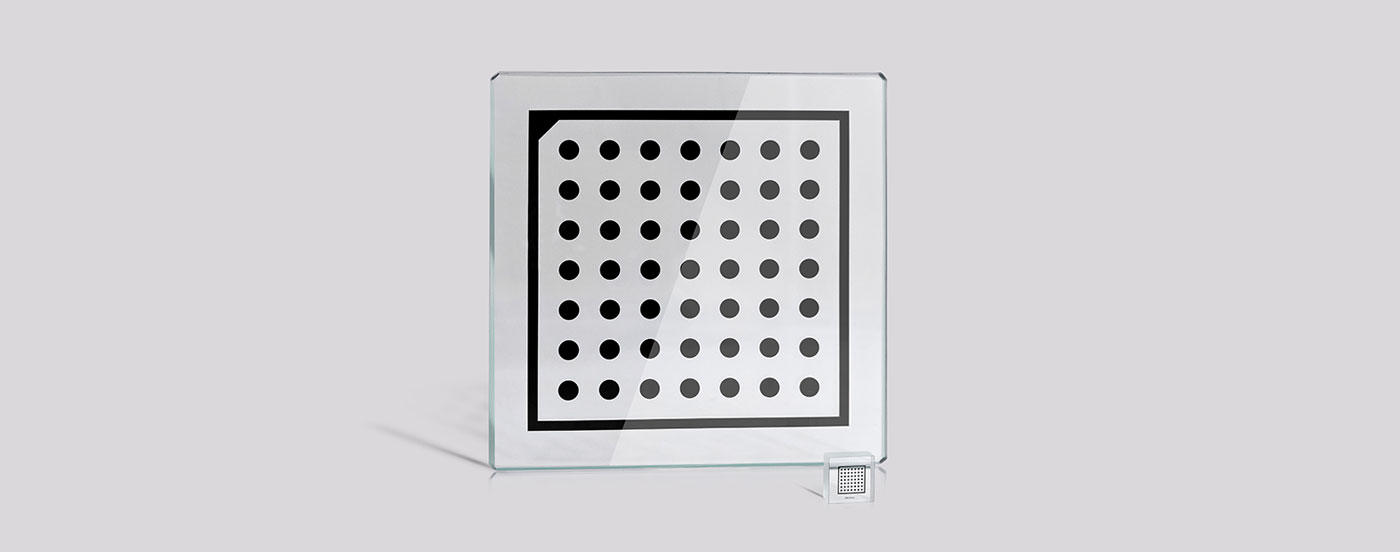

Custom Calibration Targets Dimensional Range

Available in multiple thicknesses to suit your application requirements.
Custom sizes and shapes available upon request.

1.6mm

Ultra-thin for compact designs

2.3mm

Standard precision applications

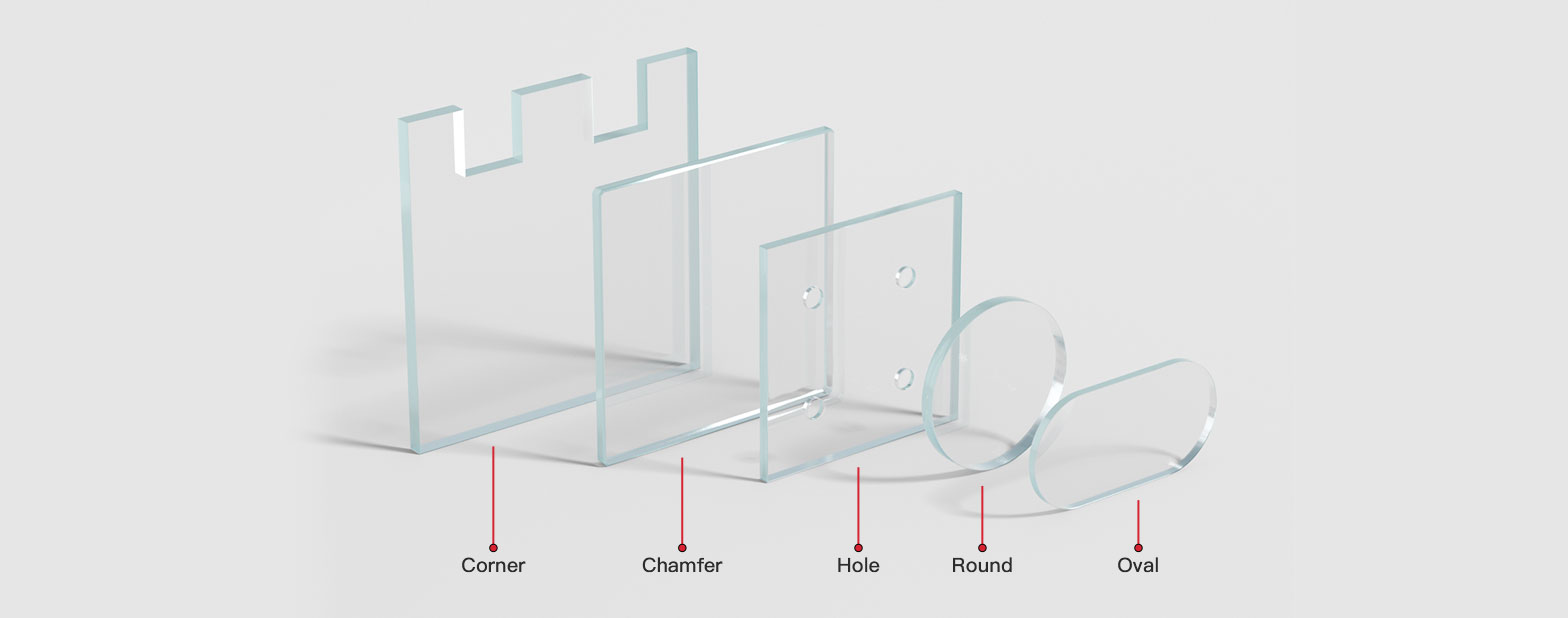

Precision Laser Cutting Custom Shapes Made Easy

From simple to complex designs, our laser cutting technology delivers exactly what you need.

Corner | Chamfer | Hole | Round | Oval
