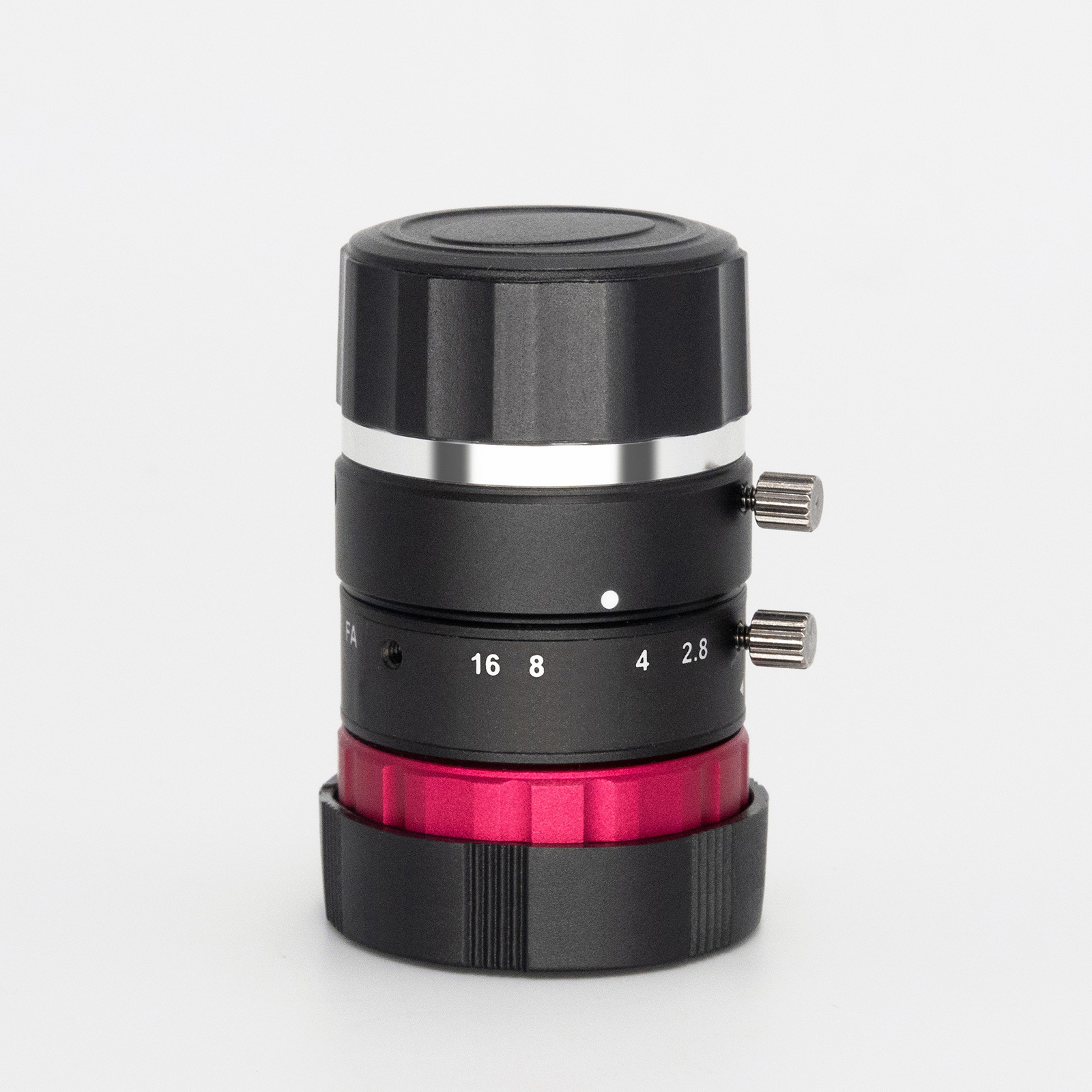

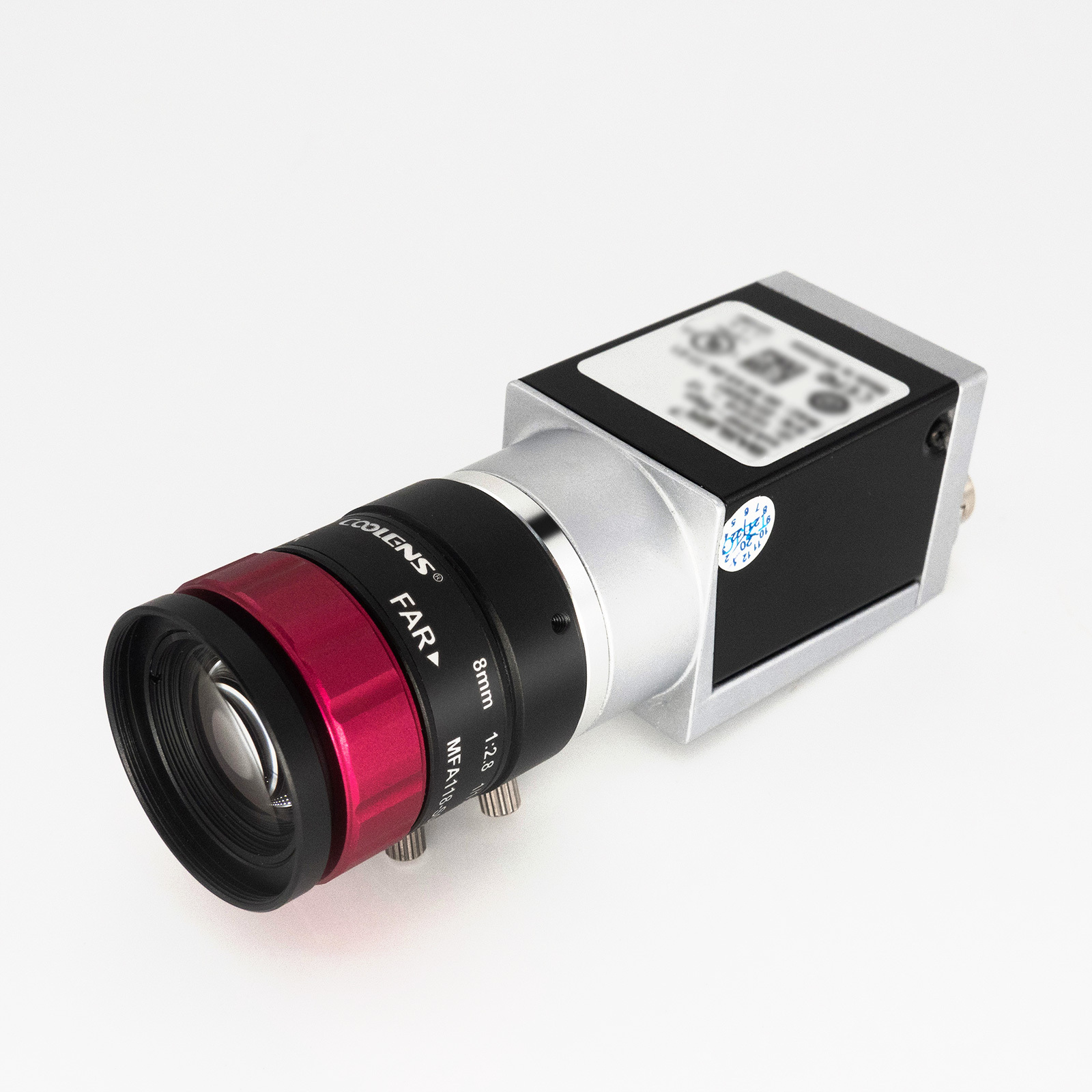

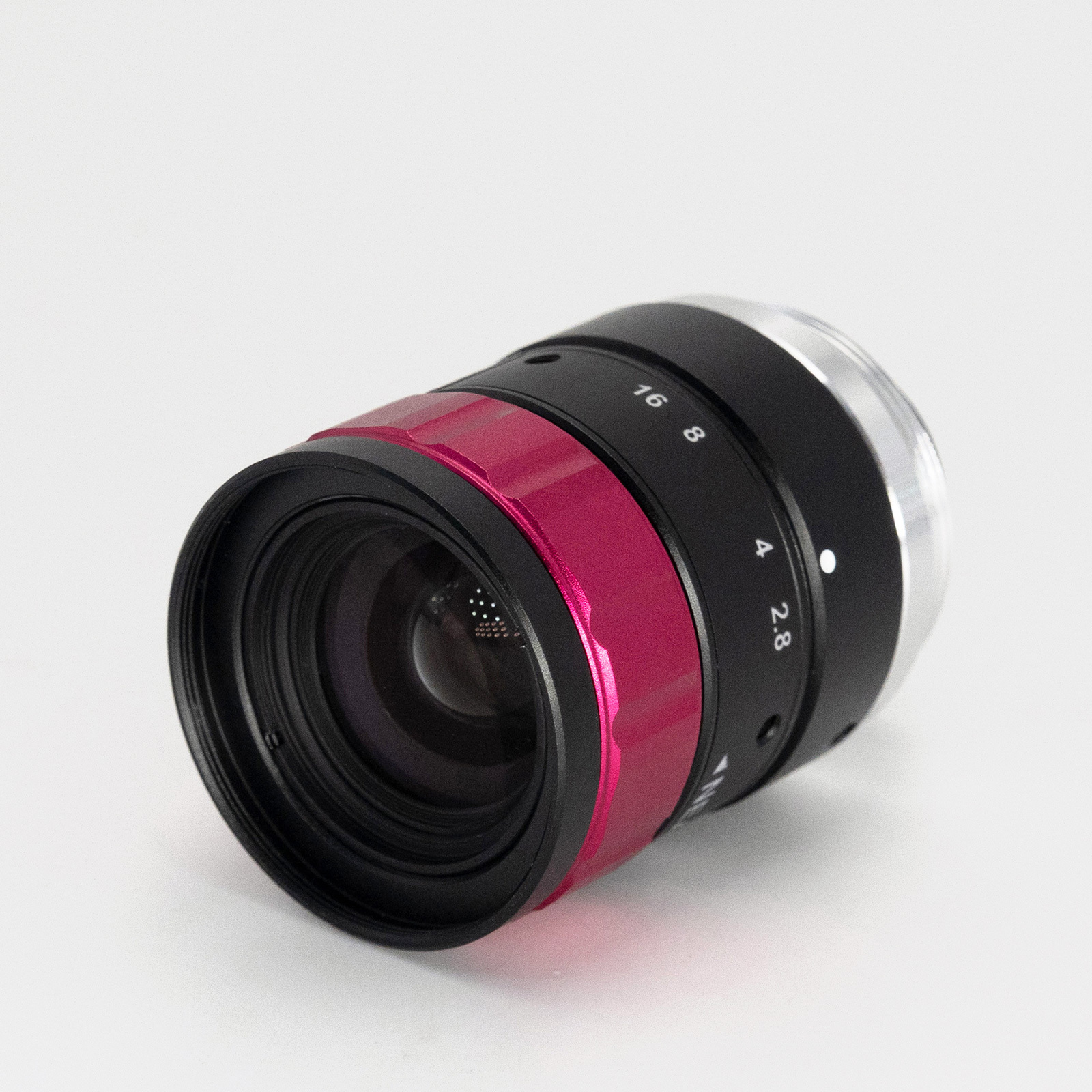

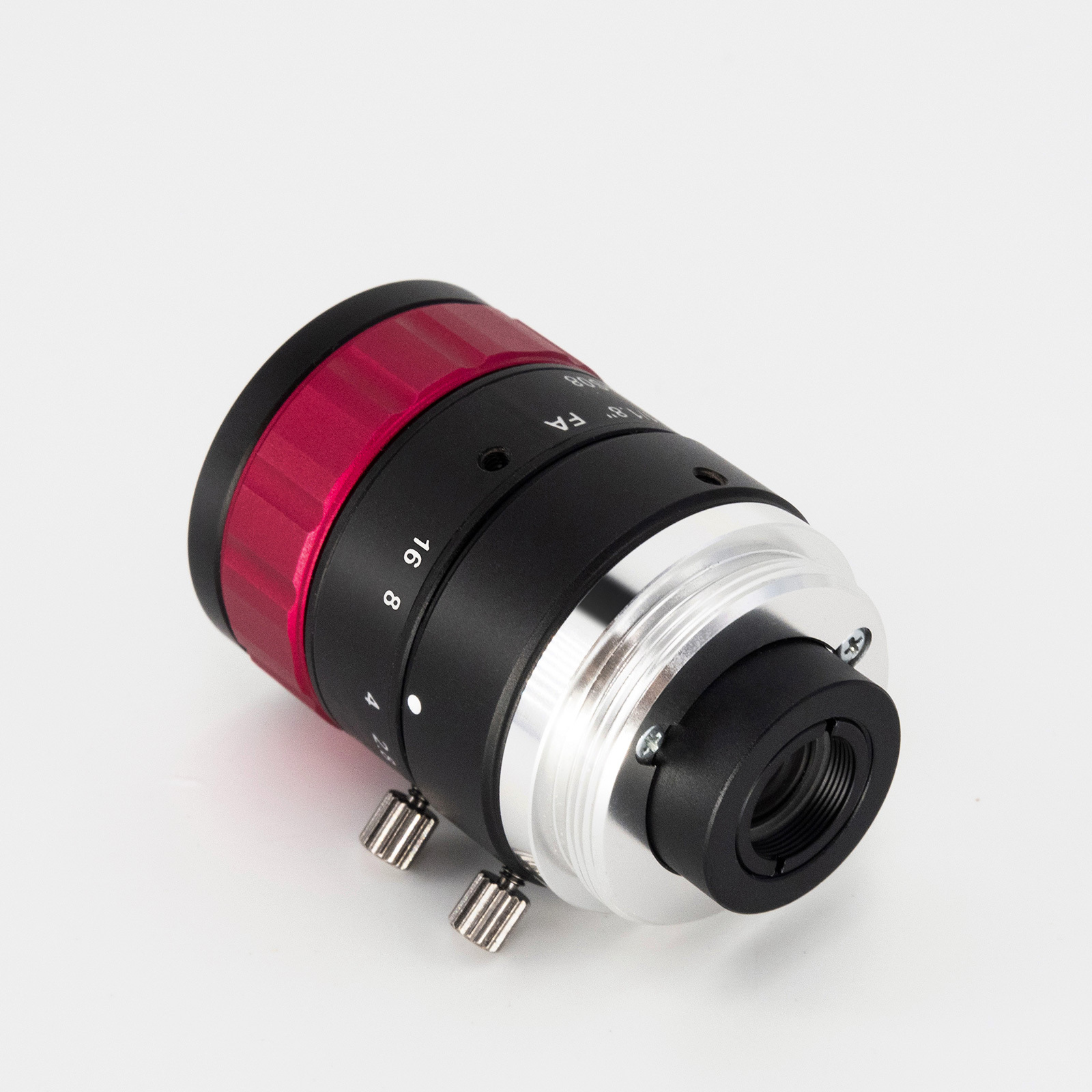

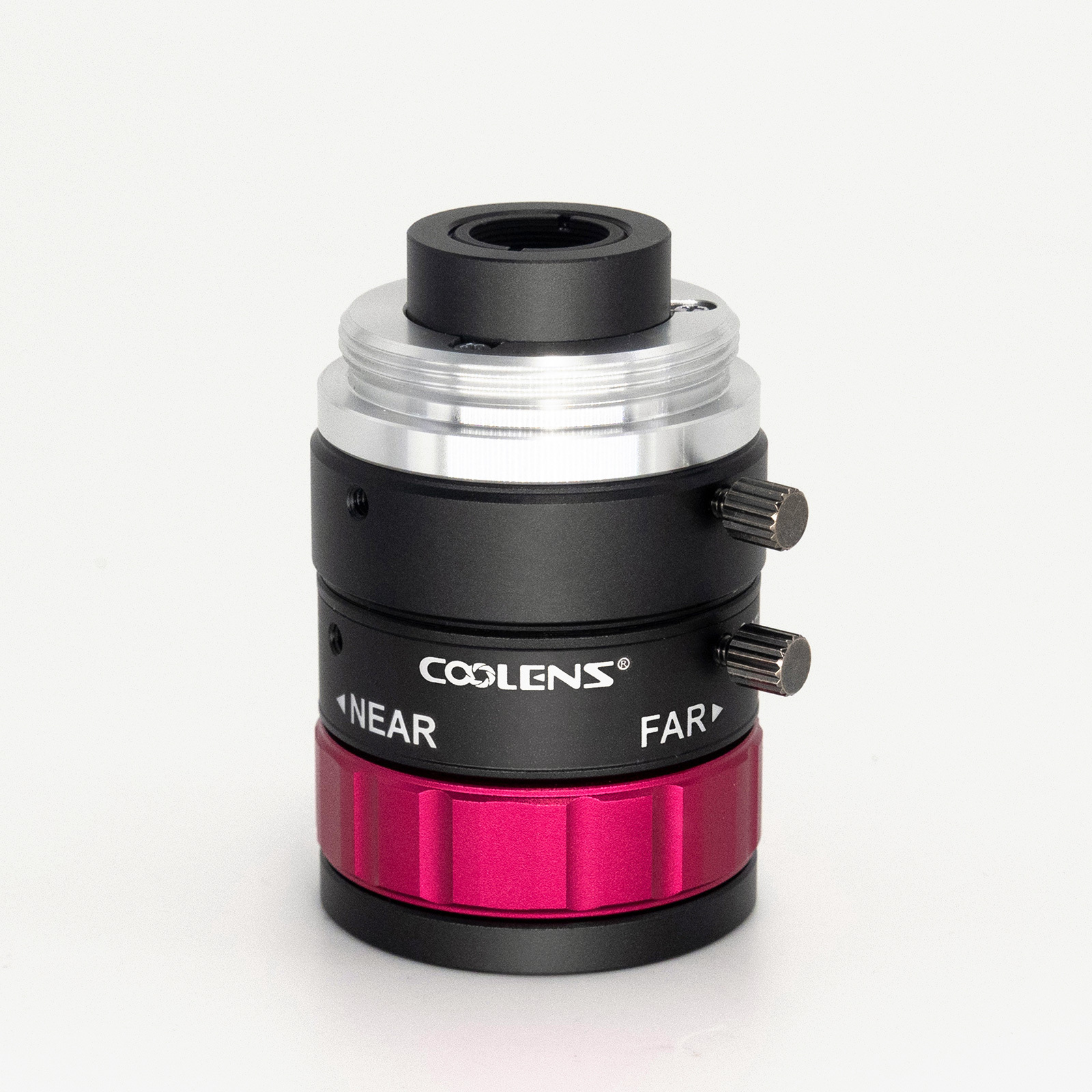

1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®

MFA118-S08
$77.00 USD
El envío se calcula al finalizar la compra.
Cantidad
1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®-OKLAB 1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®-OKLAB 1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®-OKLAB 1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®-OKLAB 1/1.8" 8mm Fixed Focal Length Lens | MFA118-S08 COOLENS®-OKLAB

Description

Model No. MFA118-S08 Image Circle Diameter (Φmm) 1/1.8"
Focal Length(mm) 8 Magnification(x) Adjustable
Working Distance(mm) Min.100 MTF30 (lp/mm) 150
Type Fixed Focal Length Support Cameras 6M
Mount C Back Focal Length 10.4 mm in Air
F NO. F2.8 - F16 Filter Size M27 x P0.5
Max. Image Format 1/1.8" (φ9.4mm) Distortion <0.12%
Angle of View D 1/1.8" 58.5° 1/2" 53.4° 1/3" 41.3°
H 49.3° 43.5° 33.2°
V 34.0° 33.2° 25.2°
M.o.D 0.1m Object Dimension at M.o.D 1/1.8" 105.33mm x 70.22mm
Length (mm) 99.5 1/2.3" 92.00mm x 65.94mm
Flange Back Length 17.526mm in Air
Structure 7 Groups, 9 Elements Operating Temperature -10°C — 50°C Operating Temperature -10°C — 50°C
Operation of Iris Range F2.8 - F16 Operation of Focus Range MOD-INF</td
Angle 28° Angle 164.6°
Spectral Transmission AT 436nm-656nmT≥85%
Dimensions

Product Photograph

img class="img-fluid o_we_custom_image" title="" src="https://oklab.oss-us-west-1.aliyuncs.com/202112/FA%20lens/Details/MFA118-S08/118-S08-Det_20.jpg" width="1200" data-original-title="" aria-describedby="tooltip252524" />
