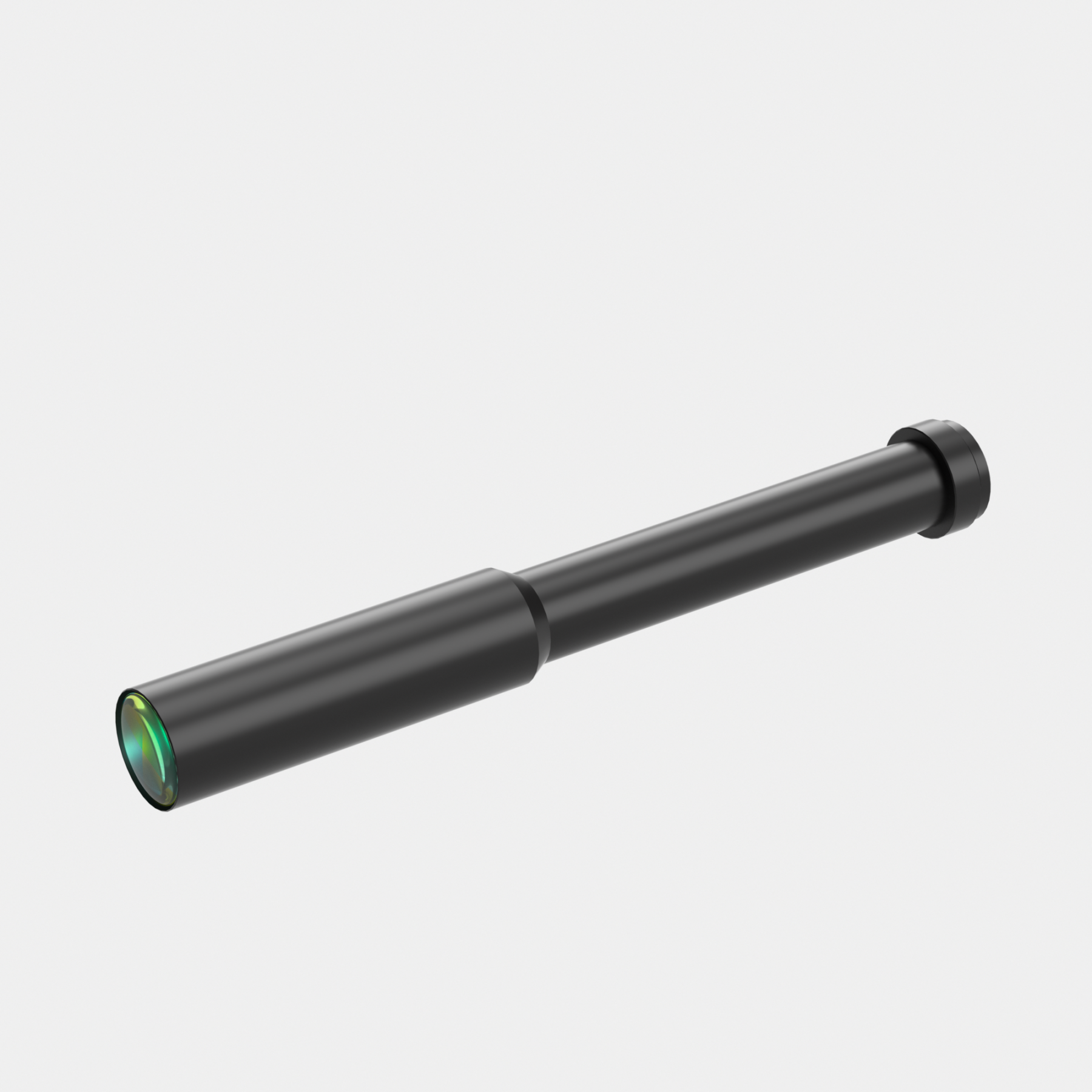

1/2" 2X Industrial Lenses | WH20-300A-120 COOLENS®

WH20-300A-120
$494.00 USD
Kira caj pengangkutan semasa pembayaran
Kuantiti
1/2" 2X Industrial Lenses | WH20-300A-120 COOLENS®-OKLAB

Description

Model NO. WH20-300A-120 Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 2 Working Distance(mm) 300
NA 0.0333 Type Fixed Magnification
Mount C Best Aperture(f/#) 27.2
MTF30 (lp/mm) 30 Object Resolution(μm) 10.1
Depth of Field(mm) 0.5 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) Non-telecentric Length (mm) 220.1
With Coaxial Illumination Port No Measured Depth of Field (mm) /
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/2"(6.4x4.8) 3.2x2.4

Dimensions
