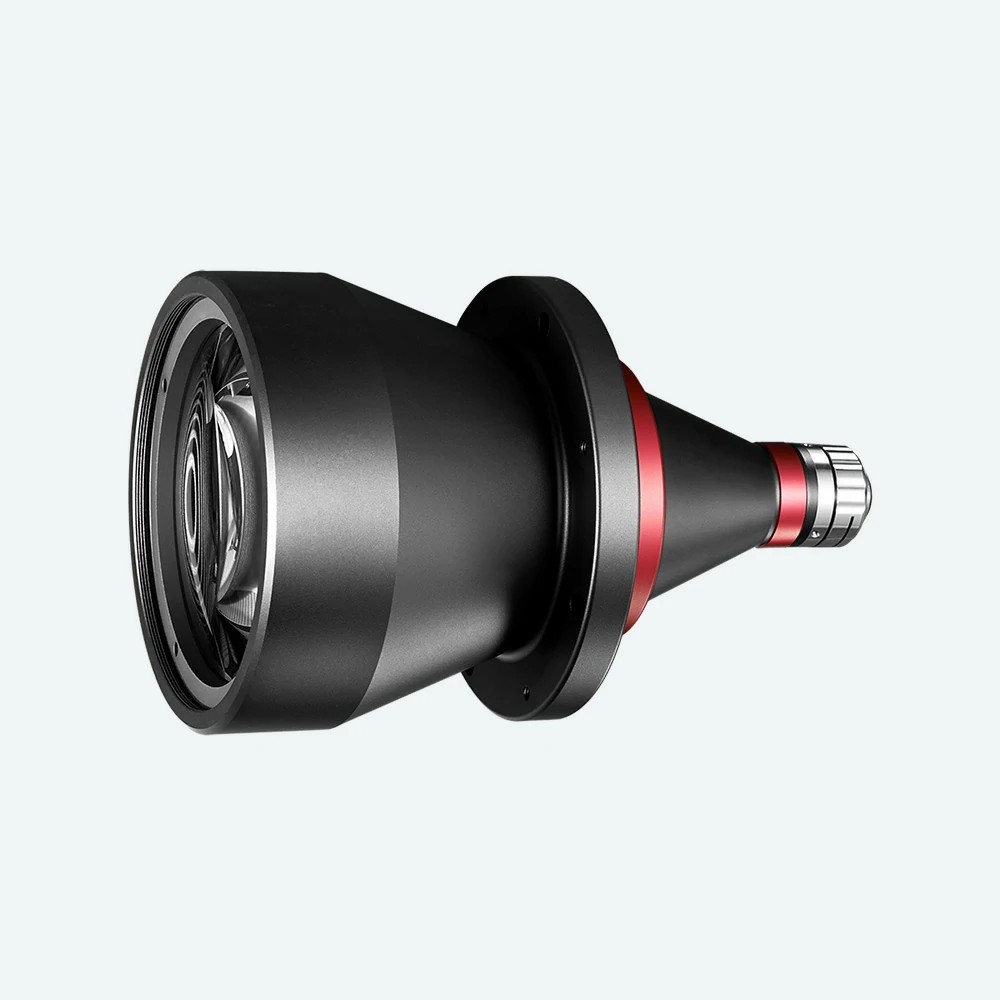

Model NO. |
DTCM125-110-AL |
Image Circle Diameter (Φmm) |
7.2(1/2.5") |
Magnification(x) |
0.066 |
Working Distance(mm) |
263±4 |
NA |
0.0077 |
Type |
Bi-Telecentric |
Mount |
C |
Object Field of View(Φmm) |
110 |
Best Aperture(f/#) |
4.2 |
MTF30 (lp/mm) |
>210 |
Depth of Field(mm) |
±101@F11 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
536±4 |
Length (mm) |
255.1 |
Weight(kg) |
2.7 |
Measured Depth of Field (mm) |
24 |
Filter Screw Size |
M134x0.75 |
Field of View (mm × mm) |
1/3" AR130/RJ33 (4.8x3.6) |
72.7x54.5 |
1/2.5" 9P001/31 (5.7x4.28) |
86.4x64.8 |
Compatible Lighting |
Telecentric LED Lighting |
DTCL-110-xW-y |
Beam Diameter 110mm |

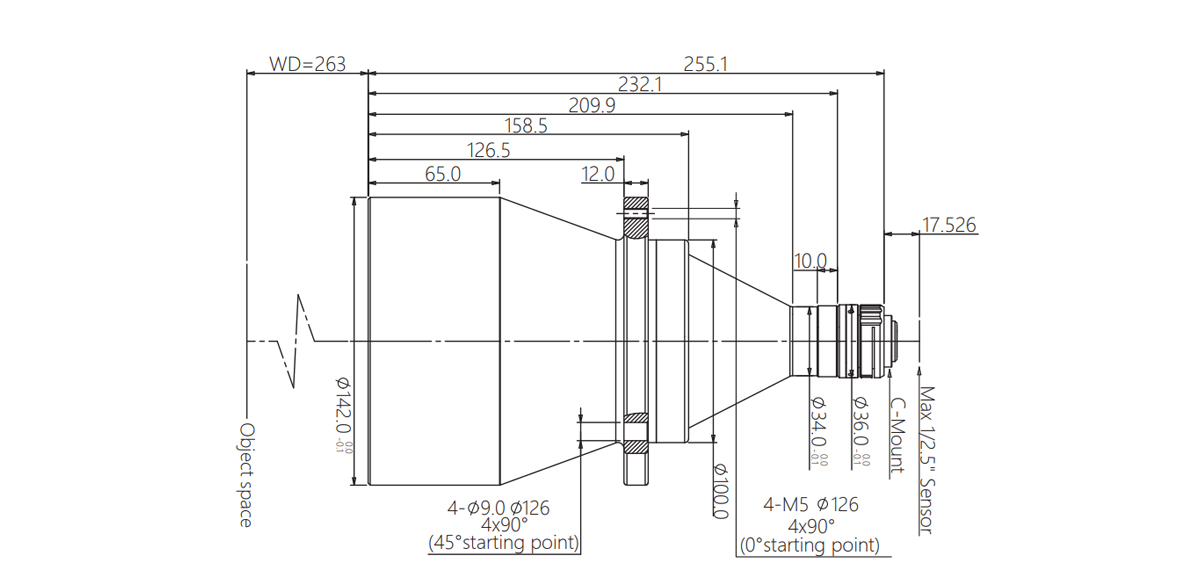

Dimensions
![]()
Naming Rule
![]()
