High Flex Cables: Essential Guide for Industrial Automation & Machine Vision

When building automated systems, the smallest components often determine long-term reliability. Among these critical elements, high flex cables stand out as particularly important—yet they're frequently overlooked until a failure occurs. This comprehensive guide explains what high flex cables are, why they matter, and how to select the right ones for your industrial applications.

What is a High Flex Cable?

A high flex cable is a specialized electrical cable designed to withstand continuous movement and repeated bending without failing. Unlike standard cables, high flex cables are constructed with finer strands of wire, special jacket materials, and unique internal designs that allow them to endure millions of flex cycles while maintaining electrical performance and physical integrity.

These cables are essential components in applications where constant motion is required, such as robotic arms, CNC machines, drag chains, and automated assembly lines. While standard cables might fail after just a few thousand bends, high-quality high flex cables can withstand millions of flex cycles without breaking or degrading electrical performance.

What is the Difference Between Flex Cable and Wire?

The main difference between a flex cable and a wire is that a wire consists of a single conductor, while a flex cable contains multiple conductors bundled together with a protective jacket. Wires are simple, single-strand or multi-strand conductive elements, whereas flex cables are complex assemblies that include multiple wires, insulation for each conductor, shielding layers, and an outer jacket designed to protect the internal components during repeated movement.



Additionally, high flex cables often incorporate special design elements such as:

• Extra-fine stranding of each conductor

• Special low-friction materials between components

• Engineered spacing of internal elements

• Reinforcement layers for tension relief

• Specialized jacket materials that resist abrasion and fatigue



Key Components of High Flex Cables

Understanding the construction of high flex cables helps explain their superior performance in dynamic applications:

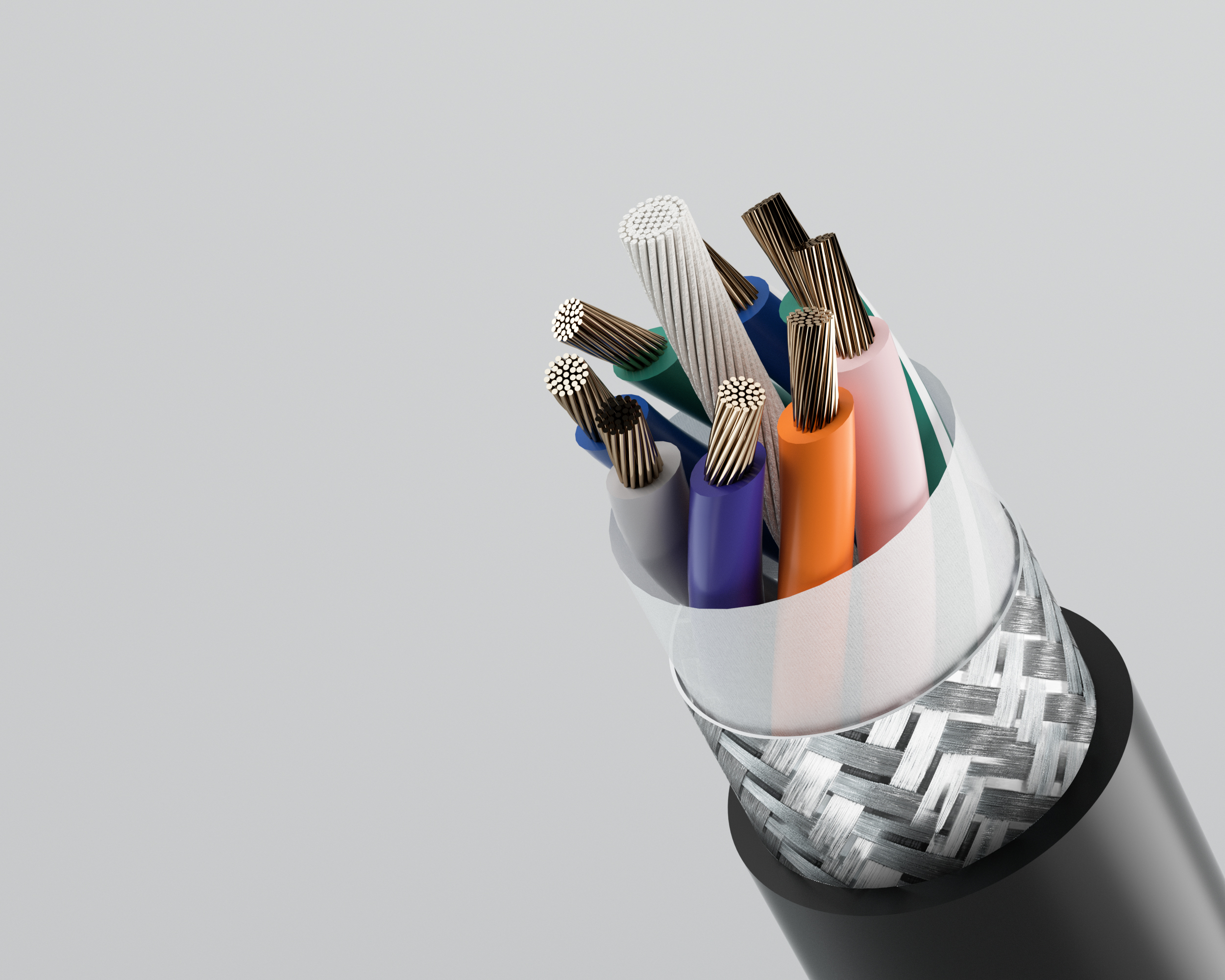

1. Conductor Design

Standard cables often use relatively thick copper strands. In contrast, high flex cables use many more, much finer strands—sometimes hundreds or even thousands of individual copper filaments per conductor. This fine stranding allows the internal wires to move against each other during bending without breaking.

2. Insulation Materials

The insulation around each conductor must:

• Remain flexible in varied temperatures

• Resist cracking during repeated movement

• Maintain electrical properties over time

• Provide consistent performance in harsh environments



Common materials include specialized formulations of:

• Polyurethane (PUR)

• Thermoplastic elastomer (TPE)

• Polyvinyl chloride (PVC) with flex additives

• Teflon® for extreme temperature applications

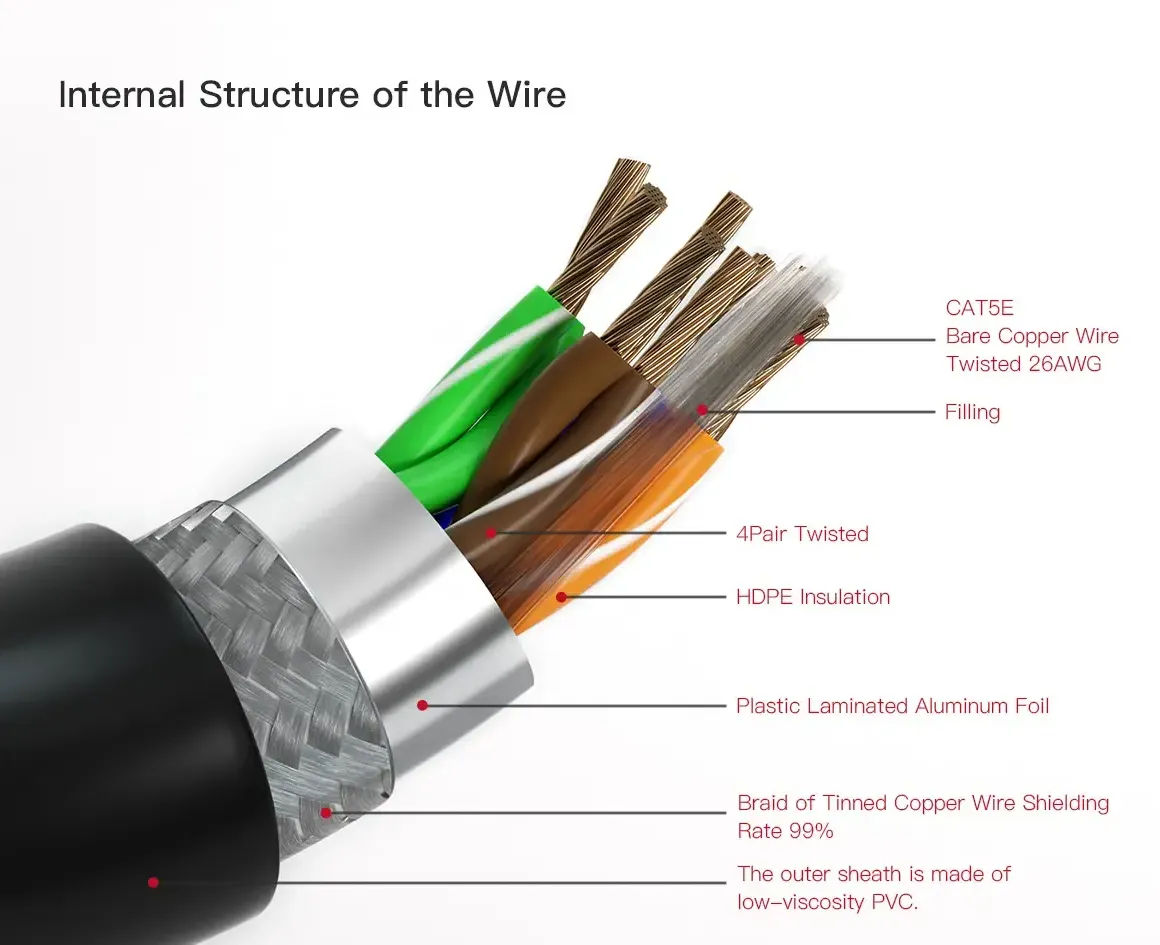

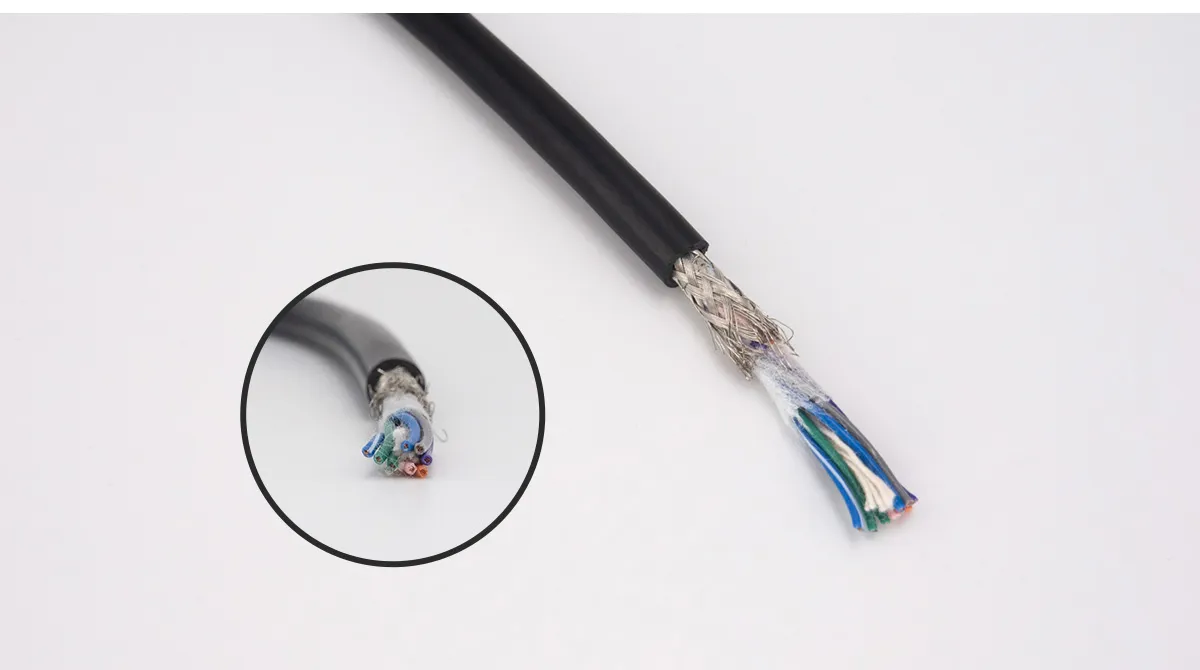

3. Shielding Design

Industrial environments are filled with electromagnetic interference (EMI) that can disrupt sensitive signals. High flex cables often include specialized shielding that must maintain its protective properties while flexing.

Common shielding approaches include:

• Braided copper shields

• Foil shields

• Combination shields (braid + foil)

• Special drain wires

The best high flex cables use shielding designs that prevent gaps from forming during bending, ensuring consistent protection against EMI.



4. Jacket Construction

The outer jacket must protect internal components while enduring:

• Millions of flex cycles

• Abrasion against other machine parts

• Oils, coolants, and chemicals

• Extreme temperatures

• UV exposure (in some applications)



High-quality jackets use materials specifically engineered for dynamic applications, often incorporating self-lubricating compounds that reduce friction during movement.





How High Flex Cables Are Tested

Manufacturers use several standardized tests to verify the performance of high flex cables:

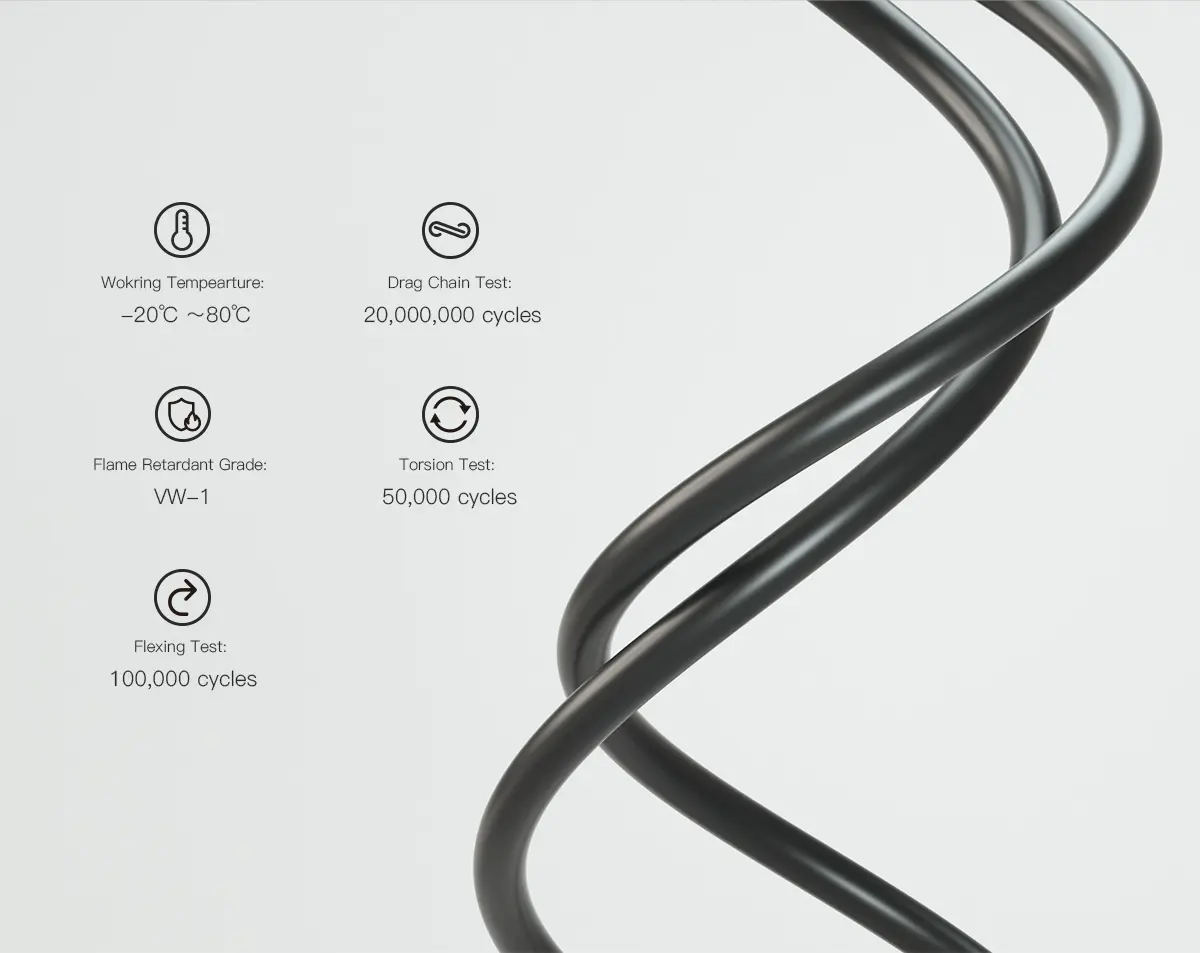

Flex Life Testing

The most important metric for a high flex cable is its flex life—the number of cycles it can withstand before failure. This is typically tested in one of two ways:

1. Bend Radius Testing: The cable is repeatedly bent to a specific radius (often expressed as a multiple of the cable's diameter) and cycled until failure.

2. Torsion Testing: The cable is twisted along its axis through a specific angle for applications where rotation is expected.

Quality high flex cables undergo millions of test cycles before certification, with premium cables surviving 10+ million cycles.



Environmental Testing

Beyond flexibility, these cables must withstand challenging conditions including:

• Temperature Cycling: Exposure to extreme hot and cold temperatures

• Chemical Resistance: Submersion in oils, solvents, and coolants

• Abrasion Resistance: Mechanical wear against surfaces

• UV Testing: For cables used in outdoor applications





Common Applications for High Flex Cables

High flex cables are essential in numerous industrial settings:

Robotic Systems

Robots require cables that can:

• Bend millions of times without failing

• Maintain precise signal integrity for positioning

• Withstand acceleration forces

• Operate in varied environments



A single cable failure can halt an entire production line, making high flex cables a critical reliability component.



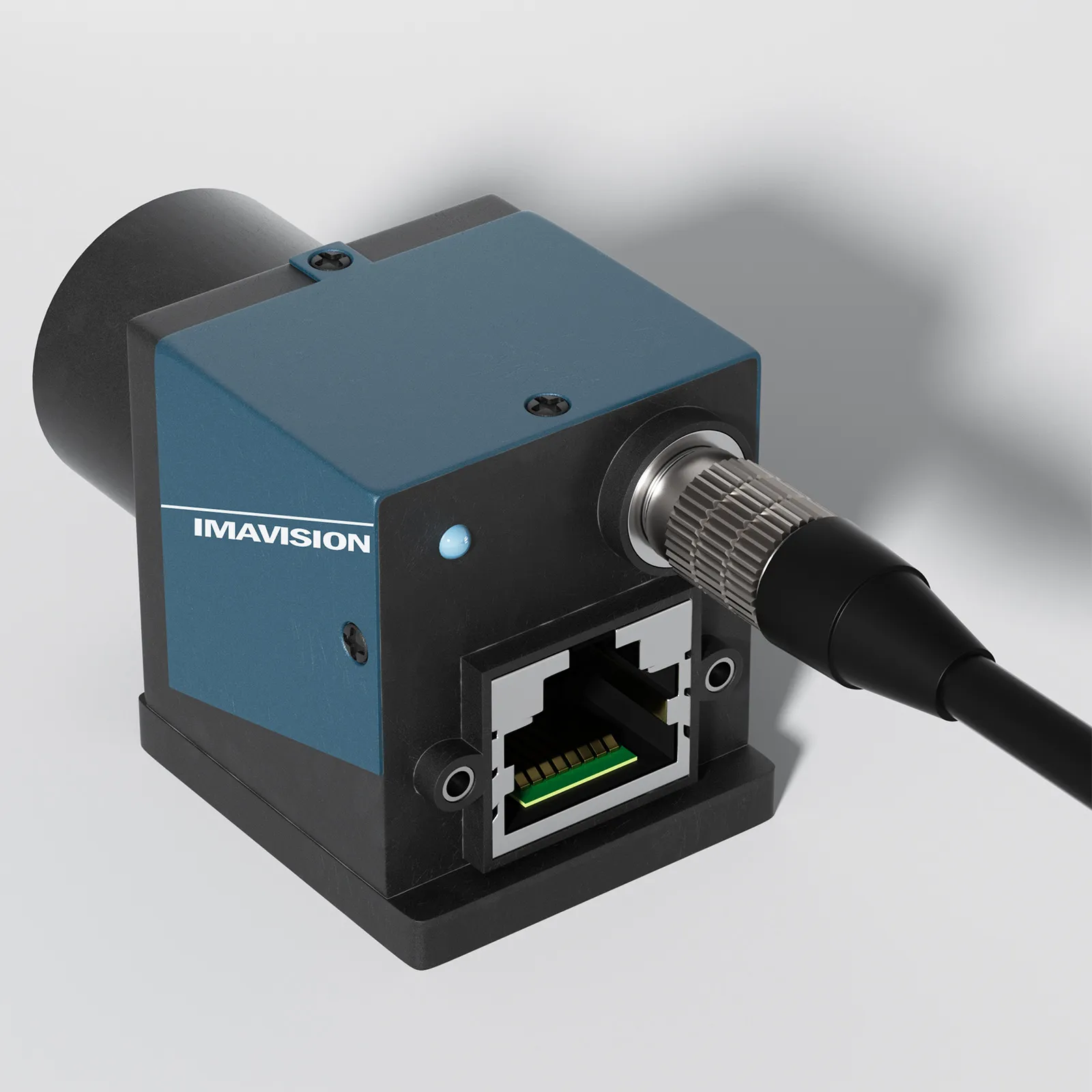

Machine Vision Systems

Modern inspection systems rely on high-resolution cameras with specialized interface requirements. Camera link, GigE Vision, USB3 Vision, and CoaXPress interfaces all require cables that can:

• Maintain stringent signal timing

• Support high data bandwidth

• Resist electromagnetic interference

• Withstand continuous motion in drag chains



The 12-pin camera cables from OKlab offer specialized solutions for these demanding applications, with high flex models tested to over 20 million cycles.



CNC and Motion Control

Computer numerical control (CNC) machines require high flex cables for:

• Tool changers

• Moving gantries

• Rotary tables

• Encoder feedback



These applications combine electrical signals, power delivery, and constant motion—a challenging environment where only specialized high flex cables provide reliable performance.



Automation and Assembly Lines

Modern manufacturing relies on automated systems that operate continuously. High flex cables in these environments must:

• Survive years of constant movement

• Resist damage from nearby operations

• Maintain signal integrity in noisy environments

• Support quick maintenance and replacement



Selecting the Right High Flex Cable

When choosing a high flex cable for industrial applications, consider these critical factors:

1. Flex Cycle Requirements

Estimate how many flex cycles your application will require over its lifetime:

• How many movements per minute?

• How many operating hours per day?

• What's the expected service life in years?

For example, a robot arm moving once per second, operating 24/7 for five years, would require a cable capable of withstanding over 150 million flex cycles. Always select a cable rated well beyond your calculated needs.



2. Bend Radius Limitations

Every high flex cable has a minimum bend radius—the tightest curve it can handle without damage. This is typically specified as a multiple of the cable's diameter:

• Static applications: 4-8× cable diameter

• Dynamic applications: 8-15× cable diameter

Tighter bends dramatically reduce cable life, so never attempt to bend cables beyond their rated minimum radius.



3. Environmental Conditions

Consider all environmental factors:

• Operating temperature range

• Exposure to oils, coolants, or chemicals

• Abrasion potential

• UV exposure

• Water/moisture presence

The right jacket material is crucial—polyurethane offers excellent chemical resistance, while TPE provides superior flexibility in cold environments.



4. Signal Requirements

Different signals have different cable requirements:

• Power cables must handle current without overheating

• Data cables must maintain specific impedance values

• Analog signal cables need proper shielding against interference

• Combined cables need internal separation between power and signal



5. Connector Options

Consider the complete connection system:

• Are connectors rated for the same flex life as the cable?

• Is strain relief properly designed for movement?

• Are connectors properly sealed for the environment?

• Is field replacement possible if needed?



Real-World Example: Industrial Camera Cables

Machine vision systems represent one of the most demanding applications for high flex cables. Consider OKlab's 12-Pin Female to Open Trigger I/O Camera Power High Flex Cable:

• Tested to 20+ million flex cycles: Ensuring long-term reliability

• Double shielding (braid + foil): Provides superior EMI protection

• High-strand-count conductors: Maximize flex life

• Polyurethane jacket: Resists abrasion and industrial chemicals

• Open-end design: Allows custom connections to various control systems



This specialized cable solves the common challenges of machine vision systems:

• Continuous movement in drag chains

• High data integrity requirements

• Need for reliable trigger timing

• Exposure to industrial environments

• Custom integration with control system



Maintaining High Flex Cables for Maximum Life

Even the best high flex cables require proper installation and maintenance:



Installation Best Practices

1. Respect the minimum bend radius: Never force cables into tight bends

2. Provide proper strain relief: Never allow tension to transmit to connectors

3. Use appropriate cable track systems: Maintain proper support throughout movement

4. Separate cables in tracks: Prevent cables from rubbing against each other

5. Allow sufficient length: Never pull cables tight in any position of movement



Preventive Maintenance

1. Regular visual inspection: Look for jacket damage or deformation

2. Scheduled replacement: Replace critical cables before they reach end-of-life

3. Monitor electrical performance: Test signal quality periodically

4. Keep records: Track installation dates and cycle counts

5. Control environmental factors: Minimize exposure to contaminants



Conclusion: The Value of Quality High Flex Cables

The difference between standard cables and true high flex cables becomes apparent when systems must operate continuously for years. While high flex cables typically cost more initially, they deliver tremendous value through:

• Reduced downtime from cable failures

• Lower maintenance costs

• Consistent system performance

• Longer service intervals

• Protected equipment from signal problems



In critical industrial applications, high flex cables aren't just components—they're insurance against costly failures and production losses. By understanding what makes these specialized cables different, you can make informed decisions that improve the reliability and performance of your automated systems.

For applications requiring the highest reliability, consider OKlab's industrial-grade high flex cables, engineered specifically for demanding machine vision and automation requirements.



Looking for high flex cables for your industrial camera systems? Explore OKlab's selection of specialized cables designed for demanding machine vision applications.
