Choosing the correct substrate material for your calibration target is crucial for accurate machine vision system performance. This guide explains the key factors to consider when selecting substrates and breaks down the best options for different lighting conditions and applications.
What is a calibration target substrate?
A calibration target substrate is the base material on which calibration patterns are printed or etched. The substrate affects optical properties like reflectivity, durability, and dimensional stability, all of which impact the accuracy of your machine vision calibration.
How to choose between opaque and transparent substrates
The first decision is whether you need an opaque or transparent substrate, which depends on your lighting setup:
When to choose opaque substrates:
Choose opaque substrates when using front lighting (reflective illumination). With front lighting, light reflects off the target surface back to the camera.

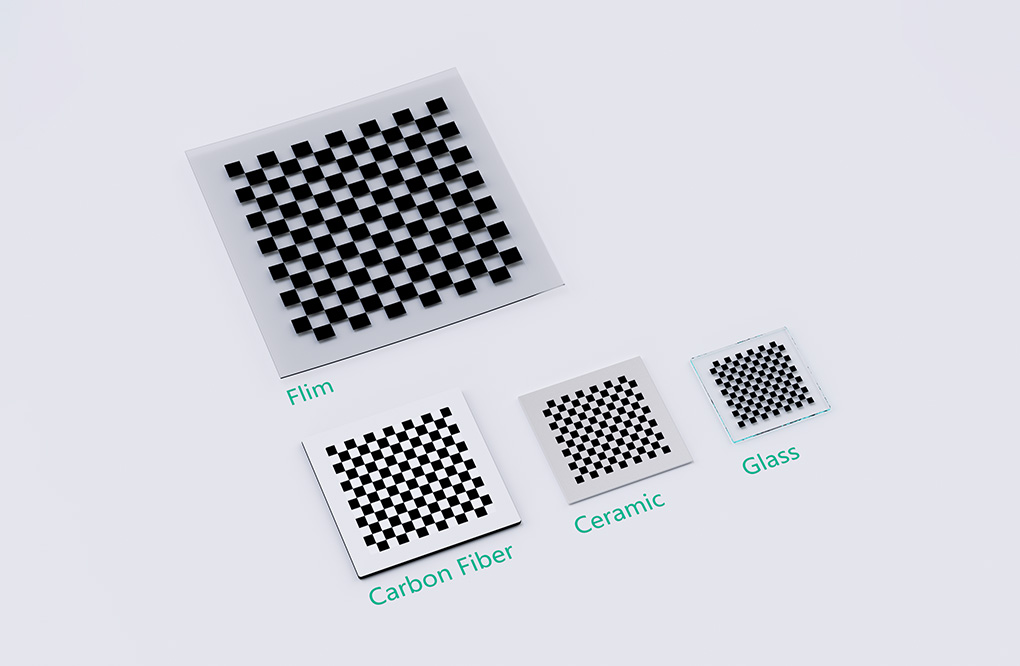

Opaque substrate options include:
-
Ceramic substrates
- Matte ceramic: Non-reflective surface, ideal for reducing glare
- Glossy ceramic: Reflective surface, good when high contrast is needed
-
Paper substrates
- Museum grade paper (100% cotton fiber, acid-free, lignin-free): Affordable option with good durability
- Best for less demanding applications or temporary use
-
White PE (polyethylene) on glass
- Perfectly replaces matte ceramics in many applications
- More cost-effective than full ceramic options
- Combines durability of glass with the optical properties of PE

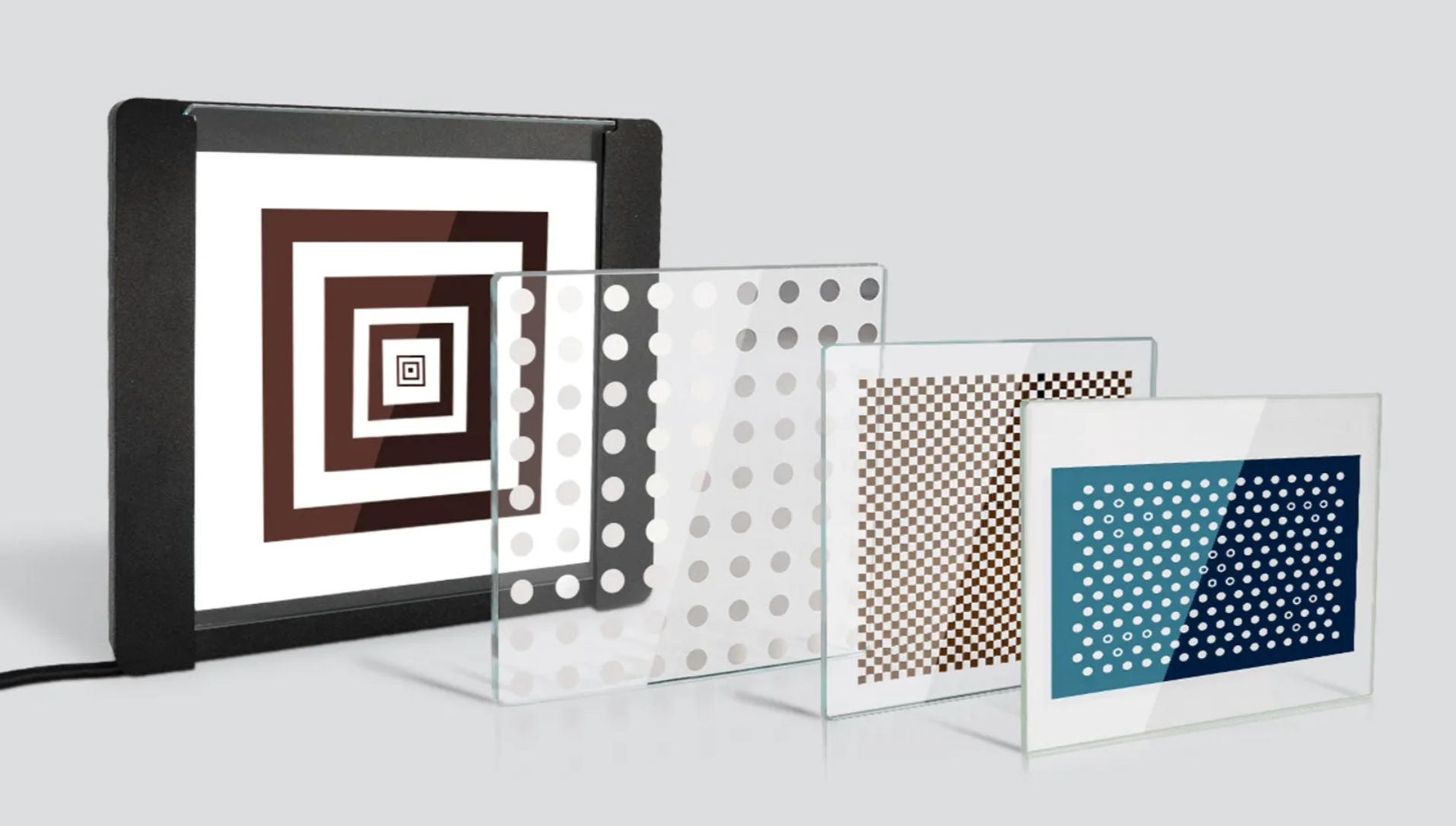

When to choose transparent substrates:
Choose transparent substrates when using back lighting (transmission illumination). With back lighting, light passes through the target before reaching the camera.
Transparent substrate options include:
-
Soda lime glass (float glass)
- Standard option for most applications
- Allows customization with matching backlight illumination
- Good balance of cost and performance
-
Quartz glass (fused silica)
- Better optical performance than soda lime glass
- Higher temperature resistance
- Greater dimensional stability
- Recommended for high-precision applications
- Allows customized matching backlight illumination
-
Film options
- White film: Can be applied to glass without leaving traces
- Translucent cloud ink options available
- Good for applications requiring flexibility or when the target needs to be applied to an existing surface
Key factors to consider when selecting substrate material
1. Operating environment
Consider where your calibration target will be used:
- Temperature fluctuations
- Humidity levels
- Exposure to chemicals
- Mechanical stress
Ceramic and quartz glass offer superior stability in harsh industrial environments.
2. Lighting conditions
Your lighting setup is the most important factor in substrate selection:
- For front lighting (reflective applications): Choose opaque substrates like ceramic or paper
- For back lighting (transmission applications): Choose transparent substrates like glass or film
3. Required accuracy
Higher precision applications demand more stable substrates:
- Highest precision: Ceramic or quartz glass
- Standard precision: Soda lime glass or white PE on glass
- Basic applications: Paper or film
4. Budget considerations
Substrate materials vary significantly in cost:
- Economy options: Paper, standard film
- Mid-range options: Soda lime glass, white PE on glass
- Premium options: Ceramic, quartz glass (fused silica)
Recommended substrate materials by application
For industrial quality control
- Ceramic (matte or glossy depending on lighting conditions)
- Provides durability and stability in factory environments
For laboratory calibration
- Quartz glass for transmission setups
- Ceramic for reflective setups
- Both offer the highest precision and stability
For field use
- White PE on glass or film on glass
- Offers good durability while remaining lightweight
For educational/prototyping
- Paper substrates
- Standard film
- Economical choices for non-critical applications
Best practices for maintaining calibration target substrates
- Store in protective cases when not in use
- Handle with clean gloves to prevent fingerprints and contamination
- Clean according to manufacturer specifications
- Monitor for scratches or damage that might affect calibration accuracy
- For critical applications, verify dimensional stability periodically
Conclusion
Selecting the right substrate material for your calibration target directly impacts the accuracy and reliability of your machine vision system. Start by determining whether you need an opaque substrate for front lighting or a transparent substrate for back lighting, then consider your specific application requirements, environment, and budget.
For the most demanding applications requiring the highest precision, ceramic and quartz glass substrates are recommended. For standard applications, soda lime glass or white PE on glass offer a good balance of performance and cost. For basic or temporary applications, paper or film substrates may be sufficient.
By carefully matching your substrate material to your specific needs, you'll ensure optimal performance of your calibration process and, ultimately, your entire machine vision system.
Need a custom calibration target with the perfect substrate for your specific application? Contact our team of experts who can guide you through the selection process and provide tailored solutions for your machine vision needs.
