1/2" 0.033X Bi-Telecentric Lenses | DTCM120-240H-AL COOLENS®

$11,981.00 USD
Shipping calculated at checkout.
Quantity
1/2" 0.033X Bi-Telecentric Lenses | DTCM120-240H-AL COOLENS®-OKLAB

Description

Model NO. DTCM120-240H-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.033 Working Distance(mm) 410±6
NA 0.0040 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 240
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±397@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 971±6
Length (mm) 543.8 Weight(kg) 19
Measured Depth of Field (mm) 48 Filter Screw Size M272x1.0
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 172.7x129.7
1/2.3" 9J003 (6.44x4.62) 195.2x140.0
Compatible Lighting Telecentric LED Lighting DTCL-240H-xW-y
Beam Diameter 240mm

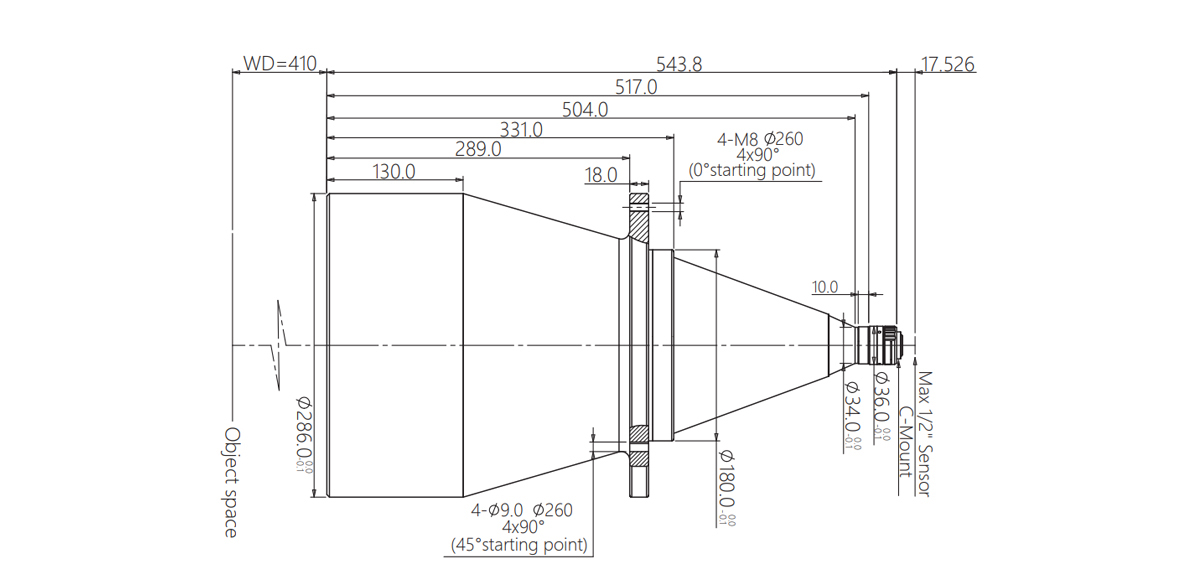

Dimensions

Naming Rule

  • Description

Model NO. DTCM120-240H-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.033 Working Distance(mm) 410±6
NA 0.0040 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 240
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±397@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 971±6
Length (mm) 543.8 Weight(kg) 19
Measured Depth of Field (mm) 48 Filter Screw Size M272x1.0
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 172.7x129.7
1/2.3" 9J003 (6.44x4.62) 195.2x140.0
Compatible Lighting Telecentric LED Lighting DTCL-240H-xW-y
Beam Diameter 240mm



Dimensions

Naming Rule
