| Model NO. |
DTCM120-216-AL |
Image Circle Diameter (Φmm) |
8(1/2") |
| Magnification(x) |
0.037 |
Working Distance(mm) |
372±5 |
| NA |
0.0044 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
216 |
| Best Aperture(f/#) |
4.2 |
MTF30 (lp/mm) |
>210 |
| Depth of Field(mm) |
±321@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
887±5 |
| Length (mm) |
497.9 |
Weight(kg) |
13.7 |
| Measured Depth of Field (mm) |
45 |
Filter Screw Size |
M249x1.0 |
| Field of View (mm × mm) |
1/2.5" 9P001/31 (5.7x4.28) |
154.1x115.7 |
| 1/2.3" 9J003 (6.44x4.62) |
174.1x124.9 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-216-xW-y |
| Beam Diameter 216mm |

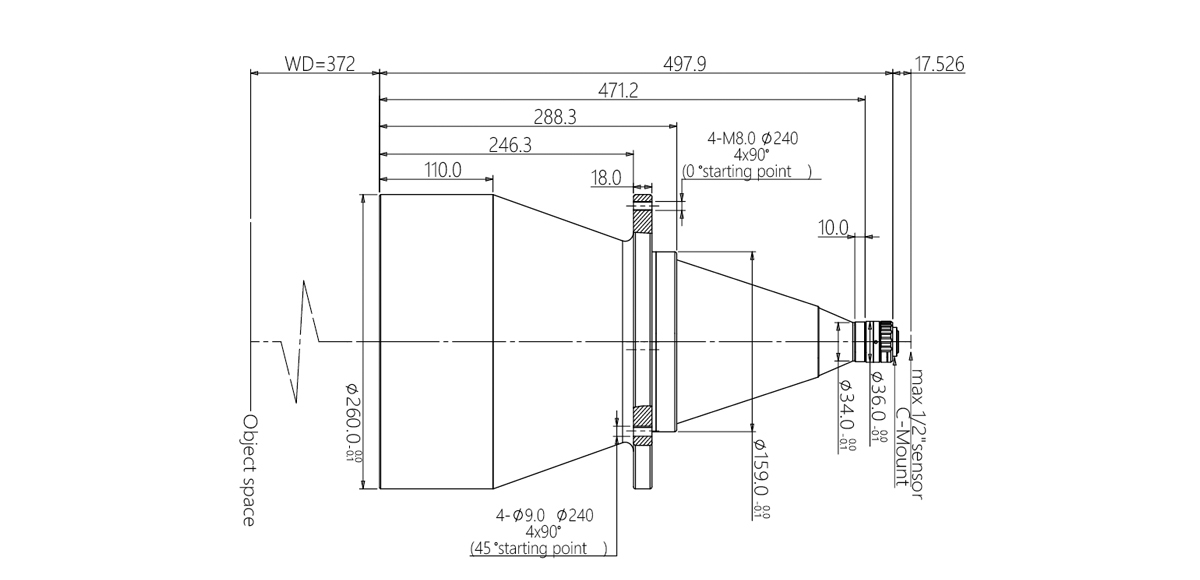

Dimensions
Naming Rule
