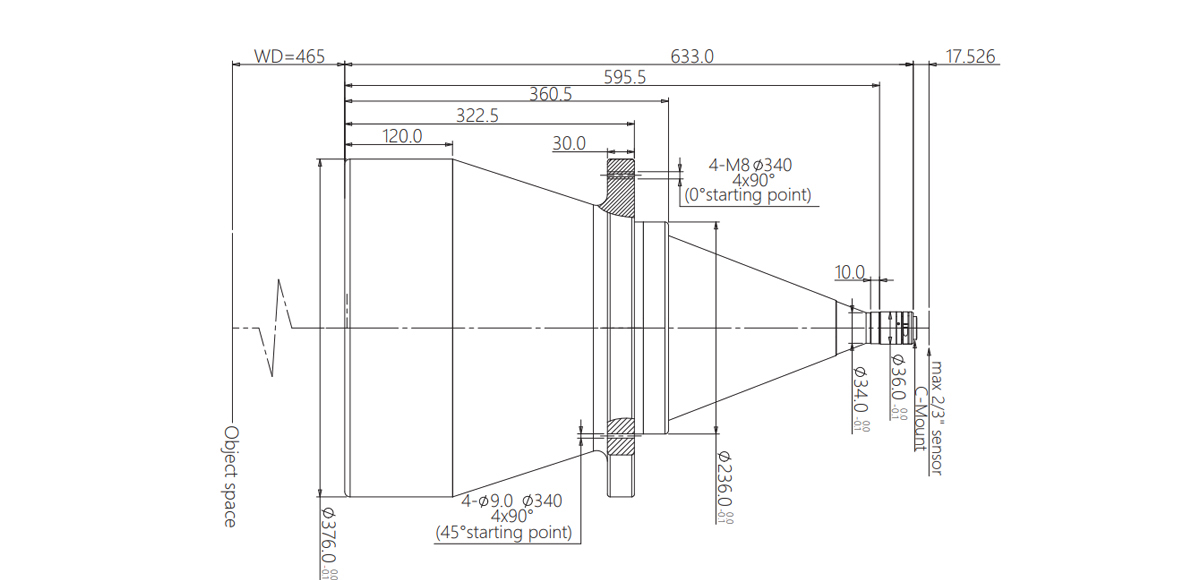

Model NO. | DTCM230-300-AL | Image Circle Diameter (Φmm) | 11.4(2/3") | ||||
Magnification(x) | 0.038 | Working Distance(mm) | 465±6 | ||||
NA | 0.0039 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 300 | ||||
Best Aperture(f/#) | 4.9 | MTF30 (lp/mm) | >180 | ||||
Depth of Field(mm) | ±304@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1116±6 | ||||
Length (mm) | 633 | Weight(kg) | 46.6 | ||||
Measured Depth of Field (mm) | 48 | Filter Screw Size | / | ||||
Field of View (mm × mm) |
1/1.8" EV76C570 (7.2x5.4) | 189.5x142.1 | |||||
1/1.7" IMX226 (7.5x5.6) | 197.4x147.4 | ||||||
2/3" IMX250/264 (8.45x7.1) | 222.4x186.8 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-300-xW-y | |||||
Beam Diameter 300mm |
