2/3" 0.048X Bi-Telecentric Lenses | DTCM230-240H-AL COOLENS®

$12,273.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.048X Bi-Telecentric Lenses | DTCM230-240H-AL COOLENS®-OKLAB

Description

Model NO. DTCM230-240H-AL Image Circle Diameter (Φmm) 11.4(2/3")
Magnification(x) 0.048 Working Distance(mm) 410±6
NA 0.0049 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 240
Best Aperture(f/#) 4.9 MTF30 (lp/mm) >180
Depth of Field(mm) ±195@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 982±6
Length (mm) 554.5 Weight(kg) 19.1
Measured Depth of Field (mm) 37 Filter Screw Size M272x1.0
Field of View (mm × mm)

1/1.8" EV76C570 (7.2x5.4) 150.0x112.5
1/1.7" IMX226 (7.5x5.6) 156.3x116.7
2/3" IMX250/264 (8.45x7.1) 176.0x147.9
Compatible Lighting Telecentric LED Lighting DTCL-216-xW-y
Beam Diameter 216mm

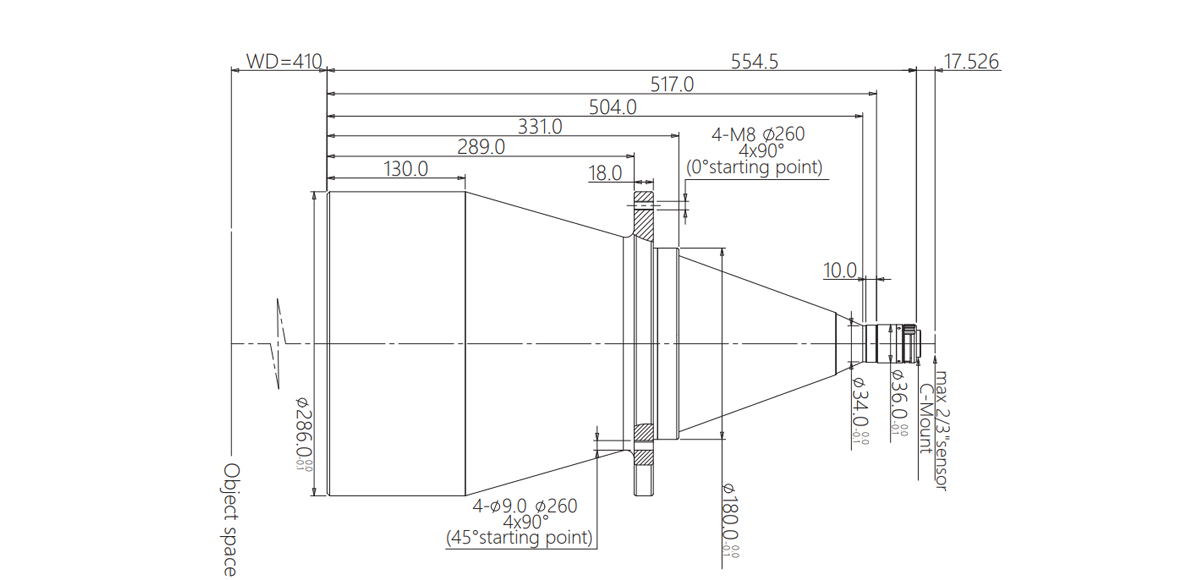

Dimensions

Naming Rule

  • Description

Model NO. DTCM230-240H-AL Image Circle Diameter (Φmm) 11.4(2/3")
Magnification(x) 0.048 Working Distance(mm) 410±6
NA 0.0049 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 240
Best Aperture(f/#) 4.9 MTF30 (lp/mm) >180
Depth of Field(mm) ±195@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 982±6
Length (mm) 554.5 Weight(kg) 19.1
Measured Depth of Field (mm) 37 Filter Screw Size M272x1.0
Field of View (mm × mm)

1/1.8" EV76C570 (7.2x5.4) 150.0x112.5
1/1.7" IMX226 (7.5x5.6) 156.3x116.7
2/3" IMX250/264 (8.45x7.1) 176.0x147.9
Compatible Lighting Telecentric LED Lighting DTCL-216-xW-y
Beam Diameter 216mm



Dimensions

Naming Rule
