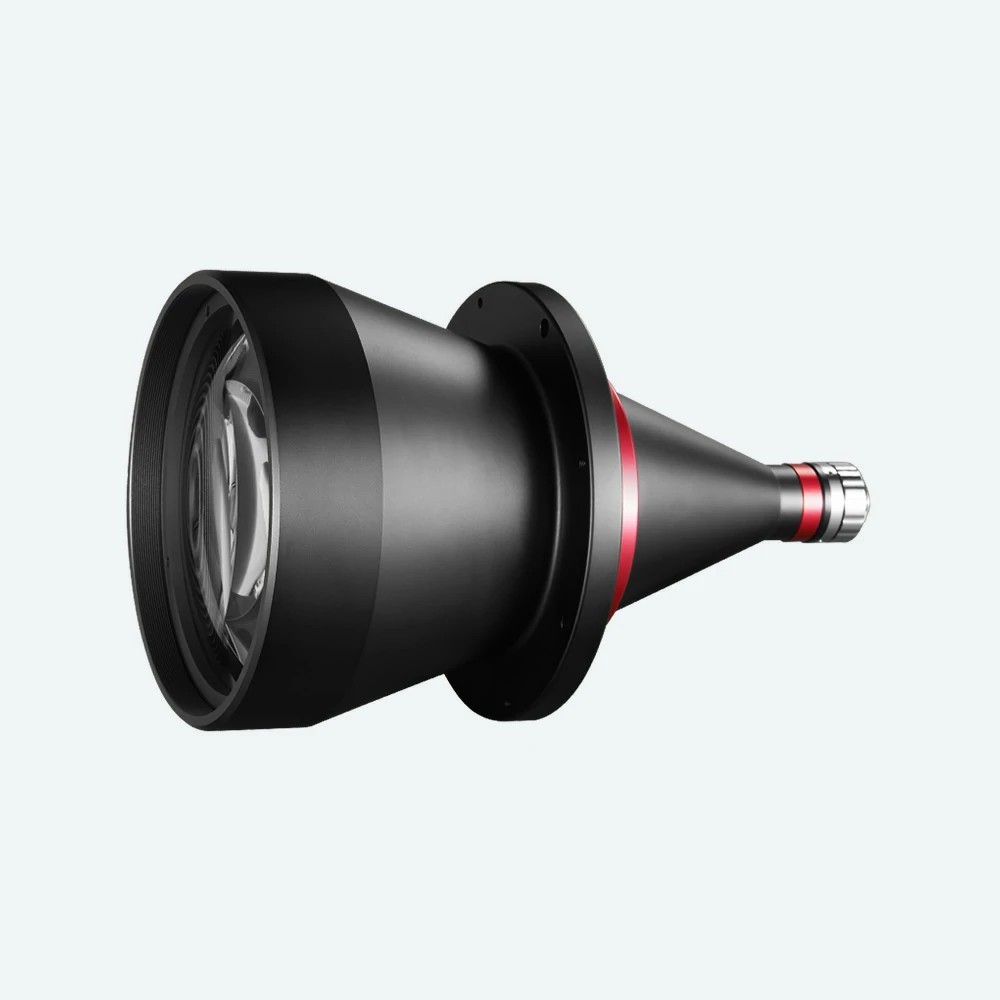

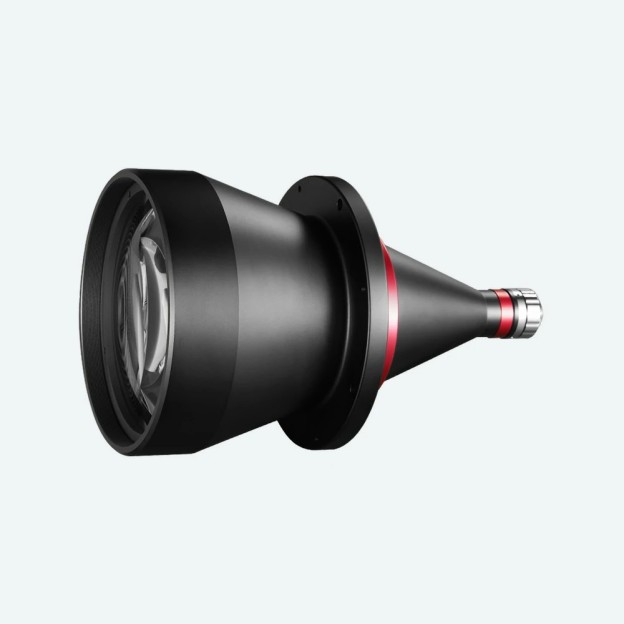

| Model NO. |
DTCM125-136-AL |
Image Circle Diameter (Φmm) |
7.2(1/2.5") |
| Magnification(x) |
0.053 |
Working Distance(mm) |
288±5 |
| NA |
0.0062 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
136 |
| Best Aperture(f/#) |
4.2 |
MTF30 (lp/mm) |
>210 |
| Depth of Field(mm) |
±157@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
646±5 |
| Length (mm) |
340.1 |
Weight(kg) |
4.2 |
| Measured Depth of Field (mm) |
38 |
Filter Screw Size |
M160x0.75 |
| Field of View (mm × mm) |
1/3" AR130/RJ33 (4.8x3.6) |
90.6x67.9 |
| 1/2.5" 9P001/31 (5.7x4.28) |
107.5x80.8 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-136-xW-y |
| Beam Diameter 136mm |

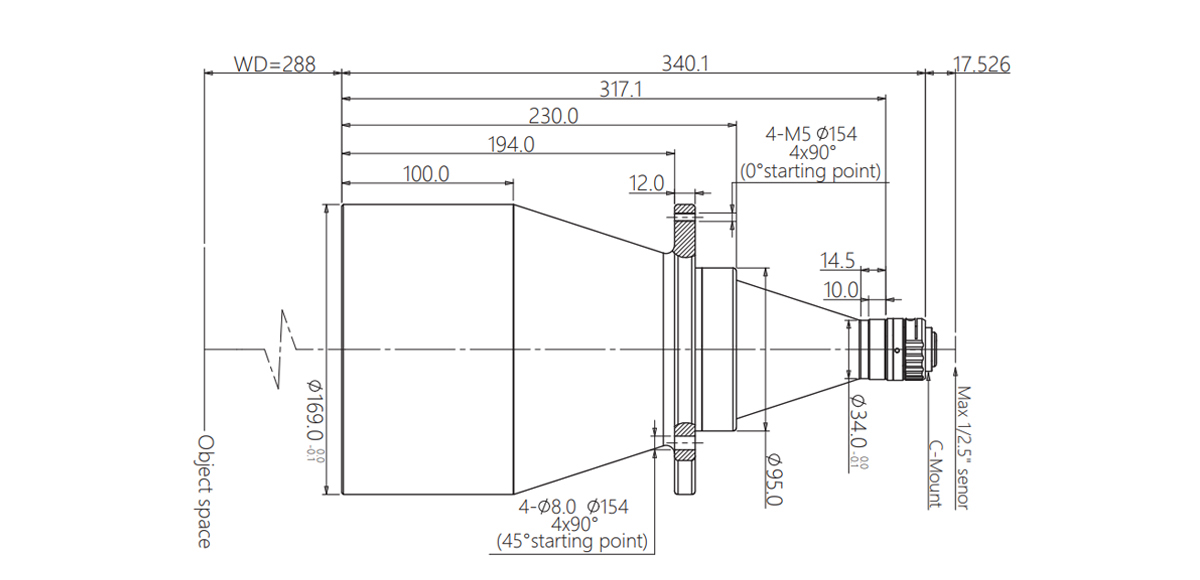

Dimensions
Naming Rule
