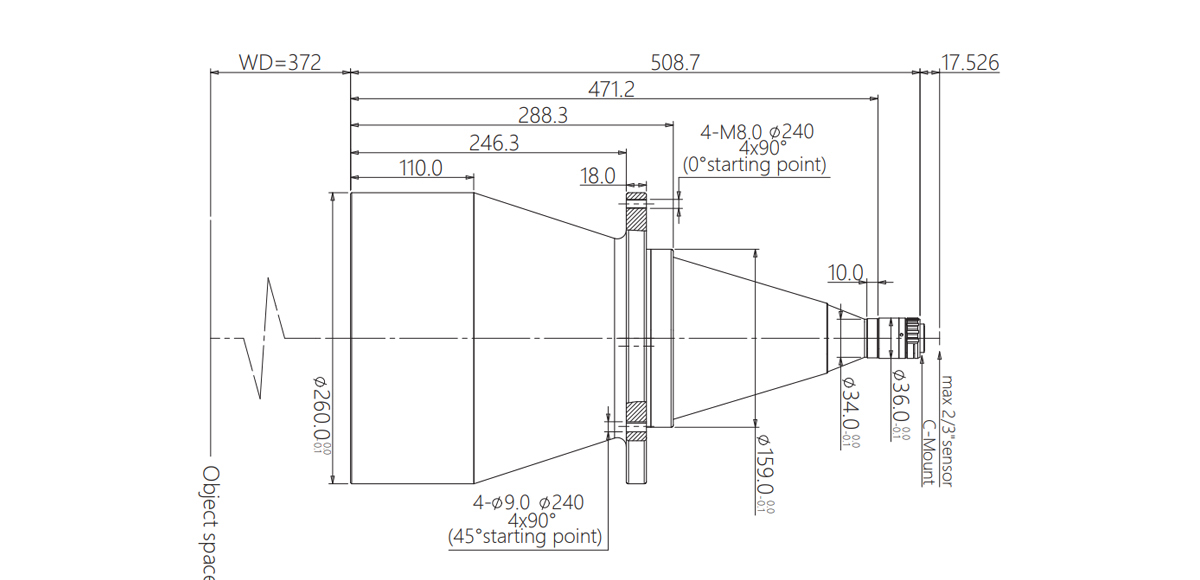

Model NO. | DTCM230-216-AL | Image Circle Diameter (Φmm) | 11.4(2/3") | ||||
Magnification(x) | 0.053 | Working Distance(mm) | 372±5 | ||||
NA | 0.0054 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 216 | ||||
Best Aperture(f/#) | 4.9 | MTF30 (lp/mm) | >180 | ||||
Depth of Field(mm) | ±157@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 898±5 | ||||
Length (mm) | 508.7 | Weight(kg) | 13.8 | ||||
Measured Depth of Field (mm) | 39 | Filter Screw Size | M249x1.0 | ||||
Field of View (mm × mm) |
1/1.8" EV76C570 (7.2x5.4) | 135.8x101.9 | |||||
1/1.7" IMX226 (7.5x5.6) | 141.5x105.7 | ||||||
2/3" IMX250/264 (8.45x7.1) | 159.4x134.0 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-216-xW-y | |||||
Beam Diameter 216mm |
