1/2" 0.067X Bi-Telecentric Lenses | DTCM120-120H-AL COOLENS®

$2,727.00 USD
Shipping calculated at checkout.
Quantity
1/2" 0.067X Bi-Telecentric Lenses | DTCM120-120H-AL COOLENS®-OKLAB

Description

Model NO. DTCM120-120H-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.067 Working Distance(mm) 273±5
NA 0.0794 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 120
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±99@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 561±5
Length (mm) 270.6 Weight(kg) 4.1
Measured Depth of Field (mm) 11 Filter Screw Size M150x1.0
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 85.1x63.9
1/2.3" 9J003 (6.44x4.62) 96.1x69.0
Compatible Lighting Telecentric LED Lighting DTCL-120-xW-y
Beam Diameter 120mm

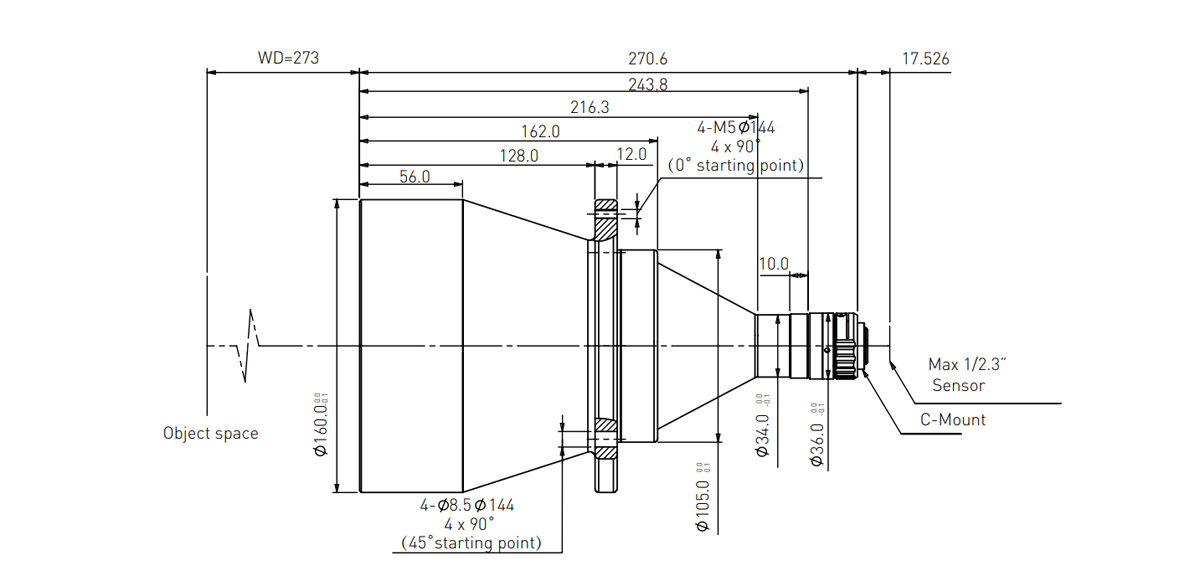

Dimensions

Naming Rule

  • Description

Model NO. DTCM120-120H-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.067 Working Distance(mm) 273±5
NA 0.0794 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 120
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±99@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 561±5
Length (mm) 270.6 Weight(kg) 4.1
Measured Depth of Field (mm) 11 Filter Screw Size M150x1.0
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 85.1x63.9
1/2.3" 9J003 (6.44x4.62) 96.1x69.0
Compatible Lighting Telecentric LED Lighting DTCL-120-xW-y
Beam Diameter 120mm



Dimensions

Naming Rule
