| Model NO. |
DTCM230-170-AL |
Image Circle Diameter (Φmm) |
11.4(2/3") |
| Magnification(x) |
0.067 |
Working Distance(mm) |
318±5 |
| NA |
0.0069 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
170 |
| Best Aperture(f/#) |
4.9 |
MTF30 (lp/mm) |
>180 |
| Depth of Field(mm) |
±98@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
721±5 |
| Length (mm) |
385.9 |
Weight(kg) |
6.5 |
| Measured Depth of Field (mm) |
23 |
Filter Screw Size |
M204x0.75 |
Field of View (mm × mm)
|
1/1.8" EV76C570 (7.2x5.4) |
107.5x80.6 |
| 1/1.7" IMX226 (7.5x5.6) |
111.9x83.6 |
| 2/3" IMX250/264 (8.45x7.1) |
126.1x106.0 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-170-xW-y |
| Beam Diameter 170mm |

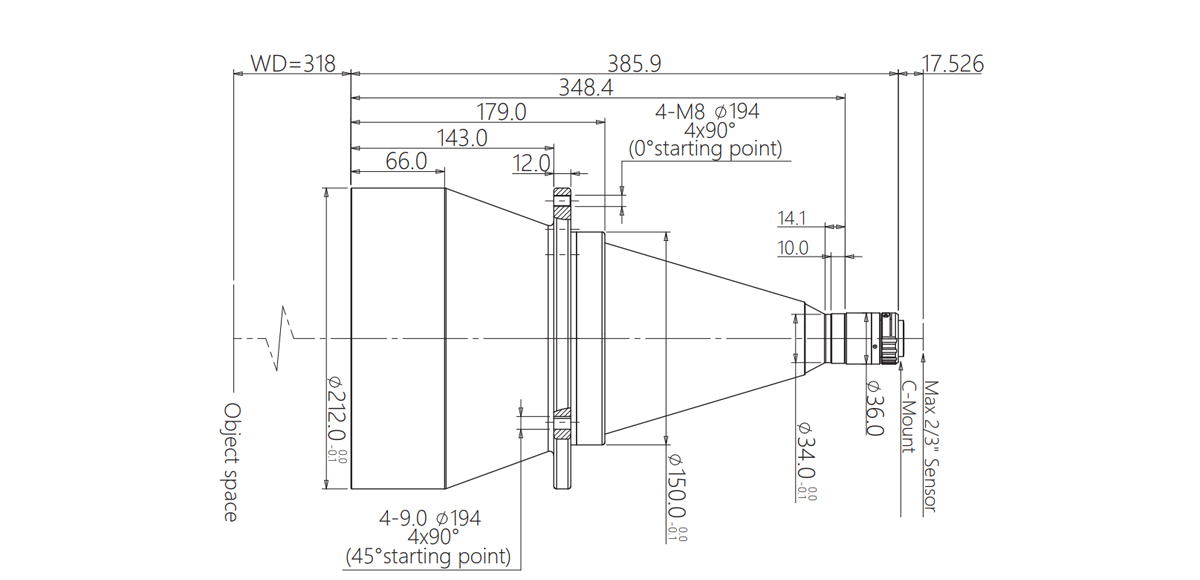

Dimensions
Naming Rule
