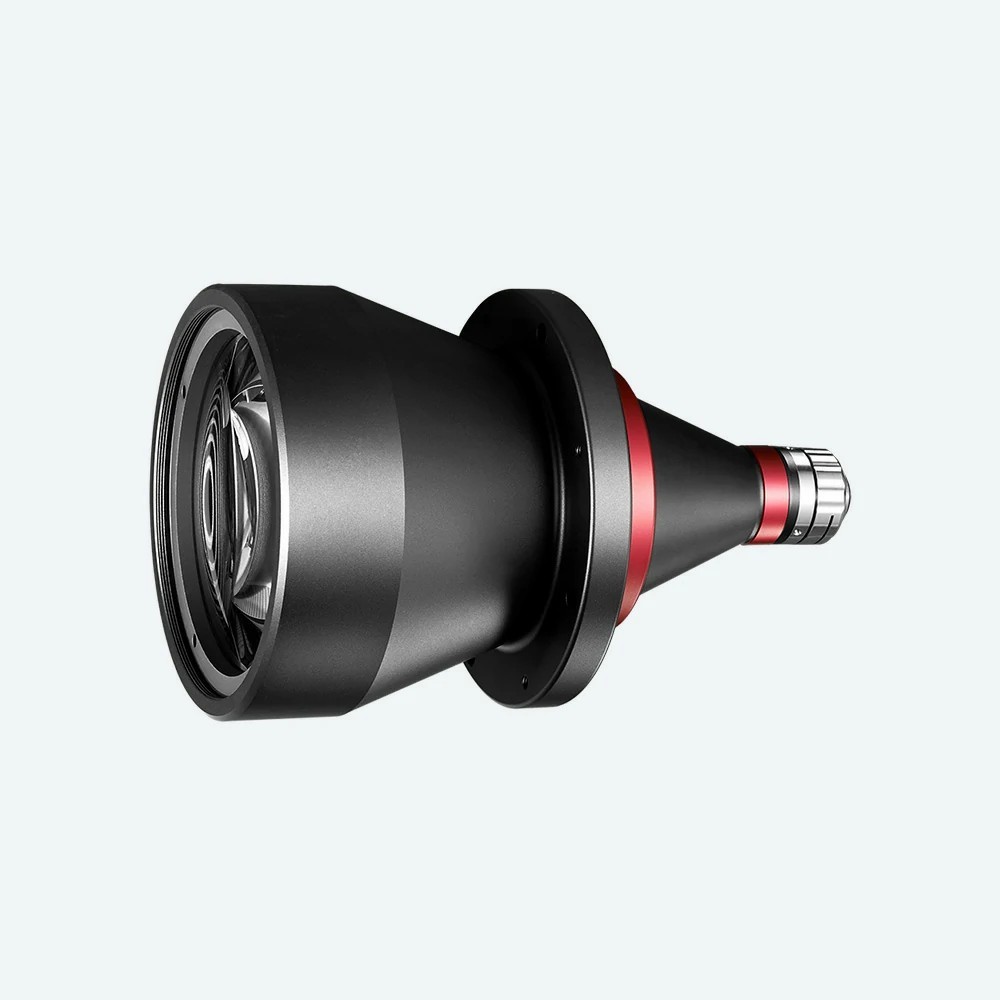

1/2" 0.073X Bi-Telecentric Lenses | DTCM120-110-AL COOLENS®

$2,444.00 USD
Shipping calculated at checkout.
Quantity
1/2" 0.073X Bi-Telecentric Lenses | DTCM120-110-AL COOLENS®-OKLAB

Description

Model NO. DTCM120-110-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.073 Working Distance(mm) 263±4
NA 0.0087 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 110
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±82.6@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 539±4
Length (mm) 258.8 Weight(kg) 2.6
Measured Depth of Field (mm) 11 Filter Screw Size M134x0.75
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 78.1x58.6
1/2.3" 9J003 (6.44x4.62) 88.2x63.3
Compatible Lighting Telecentric LED Lighting DTCL-110-xW-y
Beam Diameter 110mm



Dimensions

Naming Rule

  • Description

Model NO. DTCM120-110-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.073 Working Distance(mm) 263±4
NA 0.0087 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 110
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±82.6@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 539±4
Length (mm) 258.8 Weight(kg) 2.6
Measured Depth of Field (mm) 11 Filter Screw Size M134x0.75
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 78.1x58.6
1/2.3" 9J003 (6.44x4.62) 88.2x63.3
Compatible Lighting Telecentric LED Lighting DTCL-110-xW-y
Beam Diameter 110mm



Dimensions

Naming Rule
