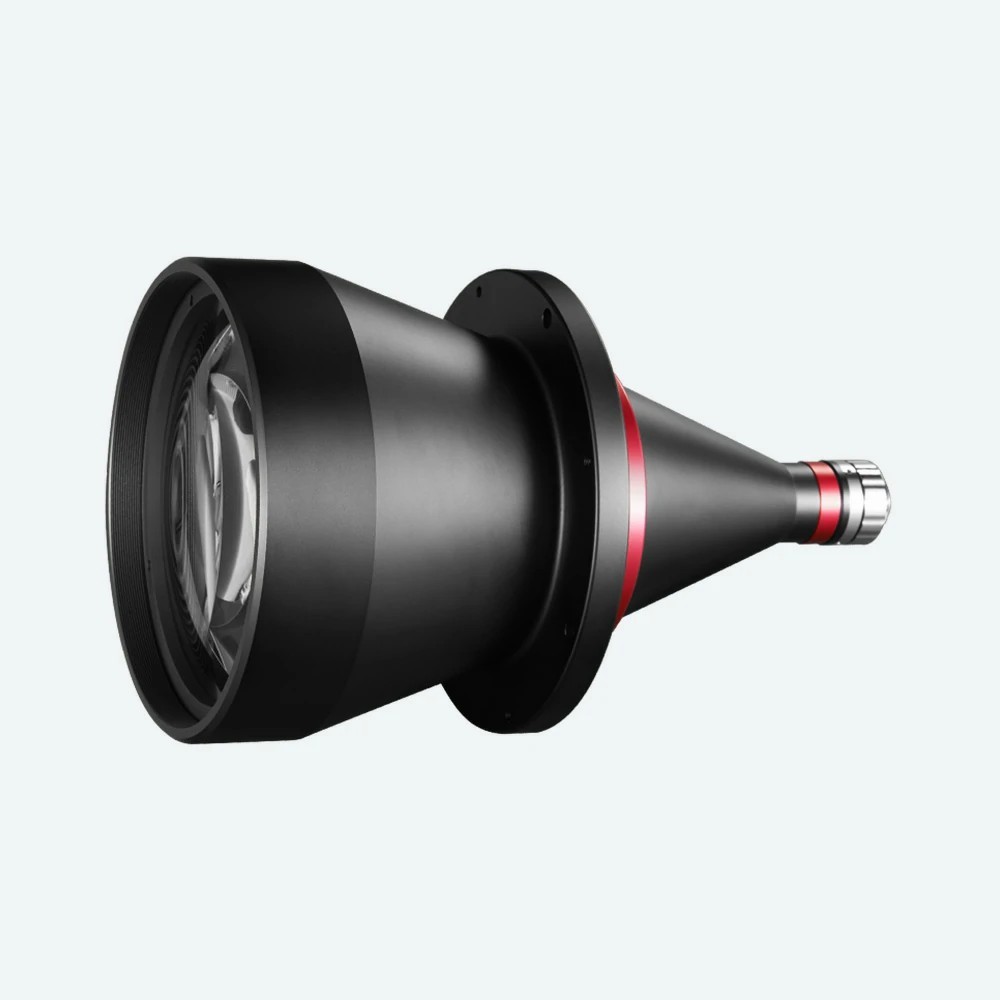

2/3" 0.076X Bi-Telecentric Lenses | DTCM230-150-AL COOLENS®

$3,779.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.076X Bi-Telecentric Lenses | DTCM230-150-AL COOLENS®-OKLAB

Description

Model NO. DTCM230-150-AL Image Circle Diameter (Φmm) 11.4(2/3")
Magnification(x) 0.076 Working Distance(mm) 300±5
NA 0.0078 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 150
Best Aperture(f/#) 4.9 MTF30 (lp/mm) >185
Depth of Field(mm) ±76.1@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 642±5
Length (mm) 324 Weight(kg) 5.7
Measured Depth of Field (mm) 23 Filter Screw Size M178 x1.0
Field of View (mm × mm)

1/1.8" EV76C570 (7.2x5.4) 94.7x71.1
1/1.7" IMX226 (7.5x5.6) 98.7x73.7
2/3" IMX250/264 (8.45x7.1) 111.2x93.4
Compatible Lighting Telecentric LED Lighting DTCL-150-xW-y
Beam Diameter 150mm

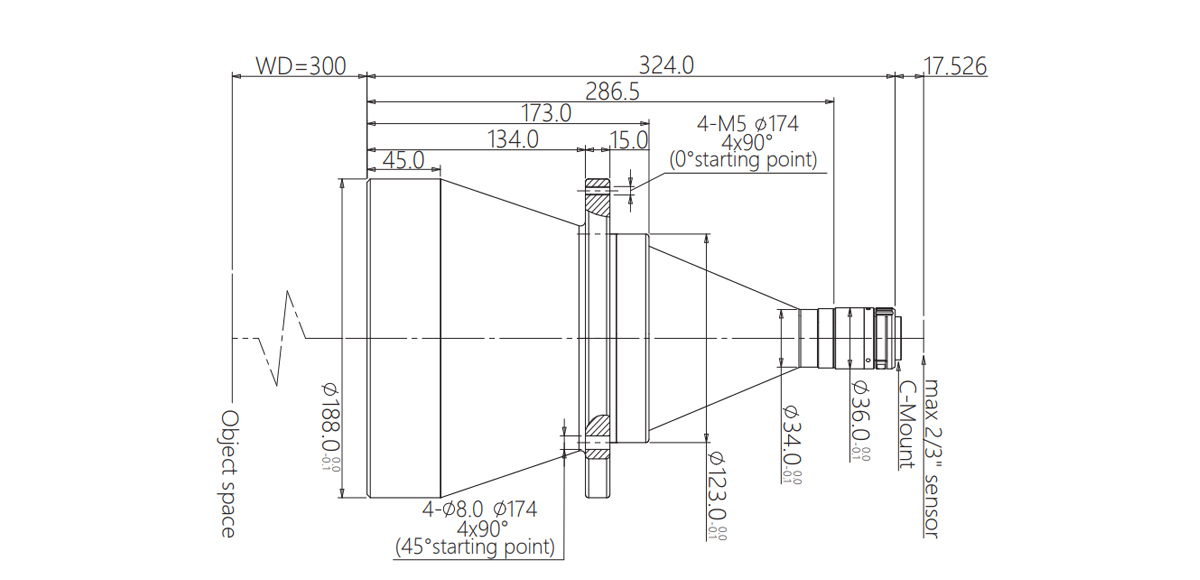

Dimensions

Naming Rule

  • Description

Model NO. DTCM230-150-AL Image Circle Diameter (Φmm) 11.4(2/3")
Magnification(x) 0.076 Working Distance(mm) 300±5
NA 0.0078 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 150
Best Aperture(f/#) 4.9 MTF30 (lp/mm) >185
Depth of Field(mm) ±76.1@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 642±5
Length (mm) 324 Weight(kg) 5.7
Measured Depth of Field (mm) 23 Filter Screw Size M178 x1.0
Field of View (mm × mm)

1/1.8" EV76C570 (7.2x5.4) 94.7x71.1
1/1.7" IMX226 (7.5x5.6) 98.7x73.7
2/3" IMX250/264 (8.45x7.1) 111.2x93.4
Compatible Lighting Telecentric LED Lighting DTCL-150-xW-y
Beam Diameter 150mm



Dimensions

Naming Rule
