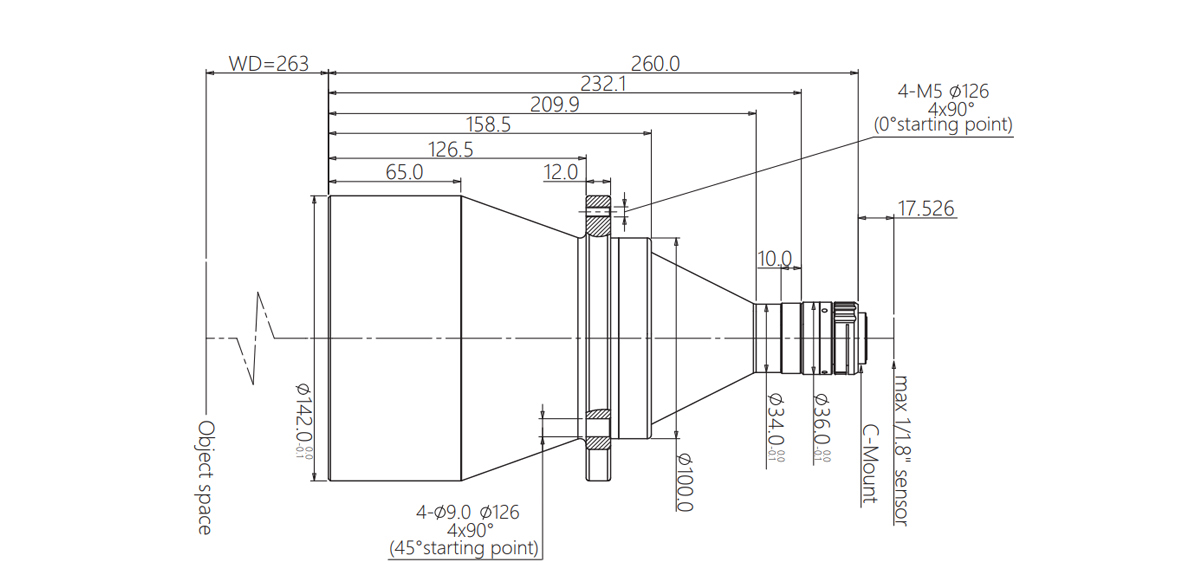

Model NO. | DTCM118-110-AL | Image Circle Diameter (Φmm) | 9.0(1/1.8") | ||||
Magnification(x) | 0.082 | Working Distance(mm) | 263±4 | ||||
NA | 0.0089 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 110 | ||||
Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >200 | ||||
Depth of Field(mm) | ±65.4@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 541±4 | ||||
Length (mm) | 260 | Weight(kg) | 2.7 | ||||
Measured Depth of Field (mm) | 12 | Filter Screw Size | M134x0.75 | ||||
Field of View (mm × mm) | 1/1.8" IMX178 (7.43x4.9) | 90.6x59.8 | |||||
1/1.8" IMX252/265 (7.1x5.3) | 86.6x64.6 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-110-xW-y | |||||
Beam Diameter 110mm |
