1/2.5" 0.09X Bi-Telecentric Lenses | DTCM125-80H-AL COOLENS®

$1,754.00 USD
Shipping calculated at checkout.
Quantity
1/2.5" 0.09X Bi-Telecentric Lenses | DTCM125-80H-AL COOLENS®-OKLAB

Description

Model NO. DTCM125-80H-AL Image Circle Diameter (Φmm) 7.2(1/2.5")
Magnification(x) 0.09 Working Distance(mm) 228±4
NA 0.0106 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 80
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >205
Depth of Field(mm) ±54.3@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 413±4
Length (mm) 167.5 Weight(kg) 1.9
Measured Depth of Field (mm) 15 Filter Screw Size M103x0.75
Field of View (mm × mm) 1/3" AR130/RJ33 (4.8x3.6) 53.3x40.0
1/2.5" 9P001/31 (5.7x4.28) 63.3x47.6
Compatible Lighting Telecentric LED Lighting DTCL-80H-xW-y
Beam Diameter 80mm

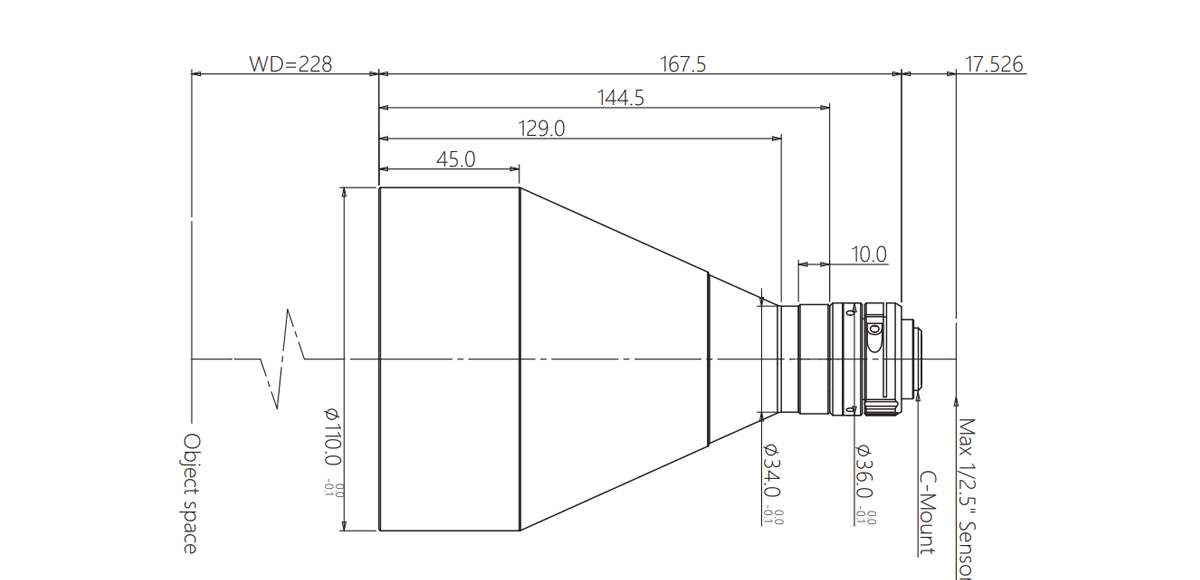

Dimensions

Naming Rule

  • Description

Model NO. DTCM125-80H-AL Image Circle Diameter (Φmm) 7.2(1/2.5")
Magnification(x) 0.09 Working Distance(mm) 228±4
NA 0.0106 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 80
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >205
Depth of Field(mm) ±54.3@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 413±4
Length (mm) 167.5 Weight(kg) 1.9
Measured Depth of Field (mm) 15 Filter Screw Size M103x0.75
Field of View (mm × mm) 1/3" AR130/RJ33 (4.8x3.6) 53.3x40.0
1/2.5" 9P001/31 (5.7x4.28) 63.3x47.6
Compatible Lighting Telecentric LED Lighting DTCL-80H-xW-y
Beam Diameter 80mm



Dimensions

Naming Rule
