Model NO. | DTCM111-190H-AL | Image Circle Diameter (Φmm) | 18.4(1.1") | ||||
Magnification(x) | 0.097 | Working Distance(mm) | 330±5 | ||||
NA | 0.0078 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 190 | ||||
Best Aperture(f/#) | 6.2 | MTF30 (lp/mm) | >150 | ||||
Depth of Field(mm) | ±46.7@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 791±5 | ||||
Length (mm) | 443 | Weight(kg) | 9.7 | ||||
Measured Depth of Field (mm) | 14 | Filter Screw Size | M223x1.0 | ||||
Field of View (mm × mm) |
1" IMX183 (13.13x8.76) | 135.4x90.3 | |||||
1.1" IMX253 (14.19x10.38) | 146.3x107.0 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-190H-xW-y | |||||
Beam Diameter 190mm |

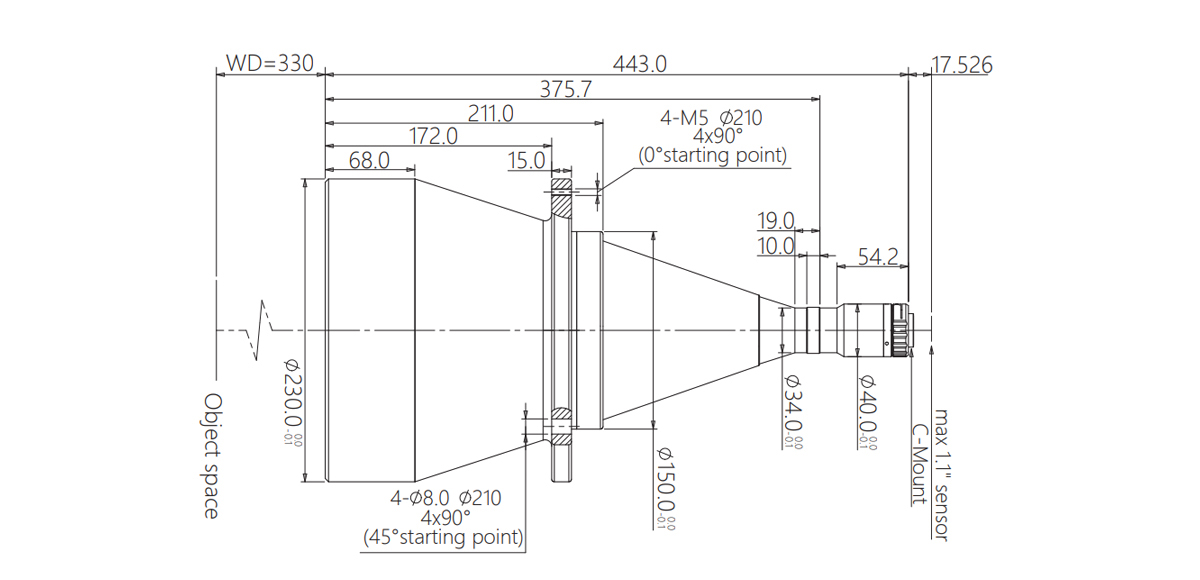

1.1" 0.097X Bi-Telecentric Lenses | DTCM111-190H-AL COOLENS®
$7,110.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM111-190H-AL | Image Circle Diameter (Φmm) | 18.4(1.1") | ||||
Magnification(x) | 0.097 | Working Distance(mm) | 330±5 | ||||
NA | 0.0078 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 190 | ||||
Best Aperture(f/#) | 6.2 | MTF30 (lp/mm) | >150 | ||||
Depth of Field(mm) | ±46.7@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 791±5 | ||||
Length (mm) | 443 | Weight(kg) | 9.7 | ||||
Measured Depth of Field (mm) | 14 | Filter Screw Size | M223x1.0 | ||||
Field of View (mm × mm) |
1" IMX183 (13.13x8.76) | 135.4x90.3 | |||||
1.1" IMX253 (14.19x10.38) | 146.3x107.0 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-190H-xW-y | |||||
Beam Diameter 190mm |
