Model NO. | DTCM175-300-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
Magnification(x) | 0.097 | Working Distance(mm) | 465±6 | ||||
NA | 0.0071 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 300 | ||||
Best Aperture(f/#) | 8.5 | MTF30 (lp/mm) | >105 | ||||
Depth of Field(mm) | ±68@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1181±6 | ||||
Length (mm) | 704.3 | Weight(kg) | 47.1 | ||||
Measured Depth of Field (mm) | 20 | Filter Screw Size | / | ||||
Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 232.3x174.2 | |||||
1.75" PYTHON16k (18.43x18.43) | 190.0x190.0 | ||||||
1.75" LineScan-4k (28.8mm) | 296.9mm | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-300-xW-y | |||||
Beam Diameter 300mm |

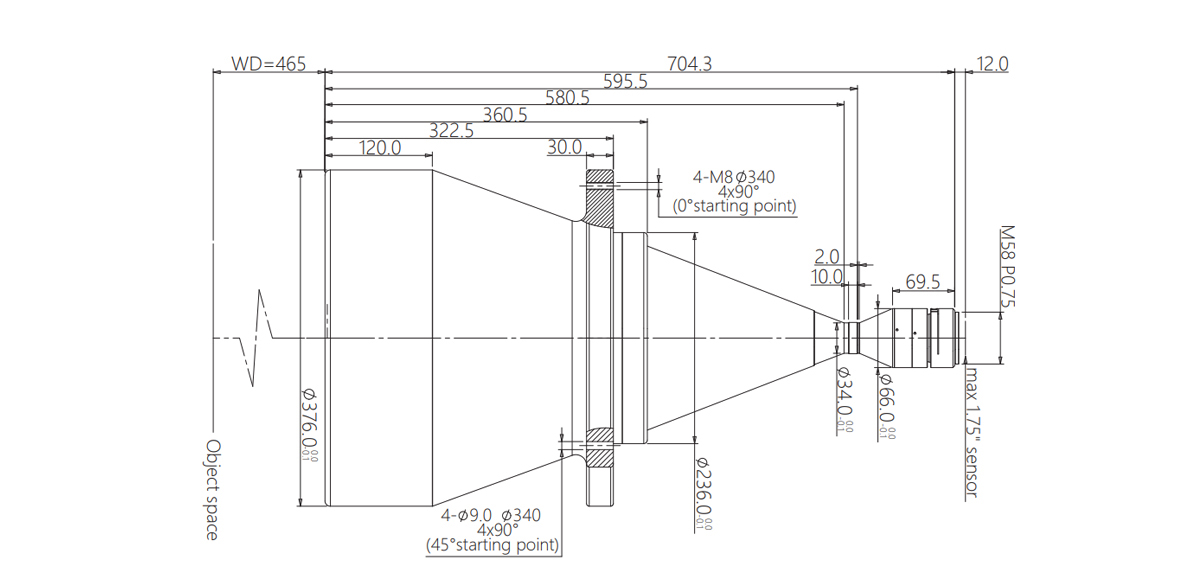

1.75" 0.097X Bi-Telecentric Lenses | DTCM175-300-M58-AL COOLENS®
$20,066.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM175-300-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
Magnification(x) | 0.097 | Working Distance(mm) | 465±6 | ||||
NA | 0.0071 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 300 | ||||
Best Aperture(f/#) | 8.5 | MTF30 (lp/mm) | >105 | ||||
Depth of Field(mm) | ±68@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1181±6 | ||||
Length (mm) | 704.3 | Weight(kg) | 47.1 | ||||
Measured Depth of Field (mm) | 20 | Filter Screw Size | / | ||||
Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 232.3x174.2 | |||||
1.75" PYTHON16k (18.43x18.43) | 190.0x190.0 | ||||||
1.75" LineScan-4k (28.8mm) | 296.9mm | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-300-xW-y | |||||
Beam Diameter 300mm |
