Model NO. | DTCM430H-240H-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.098 | Working Distance(mm) | 410±6 | ||||
NA | 0.0107 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 240 | ||||
Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >174 | ||||
Depth of Field(mm) | ±82.7@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1027±6 | ||||
Length (mm) | 605.1 | Weight(kg) | 19.6 | ||||
Measured Depth of Field (mm) | / | Filter Screw Size | M272x1.0 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 182.2x146.1 | |||||
4/3" PYTHON 12K (18.43x13.82) | 188.1x141.0 | ||||||
4/3" CMV8000 (18.48x13.73) | 188.6x140.1 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-240H-xW-y | |||||
Beam Diameter 240mm |

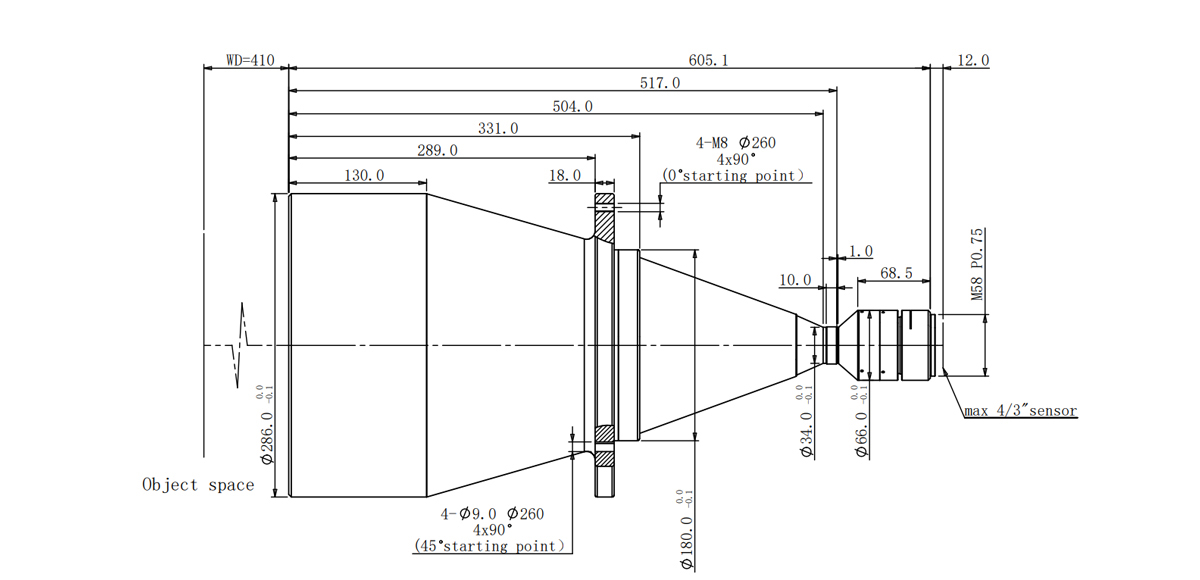

4/3" 0.098X Bi-Telecentric Lenses | DTCM430H-240H-M58-AL COOLENS®
$14,055.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM430H-240H-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.098 | Working Distance(mm) | 410±6 | ||||
NA | 0.0107 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 240 | ||||
Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >174 | ||||
Depth of Field(mm) | ±82.7@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1027±6 | ||||
Length (mm) | 605.1 | Weight(kg) | 19.6 | ||||
Measured Depth of Field (mm) | / | Filter Screw Size | M272x1.0 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 182.2x146.1 | |||||
4/3" PYTHON 12K (18.43x13.82) | 188.1x141.0 | ||||||
4/3" CMV8000 (18.48x13.73) | 188.6x140.1 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-240H-xW-y | |||||
Beam Diameter 240mm |
