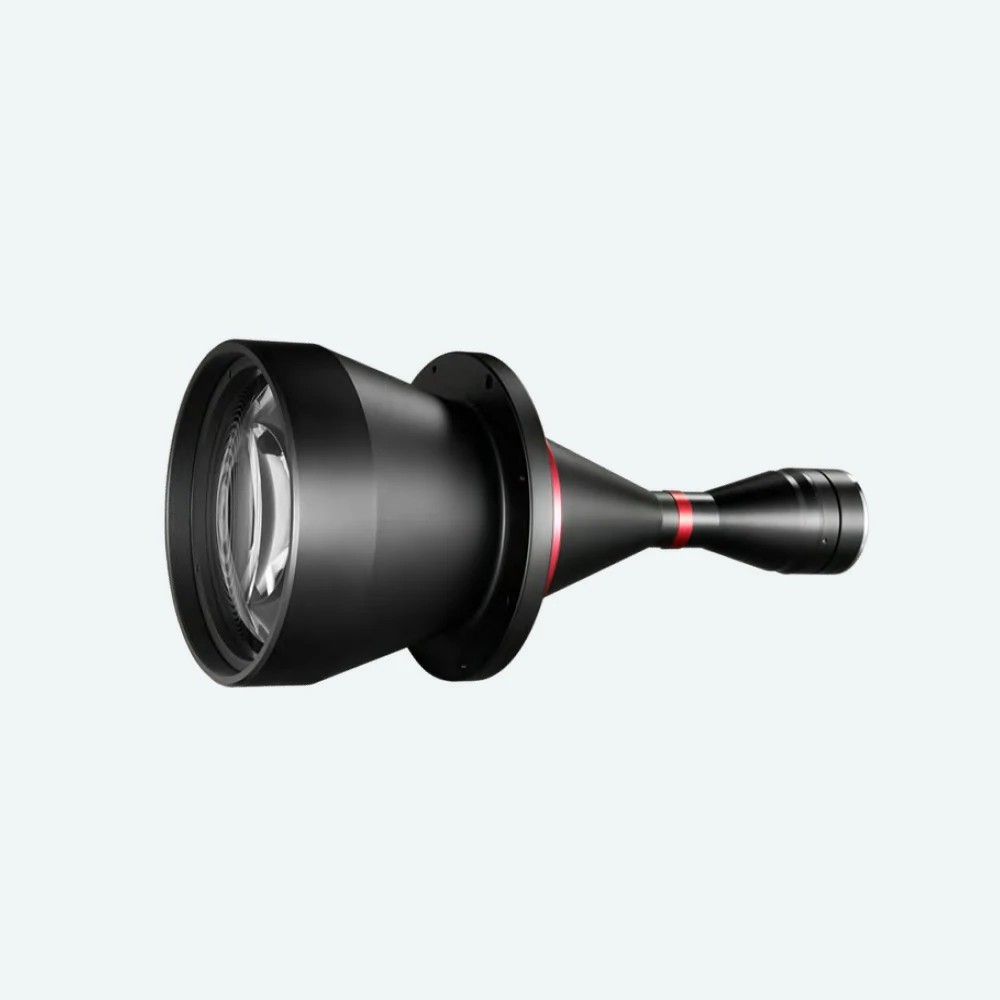

| Model NO. |
DTCM430H-216-M58-AL |
Image Circle Diameter (Φmm) |
23.6(4/3") |
| Magnification(x) |
0.109 |
Working Distance(mm) |
372±5 |
| NA |
0.0118 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
216 |
| Best Aperture(f/#) |
4.6 |
MTF30 (lp/mm) |
>186 |
| Depth of Field(mm) |
±53.6@F16 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
943±5 |
| Length (mm) |
559.3 |
Weight(kg) |
14.2 |
| Measured Depth of Field (mm) |
11 |
Filter Screw Size |
M249x1.0 |
Field of View (mm × mm)
|
4/3" Keyence 21M (17.86x14.32) |
163.9x131.4 |
| 4/3" PYTHON 12K (18.43x13.82) |
169.1x126.8 |
| 4/3" CMV8000 (18.48x13.73) |
169.5x125.9 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-216-xW-y |
| Beam Diameter 216mm |
Dimensions
Naming Rule
