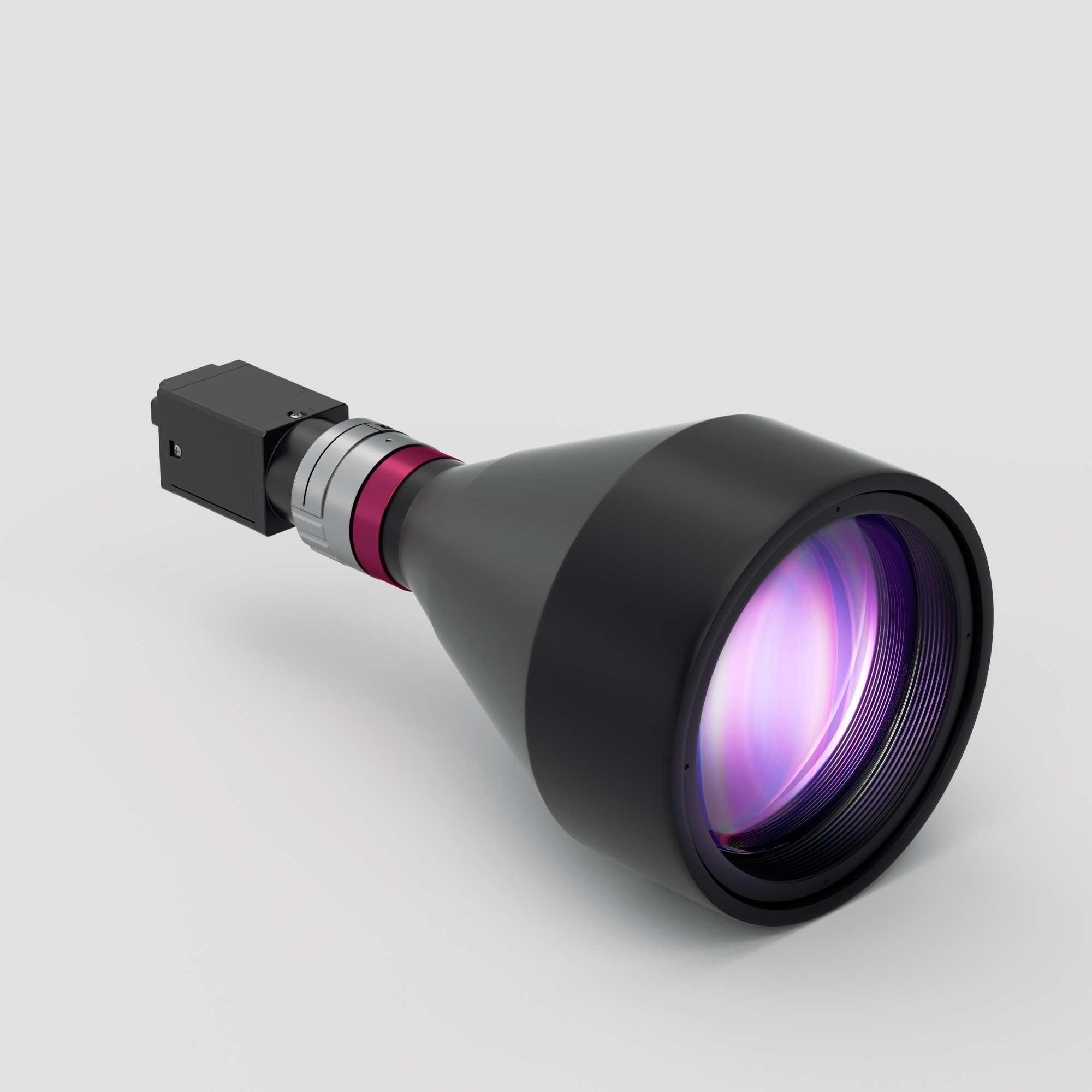

1/1.8" 0.113X Bi-Telecentric Lenses | DTCM118-80H-AL COOLENS®

$1,754.00 USD
Shipping calculated at checkout.
Quantity
1/1.8" 0.113X Bi-Telecentric Lenses | DTCM118-80H-AL COOLENS®

Description

Model NO. DTCM118-80H-AL Image Circle Diameter (Φmm) 9.0(1/1.8")
Magnification(x) 0.113 Working Distance(mm) 228±4
NA 0.0122 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 80
Best Aperture(f/#) 4.6 MTF30 (lp/mm) >195
Depth of Field(mm) ±34.8@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 418±4
Length (mm) 172.4 Weight(kg) 1.9
Measured Depth of Field (mm) 10 Filter Screw Size M103x0.75
Field of View (mm × mm) 1/1.8" IMX178 (7.43x4.9) 65.8x43.4
1/1.8" IMX252/265 (7.1x5.3) 62.8x46.9
Compatible Lighting Telecentric LED Lighting DTCL-80H-xW-y
Beam Diameter 80mm

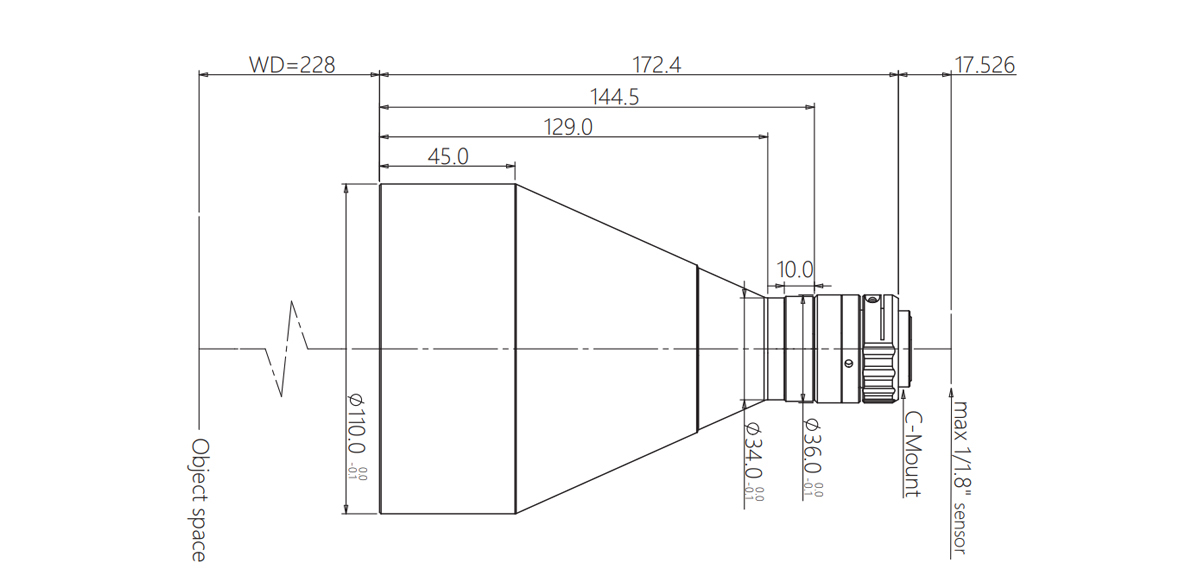

Dimensions

Naming Rule

  • Description

Model NO. DTCM118-80H-AL Image Circle Diameter (Φmm) 9.0(1/1.8")
Magnification(x) 0.113 Working Distance(mm) 228±4
NA 0.0122 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 80
Best Aperture(f/#) 4.6 MTF30 (lp/mm) >195
Depth of Field(mm) ±34.8@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 418±4
Length (mm) 172.4 Weight(kg) 1.9
Measured Depth of Field (mm) 10 Filter Screw Size M103x0.75
Field of View (mm × mm) 1/1.8" IMX178 (7.43x4.9) 65.8x43.4
1/1.8" IMX252/265 (7.1x5.3) 62.8x46.9
Compatible Lighting Telecentric LED Lighting DTCL-80H-xW-y
Beam Diameter 80mm



Dimensions

Naming Rule
