Model NO. | DTCM125-64H-AL | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
Magnification(x) | 0.113 | Working Distance(mm) | 158±3 | ||||
NA | 0.0133 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 64 | ||||
Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >200 | ||||
Depth of Field(mm) | ±34.8@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 333±3 | ||||

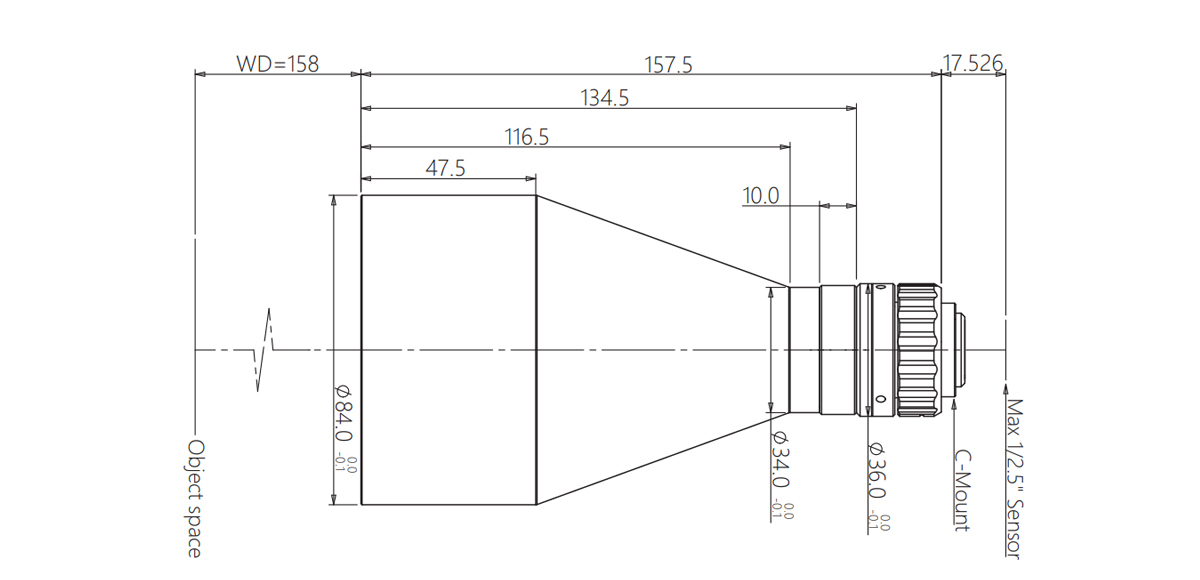

Length (mm) | 157.5 | Weight(kg) | 0.8 | ||||
Measured Depth of Field (mm) | 8.6 | Filter Screw Size | M79x0.75 | ||||
Field of View (mm × mm) | 1/3" AR130/RJ33 (4.8x3.6) | 42.5x31.9 | |||||
1/2.5" 9P001/31 (5.7x4.28) | 50.4x37.9 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-64H-xW-y | |||||
Beam Diameter 64mm |
1/2.5" 0.113X Bi-Telecentric Lenses | DTCM125-64H-AL COOLENS®
$1,326.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM125-64H-AL | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
Magnification(x) | 0.113 | Working Distance(mm) | 158±3 | ||||
NA | 0.0133 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 64 | ||||
Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >200 | ||||
Depth of Field(mm) | ±34.8@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 333±3 | ||||
Length (mm) | 157.5 | Weight(kg) | 0.8 | ||||
Measured Depth of Field (mm) | 8.6 | Filter Screw Size | M79x0.75 | ||||
Field of View (mm × mm) | 1/3" AR130/RJ33 (4.8x3.6) | 42.5x31.9 | |||||
1/2.5" 9P001/31 (5.7x4.28) | 50.4x37.9 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-64H-xW-y | |||||
Beam Diameter 64mm |
