2/3" 0.114X Bi-Telecentric Lenses | DTCM230-100H-AL COOLENS®

DTCM230-100H-AL
$2,222.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.114X Bi-Telecentric Lenses | DTCM230-100H-AL COOLENS®-OKLAB

Description

Model NO. DTCM230-100H-AL Image Circle Diameter (Φmm) 11.4(2/3")
Magnification(x) 0.114 Working Distance(mm) 238±4
NA 0.0117 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 100
Best Aperture(f/#) 4.9 MTF30 (lp/mm) >185
Depth of Field(mm) ±33.8@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 515±4
Length (mm) 259.8 Weight(kg) 3.1
Measured Depth of Field (mm) 7 Filter Screw Size M111x0.75
Field of View (mm × mm)

 1/1.8" EV76C570 (7.2x5.4) 63.2x47.4
1/1.7" IMX226 (7.5x5.6) 65.8x49.1
2/3" IMX250/264 (8.45x7.1) 74.1x62.3
Compatible Lighting Telecentric LED Lighting DTCL-100H-xW-y
Beam Diameter 100mm

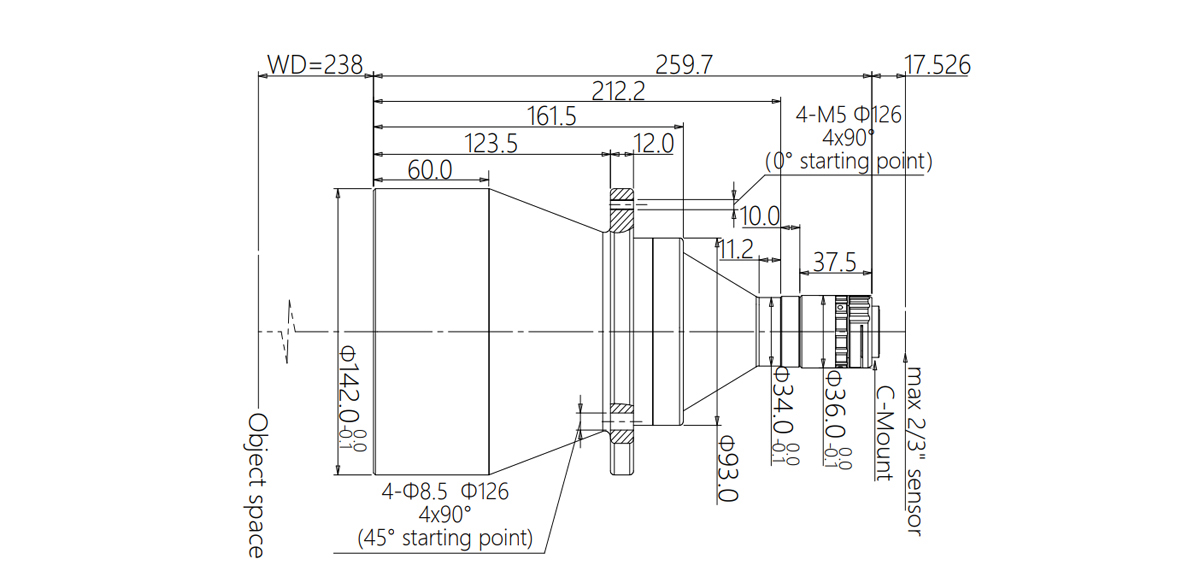

Dimensions

Naming Rule

Important Note

Important Shipping & Customs Information

Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.

Customs & Duties
  • Import duties vary by destination country and are determined by your local customs office
  • You will be contacted directly by customs or the delivery carrier to arrange payment
  • Oklab cannot pre-collect customs fees as rates differ across international destinations

Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.

Questions?
For shipping inquiries, please contact us at sales@oklab.com

By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.

  • Description

  • Important Note

Model NO. DTCM230-100H-AL Image Circle Diameter (Φmm) 11.4(2/3")
Magnification(x) 0.114 Working Distance(mm) 238±4
NA 0.0117 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 100
Best Aperture(f/#) 4.9 MTF30 (lp/mm) >185
Depth of Field(mm) ±33.8@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 515±4
Length (mm) 259.8 Weight(kg) 3.1
Measured Depth of Field (mm) 7 Filter Screw Size M111x0.75
Field of View (mm × mm)

 1/1.8" EV76C570 (7.2x5.4) 63.2x47.4
1/1.7" IMX226 (7.5x5.6) 65.8x49.1
2/3" IMX250/264 (8.45x7.1) 74.1x62.3
Compatible Lighting Telecentric LED Lighting DTCL-100H-xW-y
Beam Diameter 100mm



Dimensions

Naming Rule

Important Shipping & Customs Information

Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.

Customs & Duties
  • Import duties vary by destination country and are determined by your local customs office
  • You will be contacted directly by customs or the delivery carrier to arrange payment
  • Oklab cannot pre-collect customs fees as rates differ across international destinations

Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.

Questions?
For shipping inquiries, please contact us at sales@oklab.com

By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.
