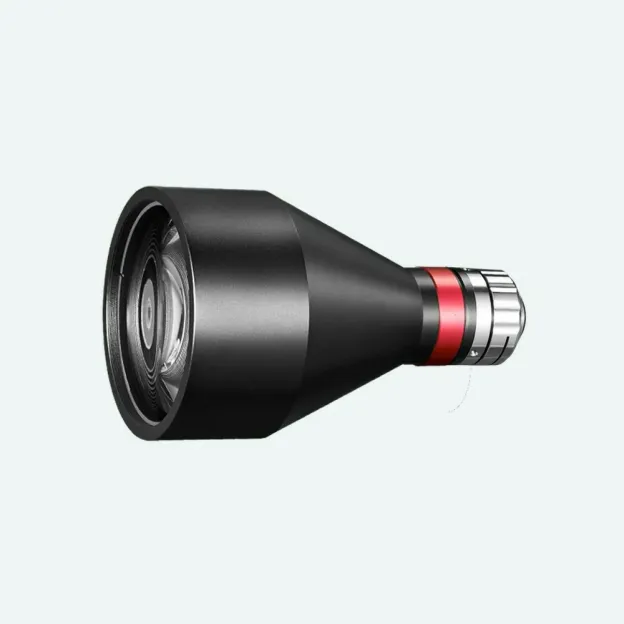

1/2" 0.125X Bi-Telecentric Lenses | DTCM120-64H-AL COOLENS®

$1,266.00 USD
Shipping calculated at checkout.
Quantity

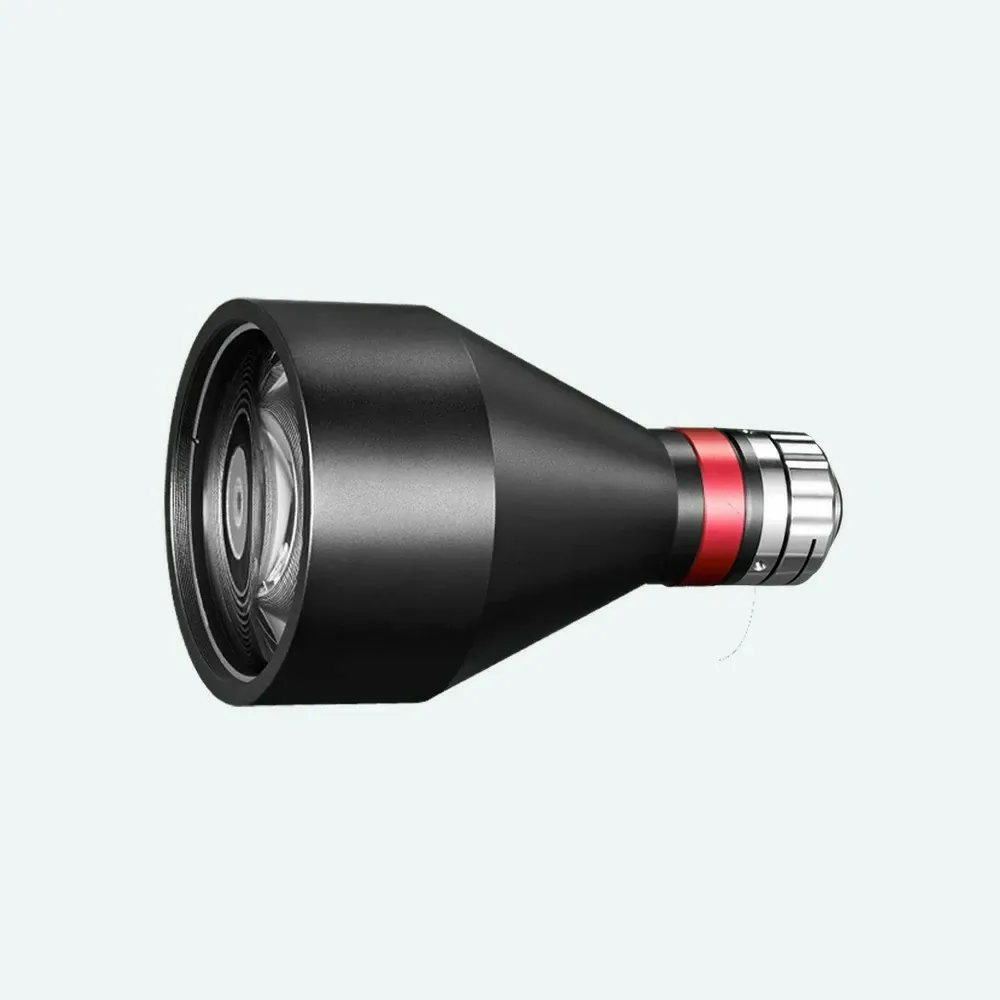

1/2" 0.125X Bi-Telecentric Lenses | DTCM120-64H-AL COOLENS®-OKLAB

Description

Model NO. DTCM120-64H-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.125 Working Distance(mm) 158±3
NA 0.0149 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 64
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >220
Depth of Field(mm) ±28.2@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 337±3
Length (mm) 161.2 Weight(kg) 0.8
Measured Depth of Field (mm) 4 Filter Screw Size M79x0.75
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 45.6x34.2
1/2.3" 9J003 (6.44x4.62) 51.5x37.0
Compatible Lighting Telecentric LED Lighting DTCL-64H-xW-y
Beam Diameter 64mm



Dimensions

Naming Rule

  • Description

Model NO. DTCM120-64H-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.125 Working Distance(mm) 158±3
NA 0.0149 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 64
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >220
Depth of Field(mm) ±28.2@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 337±3
Length (mm) 161.2 Weight(kg) 0.8
Measured Depth of Field (mm) 4 Filter Screw Size M79x0.75
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 45.6x34.2
1/2.3" 9J003 (6.44x4.62) 51.5x37.0
Compatible Lighting Telecentric LED Lighting DTCL-64H-xW-y
Beam Diameter 64mm



Dimensions

Naming Rule
