| Model NO. |
DTCM230-90-AL |
Image Circle Diameter (Φmm) |
11.4(2/3") |
| Magnification(x) |
0.127 |
Working Distance(mm) |
208±3 |
| NA |
0.0130 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
90 |
| Best Aperture(f/#) |
4.9 |
MTF30 (lp/mm) |
>180 |
| Depth of Field(mm) |
±27.2@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
443±3 |
| Length (mm) |
217 |
Weight(kg) |
1.7 |
| Measured Depth of Field (mm) |
6 |
Filter Screw Size |
M111x0.75 |
Field of View (mm × mm)
|
1/1.8" EV76C570 (7.2x5.4) |
56.7x42.5 |
| 1/1.7" IMX226 (7.5x5.6) |
59.1x44.1 |
| 2/3" IMX250/264 (8.45x7.1) |
66.5x55.9 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-90-xW-y |
| Beam Diameter 90mm |

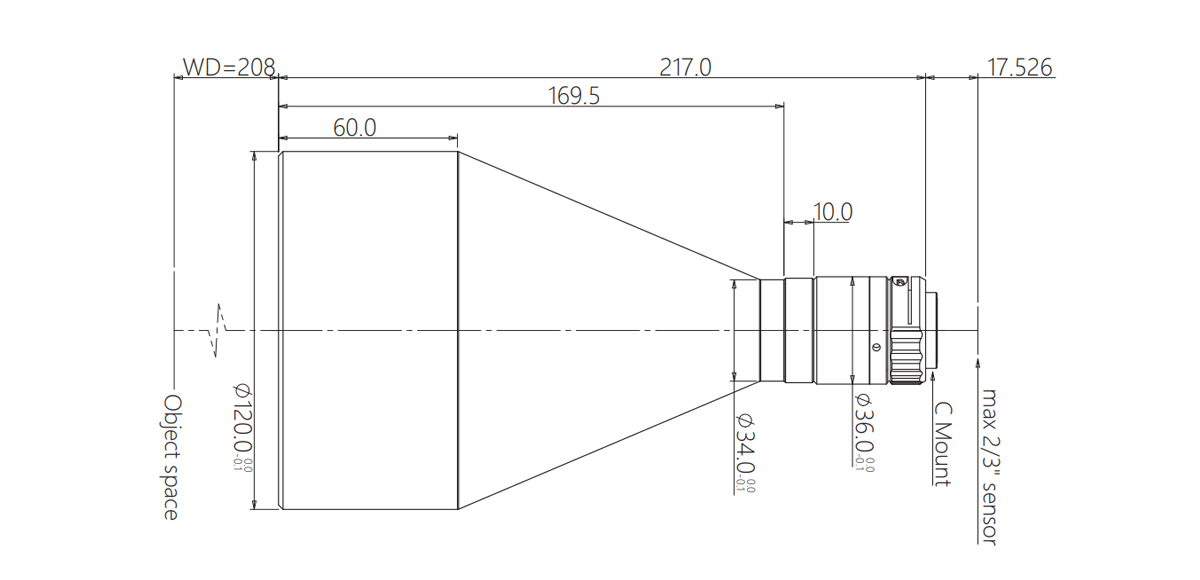

Dimensions
Naming Rule
