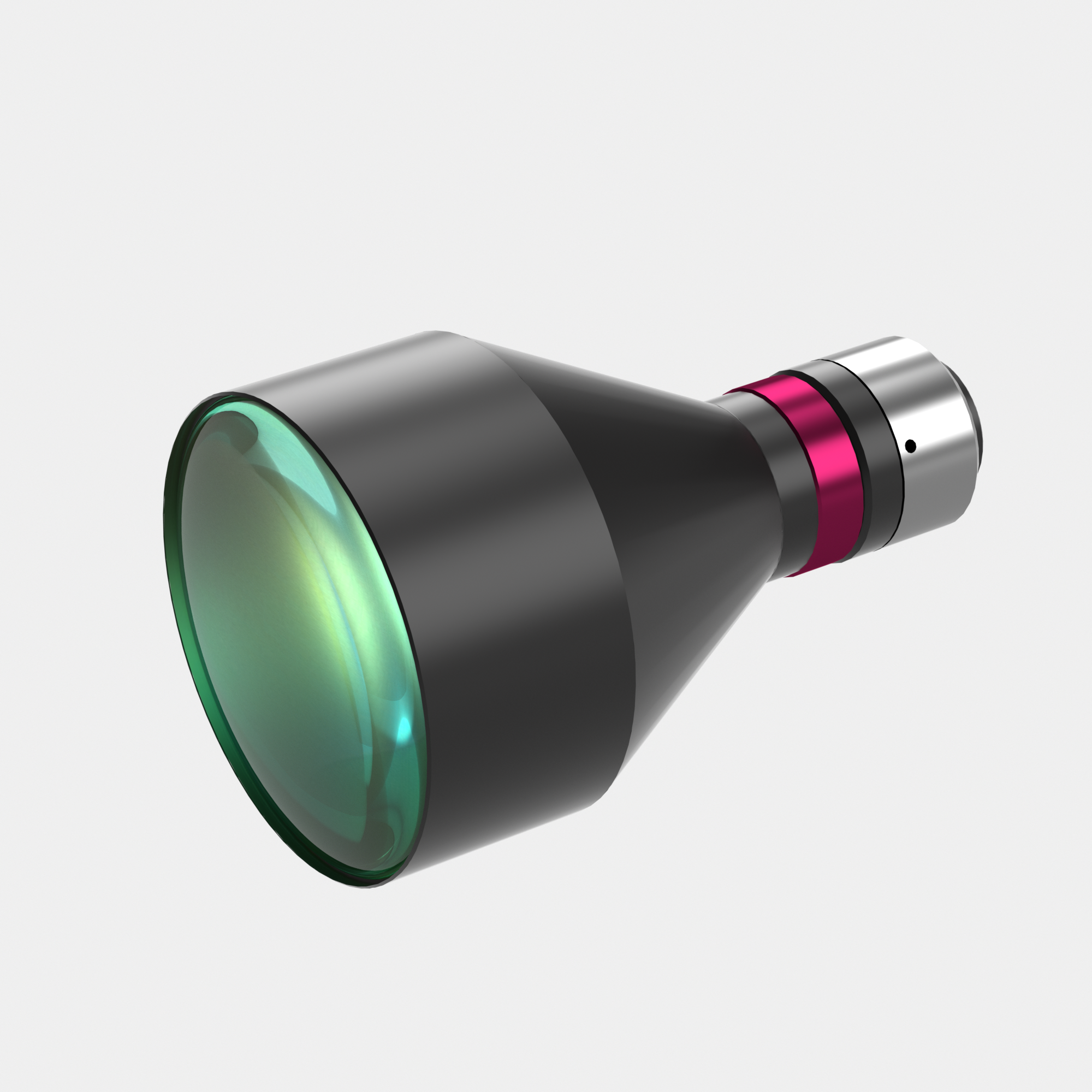

Model NO. | DTCM120-59-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
Magnification(x) | 0.136 | Working Distance(mm) | 85±1 | ||||
NA | 0.0161 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 59 | ||||
Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >200 | ||||
Depth of Field(mm) | ±17.@3F8 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 236±1 | ||||
Length (mm) | 133.8 | Weight(kg) | 0.9 | ||||
Measured Depth of Field (mm) | 5 | Filter Screw Size | M80x0.5 | ||||
Field of View (mm × mm) | 1/2.5" 9P001/31 (5.7x4.28) | 39.9x29.9 | |||||
1/2.3" 9J003 (6.44x4.62) | 45.0x32.3 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-59-xW-y | |||||
Beam Diameter 59mm |
