2" 0.138X Bi-Telecentric Lenses | DTCM210-240H-M58-AL COOLENS®

DTCM210-240H-M58-AL
Image Circle:33(2")mm, Magnification:0.138X, FoV:240mm, WD:410±6mm, NA:0.00886, Mount:M58, Type:Bi-Telecentric Lenses
$14,844.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$14,844.00 USD each
Description

Model NO. DTCM210-240H-M58-AL Image Circle Diameter (Φmm) 33(2")
Magnification(x) 0.138 Working Distance(mm) 410±6
NA 0.0089 Type Bi-Telecentric
Mount M58 Object Field of View(Φmm) 240
Best Aperture(f/#) 7.8 MTF30 (lp/mm) >110
Depth of Field(mm) ±33.9@F16 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 1064±6
Length (mm) 641.5 Weight(kg) 19.6
Measured Depth of Field (mm) 16 Filter Screw Size M272x1.0
Field of View (mm × mm)

2" DALSA 12M (24.58x18.43) 178.1x133.6
2" PYTHON 25K (23.04x23.04) 167.0x167.0
Compatible Lighting

Telecentric LED Lighting DTCL-240H-xW-y
Beam Diameter 240Hmm

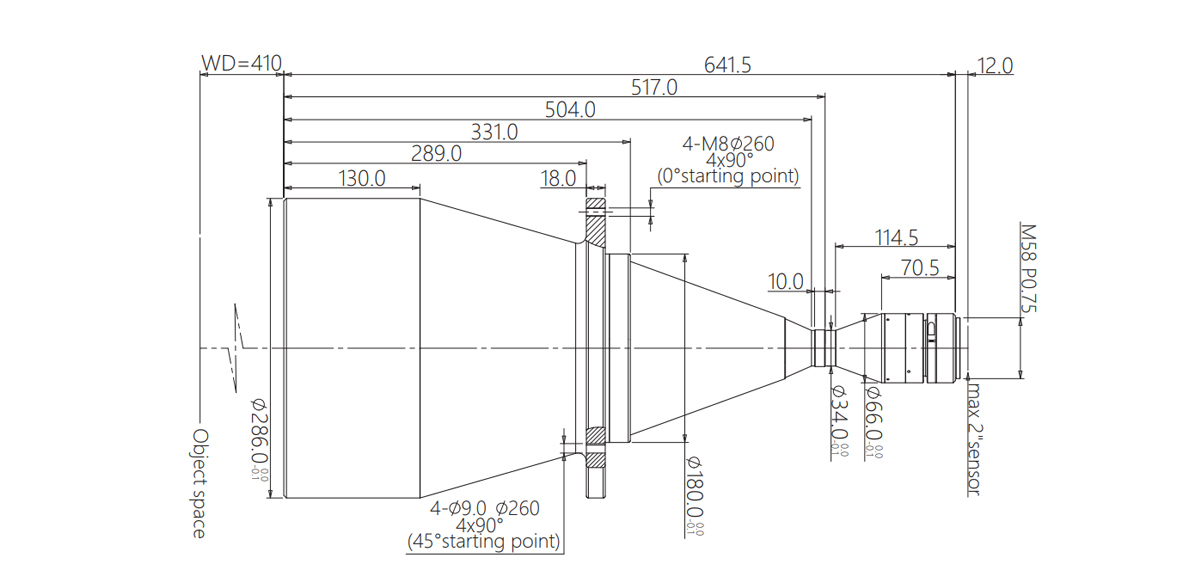

Dimensions

Naming Rule
