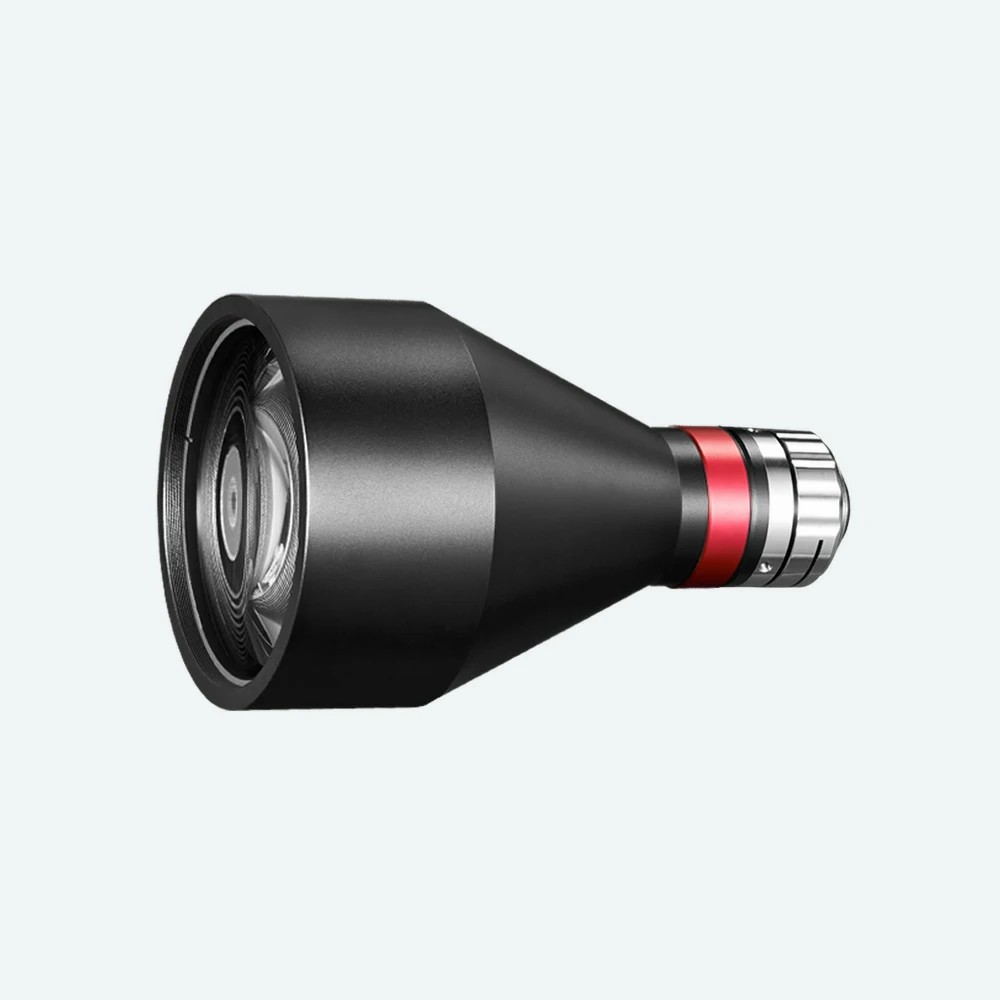

| Model NO. |
DTCM118-64H-AL |
Image Circle Diameter (Φmm) |
9.0(1/1.8") |
| Magnification(x) |
0.141 |
Working Distance(mm) |
158±3 |
| NA |
0.0153 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
64 |
| Best Aperture(f/#) |
4.6 |
MTF30 (lp/mm) |
>195 |
| Depth of Field(mm) |
±22.3@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
338±3 |
| Length (mm) |
162.4 |
Weight(kg) |
0.8 |
| Measured Depth of Field (mm) |
8 |
Filter Screw Size |
M79x0.75 |
| Field of View (mm × mm) |
1/1.8" IMX178 (7.43x4.9) |
52.7x34.8 |
| 1/1.8" IMX252/265 (7.1x5.3) |
50.4x37.6 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-64H-xW-y |
| Beam Diameter 64mm |

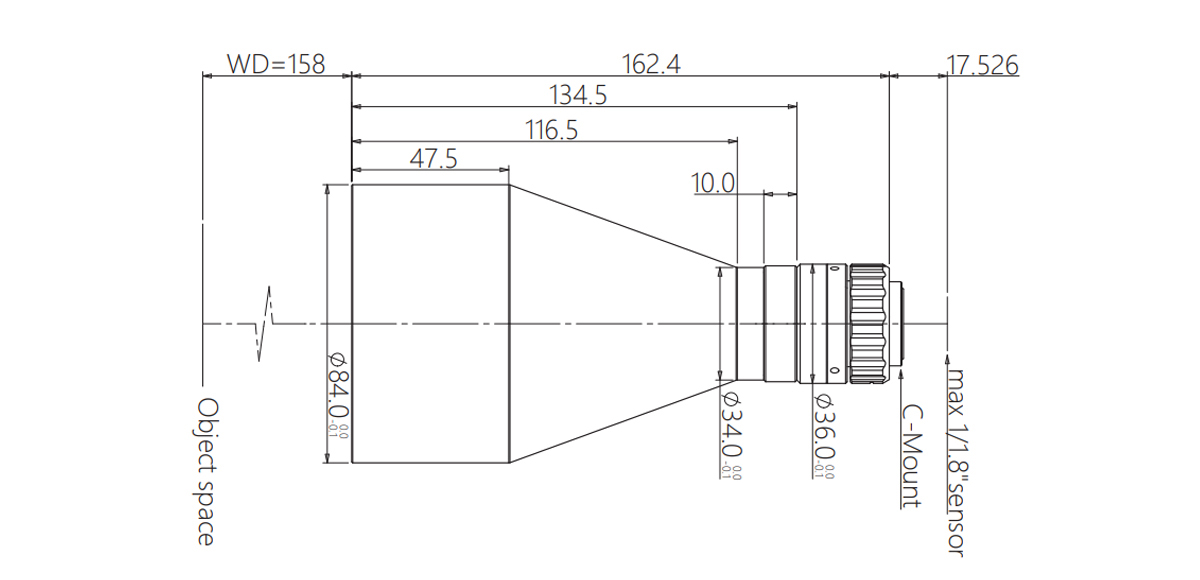

Dimensions
Naming Rule
