| Model NO. |
DTCM230-80H-AL |
Image Circle Diameter (Φmm) |
11.4(2/3") |
| Magnification(x) |
0.142 |
Working Distance(mm) |
228±4 |
| NA |
0.0146 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
80 |
| Best Aperture(f/#) |
4.9 |
MTF30 (lp/mm) |
>180 |
| Depth of Field(mm) |
±21.7@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
428±4 |
| Length (mm) |
182 |
Weight(kg) |
1.9 |
| Measured Depth of Field (mm) |
7 |
Filter Screw Size |
M103x0.75 |
Field of View (mm × mm)
|
1/1.8" EV76C570 (7.2x5.4) |
50.7x38.0 |
| 1/1.7" IMX226 (7.5x5.6) |
52.8x39.4 |
| 2/3" IMX250/264 (8.45x7.1) |
59.5x50.0 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-80H-xW-y |
| Beam Diameter 80Hmm |

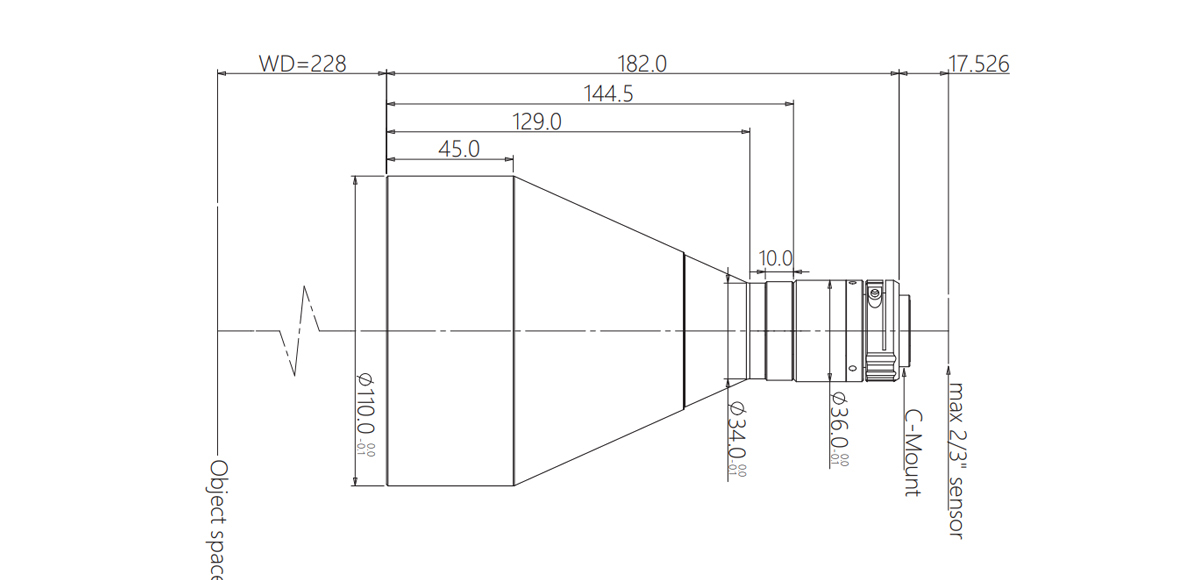

Dimensions
Naming Rule
