Model NO. |
DTCM71M-258-M58-AL |
Image Circle Diameter (Φmm) |
39(71M) |
Magnification(x) |
0.151 |
Working Distance(mm) |
338±5 |
NA |
0.0116 |
Type |
Bi-Telecentric |
Mount |
M58 |
Object Field of View(Φmm) |
258 |
Best Aperture(f/#) |
6.5 |
MTF30 (lp/mm) |
>130 |
Depth of Field(mm) |
±19.3@F11 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
883±5 |
Length (mm) |
533.1 |
Weight(kg) |
24.8 |
Measured Depth of Field (mm) |
12 |
Filter Screw Size |
M285x1.0 |
Field of View (mm × mm)
|
CHR 70M (31.0x21.7) |
205.3x143.7 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-300-xW-y |
DTCL-258 |

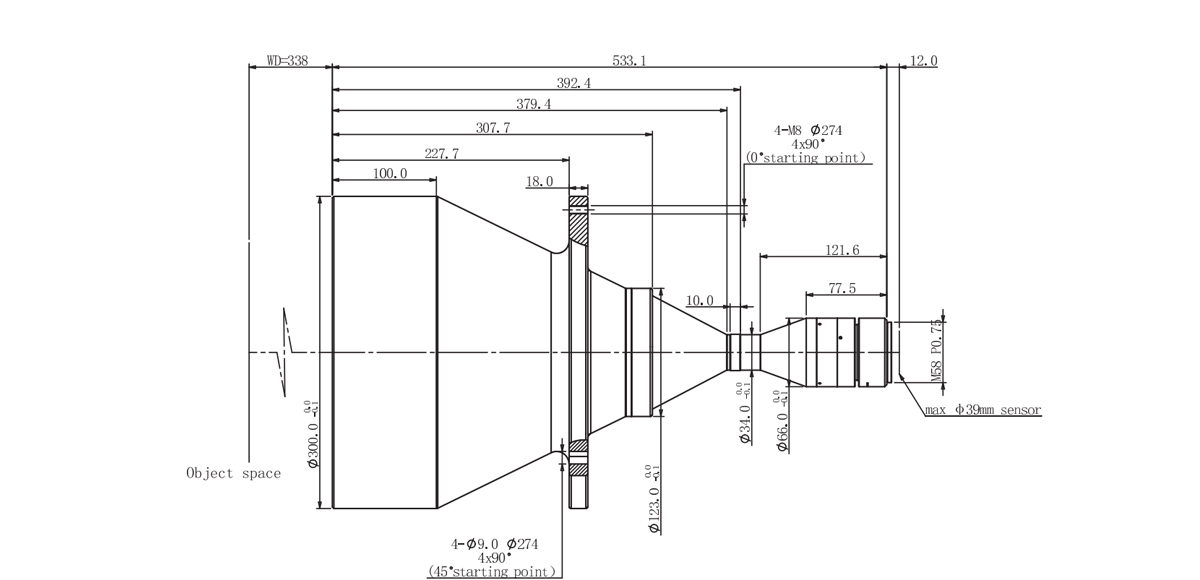

Dimensions
![]()
Naming Rule
![]()
