  • 2" 0.154X Telecentric Lenses | DTCA210-215-M42-AL COOLENS®-OKLAB
1 / 1

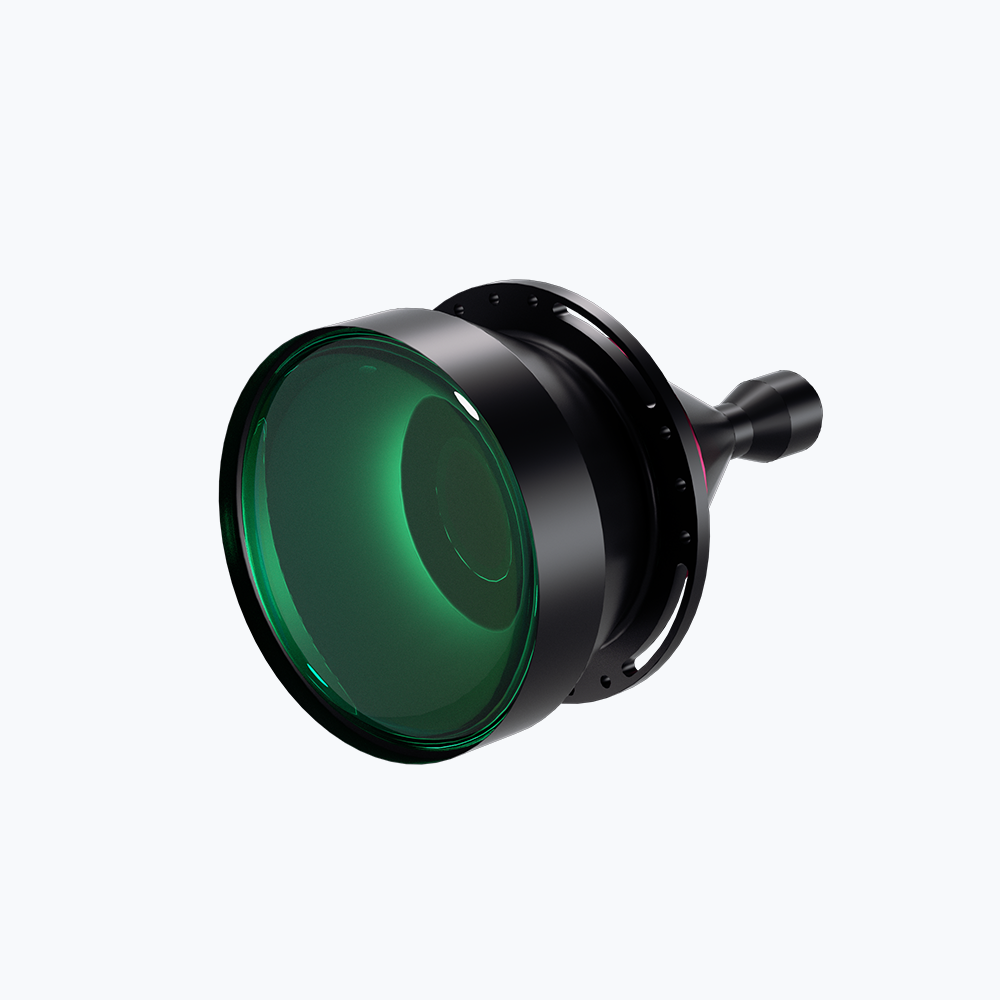

2" 0.154X Telecentric Lenses | DTCA210-215-M42-AL COOLENS®

DTCA210-215-M42-AL
$8,571.00 USD
Shipping calculated at checkout.
Quantity
2" 0.154X Telecentric Lenses | DTCA210-215-M42-AL COOLENS®-OKLAB

Description

Model NO. DTCA210-215-M42-AL Image Circle Diameter (Φmm) 33(2")
Magnification(x) 0.154 Working Distance(mm) 215
NA 0.0096 Type Telecentric
Mount M42 Object Field of View(Φmm) 215
Best Aperture(f/#) 8 MTF30 (lp/mm) >90
Object Resolution(μm) 34.9 Depth of Field(mm) ±13.6@F8
Distortion Typical(% max) <0.1 Telecentricity Typical (°max) <0.1
Length of I/O(mm) 601 Length (mm) 369
Weight(kg) 8.7 Iris Adjustable No
With Coaxial Illumination Port No Measured Depth of Field (mm) /
Filter Screw Size M236x1.0
Field of View (mm × mm)
 2" DALSA 12M (24.58x18.43) 160x120
2" PYTHON 25K (23.04x23.04) 150x150

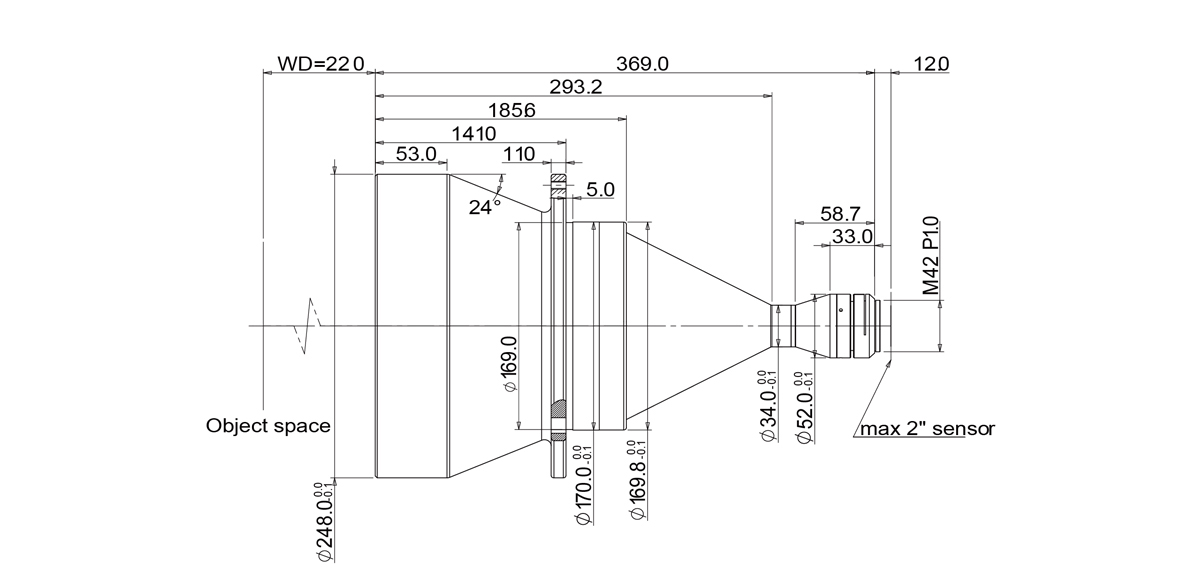

Dimensions

Naming Rule

Important Note

Important Shipping & Customs Information

Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.

Customs & Duties
  • Import duties vary by destination country and are determined by your local customs office
  • You will be contacted directly by customs or the delivery carrier to arrange payment
  • Oklab cannot pre-collect customs fees as rates differ across international destinations

Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.

Questions?
For shipping inquiries, please contact us at sales@oklab.com

By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.
