Model No.	Image Circle Diameter (Φmm)	Magnification(x)	Working Distance(mm)	NA	Type	Mount	Price
DTCM210-36-M58-AL	233(2")	0.917	110±2	0.0295	Bi-Telecentric	M58	$1,949.00
DTCM210-42-M58-AL	233(2")	0.786	118±3	0.0304	Bi-Telecentric	M58	$2,144.00
DTCM210-48-M58-AL	233(2")	0.688	128±3	0.0266	Bi-Telecentric	M58	$2,591.00
DTCM210-56-M58-AL	233(2")	0.589	138±3	0.0266	Bi-Telecentric	M58	$2,649.00
DTCM210-64H-M58-AL	233(2")	0.516	158±3	0.0266	Bi-Telecentric	M58	$2,922.00
DTCM210-72-M58-AL	233(2")	0.458	178±3	0.0236	Bi-Telecentric	M58	$3,098.00
DTCM210-80H-M58-AL	233(2")	0.413	228±4	0.0266	Bi-Telecentric	M58	$3,215.00
DTCM210-90-M58-AL	233(2")	0.367	208±3	0.0213	Bi-Telecentric	M58	$3,468.00
DTCM210-100H-M58-AL	233(2")	0.330	238±4	0.0128	Bi-Telecentric	M58	$3,702.00
DTCM210-120H-M58-AL	233(2")	0.275	273±5	0.0177	Bi-Telecentric	M58	$3,896.00
DTCM210-120H-M58-AL	233(2")	0.275	273±5	0.0177	Bi-Telecentric	M58	$4,091.00
DTCM210-136-M58-AL	233(2")	0.243	288±5	0.0156	Bi-Telecentric	M58	$4,598.00
DTCM210-150-M58-AL	233(2")	0.220	300±5	0.0099	Bi-Telecentric	M58	$5,222.00
DTCM210-170-M58-AL	233(2")	0.194	318±5	0.0125	Bi-Telecentric	M58	$7,052.00
DTCM210-190H-M58-AL	233(2")	0.174	330±5	0.0112	Bi-Telecentric	M58	$8,864.00

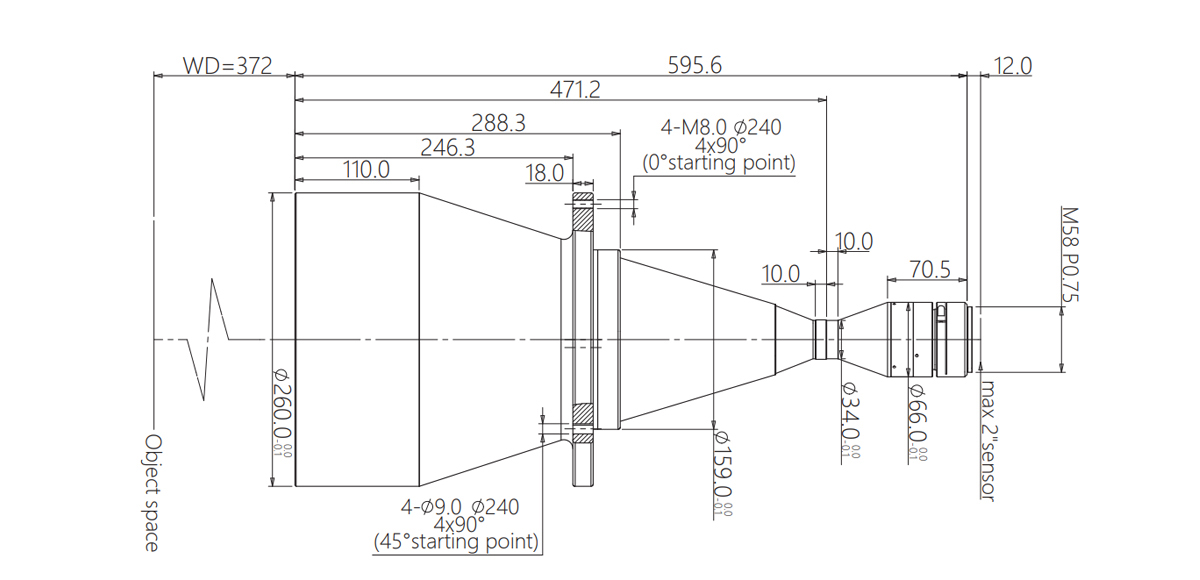

DTCM210-216-M58-AL	233(2")	0.153	372±5	0.0098	Bi-Telecentric	M58	$11,883.00
DTCM210-240H-M58-AL	233(2")	0.138	410±6	0.0089	Bi-Telecentric	M58	$14,844.00
DTCM210-258-M58-AL	233(2")	0.128	338±5	0.0082	Bi-Telecentric	M58	$15,195.00
DTCM210-300-M58-AL	233(2")	0.110	465±6	0.0071	Bi-Telecentric	M58	$20,454.00
DTCA210-11.8-M58	233(2")	2.800	90±1	0.1422	Bi-Telecentric	M58	$2,370.00
DTCA210-11.8C-M58	233(2")	2.800	90±1	0.1422	Bi-Telecentric	M58	$2,750.00
DTCA210-44.8-M58-AL	233(2")	0.737	90	0.0469	Telecentric	M58	$2,435.00
DTCA210-215-M42-AL	233(2")	0.154	215	0.0096	Telecentric	M42	$8,571.00

2" 0.153X Bi-Telecentric Lenses | DTCM210-216-M58-AL COOLENS®
