Model NO. | DTCM71M-240H-M58-AL | Image Circle Diameter (Φmm) | 39(71M) | ||||
Magnification(x) | 0.163 | Working Distance(mm) | 410±6 | ||||
NA | 0.0125 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 240 | ||||
Best Aperture(f/#) | 7.5 | MTF30 (lp/mm) | >130 | ||||
Depth of Field(mm) | ±24.3@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1080±6 | ||||
Length (mm) | 657.7 | Weight(kg) | 19.7 | ||||
Measured Depth of Field (mm) | 7 | Filter Screw Size | M272x1.0 | ||||
Field of View (mm × mm) |
CHR 70M (31.0x21.7) | 190.2x133.1 | |||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-240H-xW-y | |||||
Beam Diameter 240Hmm |

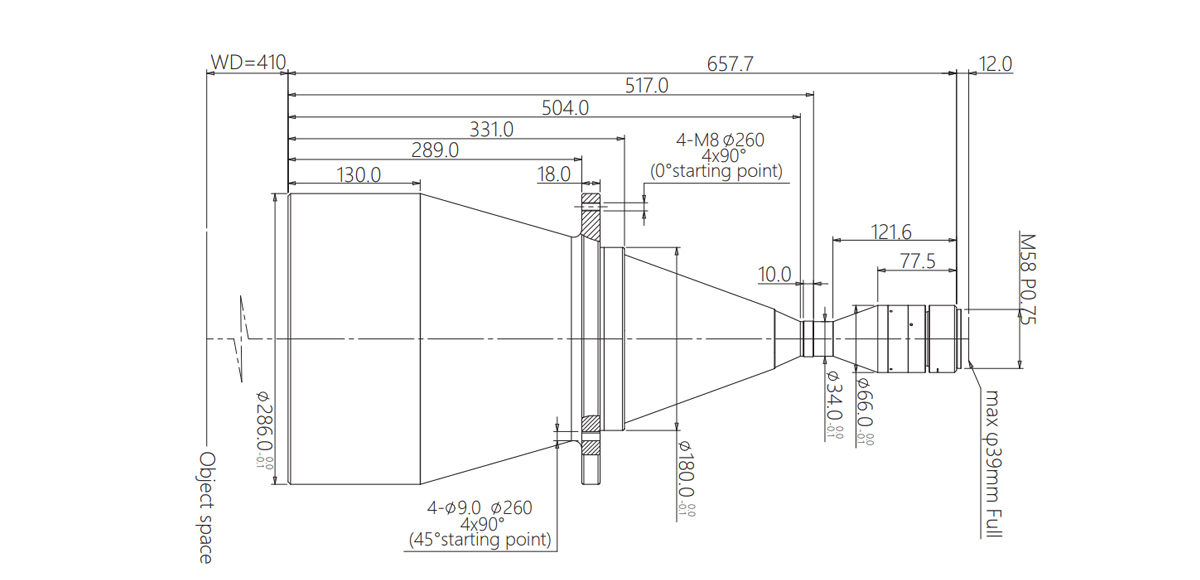

71M 0.163X Bi-Telecentric Lenses | DTCM71M-240H-M58-AL COOLENS®
$15,234.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM71M-240H-M58-AL | Image Circle Diameter (Φmm) | 39(71M) | ||||
Magnification(x) | 0.163 | Working Distance(mm) | 410±6 | ||||
NA | 0.0125 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 240 | ||||
Best Aperture(f/#) | 7.5 | MTF30 (lp/mm) | >130 | ||||
Depth of Field(mm) | ±24.3@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 1080±6 | ||||
Length (mm) | 657.7 | Weight(kg) | 19.7 | ||||
Measured Depth of Field (mm) | 7 | Filter Screw Size | M272x1.0 | ||||
Field of View (mm × mm) |
CHR 70M (31.0x21.7) | 190.2x133.1 | |||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-240H-xW-y | |||||
Beam Diameter 240Hmm |
