| Model NO. |
DTCM110-100H-AL |
Image Circle Diameter (Φmm) |
16.6(1") |
| Magnification(x) |
0.166 |
Working Distance(mm) |
238±4 |
| NA |
0.0128 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
100 |
| Best Aperture(f/#) |
6.5 |
MTF30 (lp/mm) |
>140 |
| Depth of Field(mm) |
±23.2@F16 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
534±4 |
| Length (mm) |
278.2 |
Weight(kg) |
3.2 |
| Measured Depth of Field (mm) |
7 |
Filter Screw Size |
M111x0.75 |
Field of View (mm × mm)
|
1" PYTHON 5000(12.43x9.83) |
74.9x59.2 |
| 1" IMX255(14.19x7.51) |
85.5x45.2 |
| 1" IMX183(13.13x8.76) |
79.1x52.8 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-100H-xW-y |
| Beam Diameter 100mm |

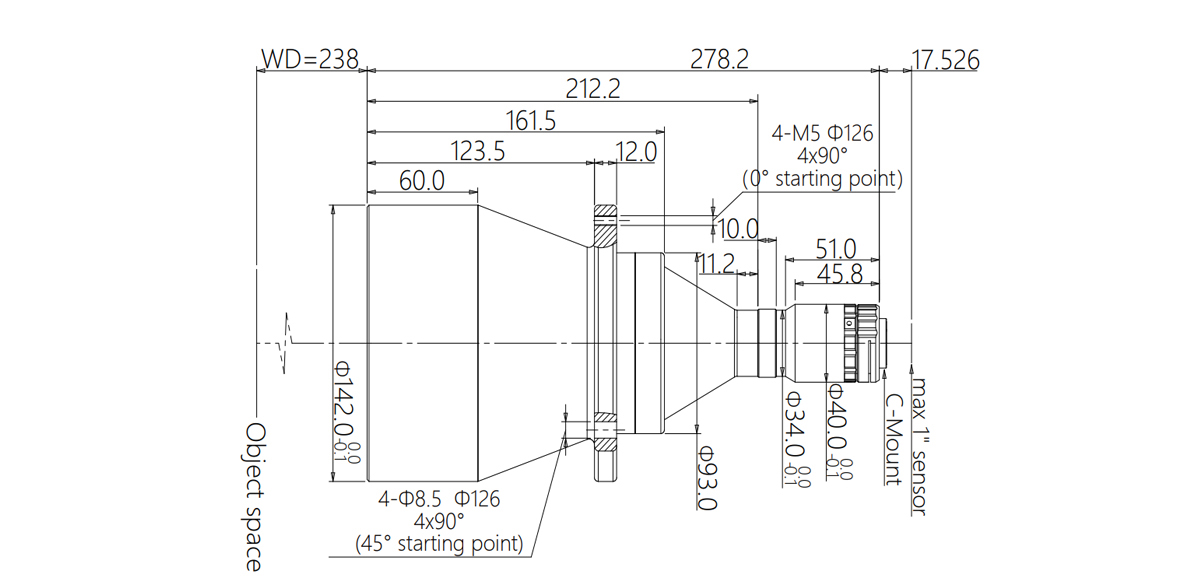

Dimensions
Naming Rule
