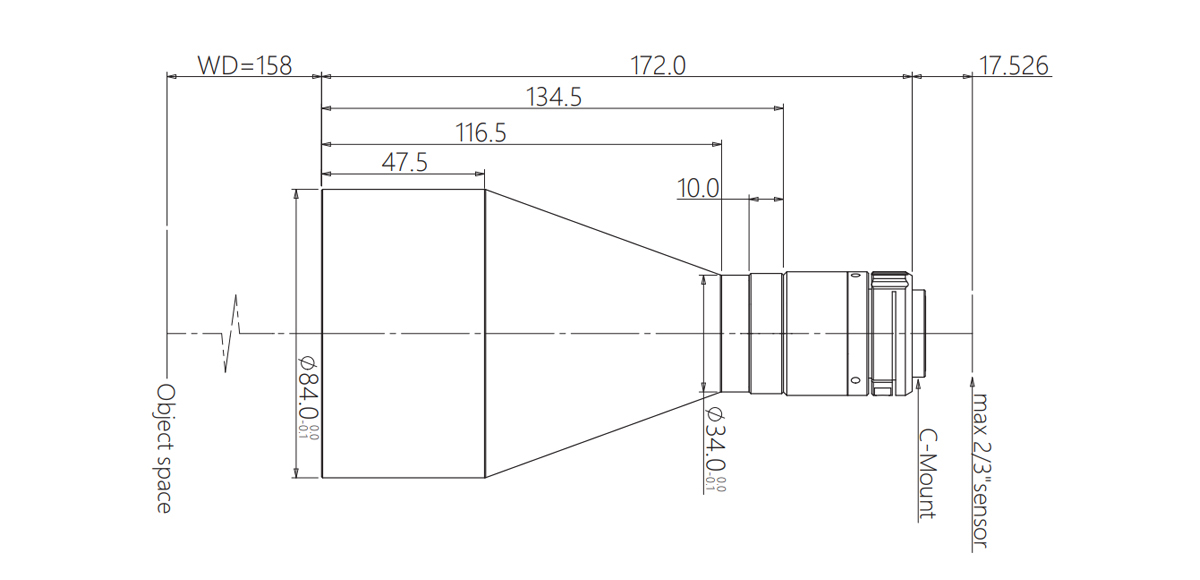

Model NO. | DTCM230-64H-AL | Image Circle Diameter (Φmm) | 11.4(2/3") | ||||
Magnification(x) | 0.178 | Working Distance(mm) | 158±3 | ||||
NA | 0.0183 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 64 | ||||
Best Aperture(f/#) | 4.9 | MTF30 (lp/mm) | >180 | ||||
Depth of Field(mm) | ±13.9@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 348±3 | ||||
Length (mm) | 172 | Weight(kg) | 0.8 | ||||
Measured Depth of Field (mm) | 5.2 | Filter Screw Size | M79x0.75 | ||||
Field of View (mm × mm) |
1/1.8" EV76C570 (7.2x5.4) | 40.4x30.3 | |||||
1/1.7" IMX226 (7.5x5.6) | 42.1x31.5 | ||||||
2/3" IMX250/264 (8.45x7.1) | 47.5x39.9 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-64H-xW-y | |||||
Beam Diameter 64Hmm |

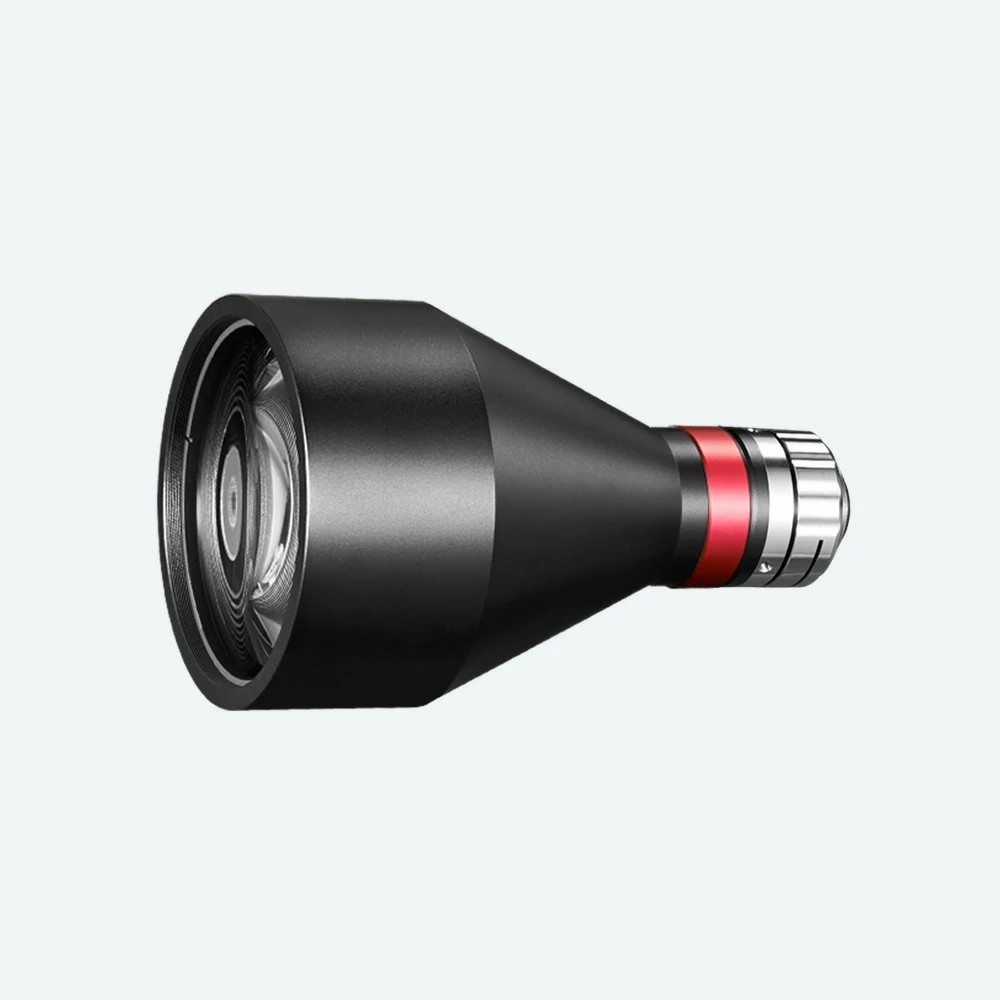

2/3" 0.178X Bi-Telecentric Lenses | DTCM230-64H-AL COOLENS®
$1,325.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM230-64H-AL | Image Circle Diameter (Φmm) | 11.4(2/3") | ||||
Magnification(x) | 0.178 | Working Distance(mm) | 158±3 | ||||
NA | 0.0183 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 64 | ||||
Best Aperture(f/#) | 4.9 | MTF30 (lp/mm) | >180 | ||||
Depth of Field(mm) | ±13.9@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 348±3 | ||||
Length (mm) | 172 | Weight(kg) | 0.8 | ||||
Measured Depth of Field (mm) | 5.2 | Filter Screw Size | M79x0.75 | ||||
Field of View (mm × mm) |
1/1.8" EV76C570 (7.2x5.4) | 40.4x30.3 | |||||
1/1.7" IMX226 (7.5x5.6) | 42.1x31.5 | ||||||
2/3" IMX250/264 (8.45x7.1) | 47.5x39.9 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-64H-xW-y | |||||
Beam Diameter 64Hmm |
