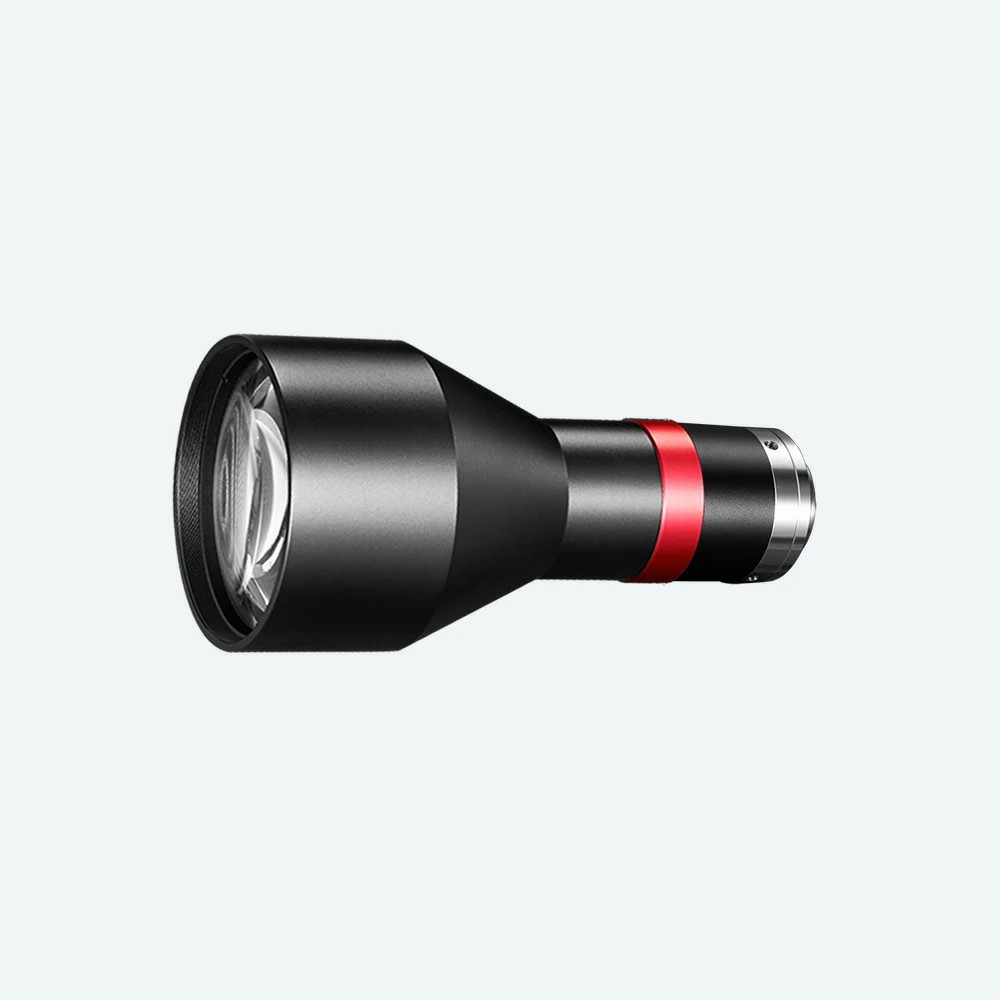

1/1.8" 0.188X Bi-Telecentric Lenses | DTCM118-48 COOLENS®

DTCM118-48
$1,071.00 USD
Shipping calculated at checkout.
Quantity
1/1.8" 0.188X Bi-Telecentric Lenses | DTCM118-48 COOLENS®-OKLAB

Description

Model NO. DTCM118-48 Image Circle Diameter (Φmm) 9.0(1/1.8")
Magnification(x) 0.188 Working Distance(mm) 128±3
NA 0.0204 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 48
Best Aperture(f/#) 4.6 MTF30 (lp/mm) >190
Depth of Field(mm) ±12.4@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 273±3
Length (mm) 127.3 Weight(kg) 0.4
Measured Depth of Field (mm) 4.5 Filter Screw Size M60x0.5
Field of View (mm × mm) 1/1.8" IMX178 (7.43x4.9) 39.5x26.1
1/1.8" IMX252/265 (7.1x5.3) 37.8x28.2
Compatible Lighting Telecentric LED Lighting DTCL-48-xW-y
Beam Diameter 48mm

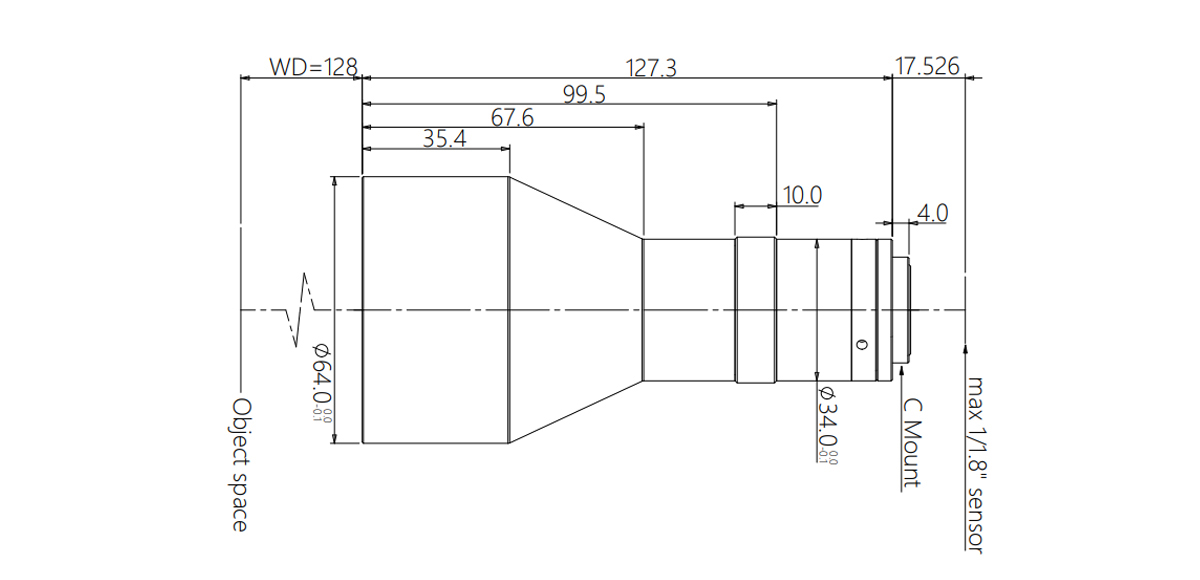

Dimensions
