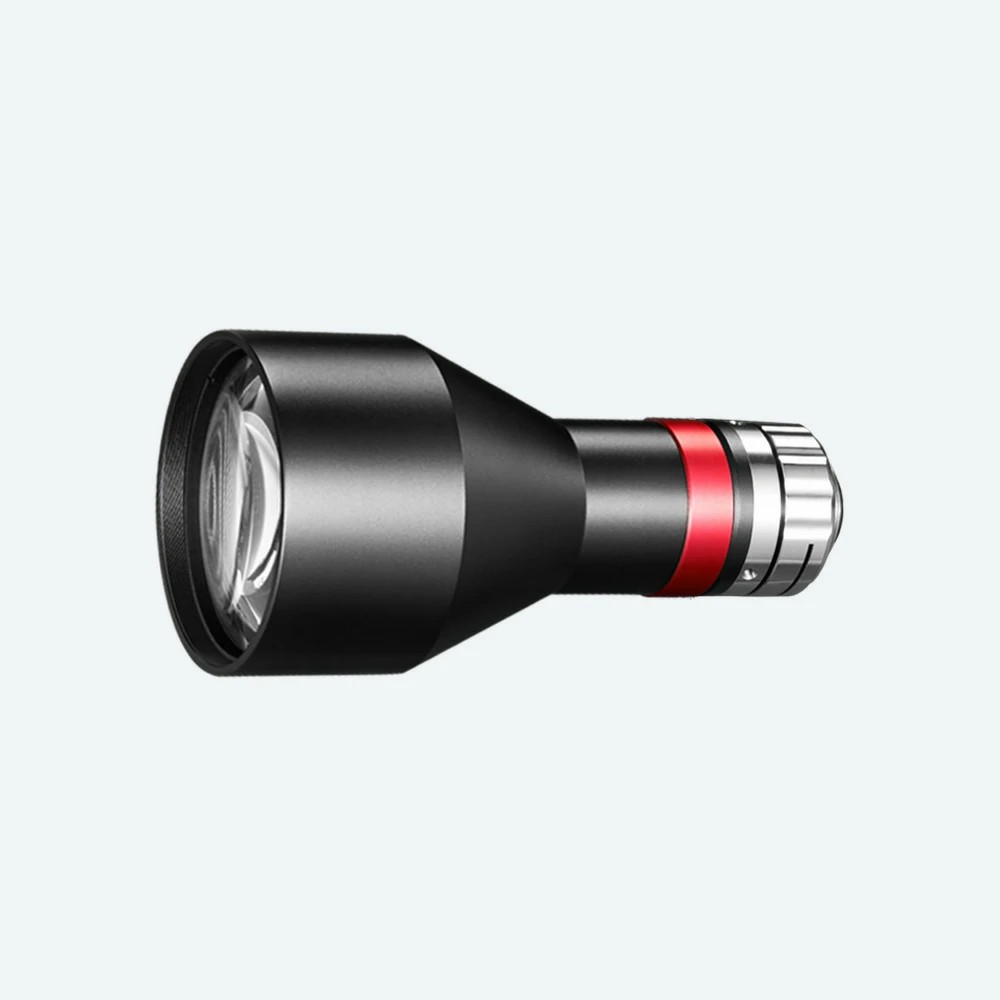

1/2" 0.19X Bi-Telecentric Lenses | DTCM120-42-AL COOLENS®

$935.00 USD
Shipping calculated at checkout.
Quantity
1/2" 0.19X Bi-Telecentric Lenses | DTCM120-42-AL COOLENS®-OKLAB

Description

Model NO. DTCM120-42-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.19 Working Distance(mm) 118±3
NA 0.0227 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 42
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±12.1@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 248±3
Length (mm) 112.7 Weight(kg) 0.4
Measured Depth of Field (mm) 3 Filter Screw Size M56x0.5
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 30.0x22.5
1/2.3" 9J003 (6.44x4.62) 33.9x24.3
Compatible Lighting Telecentric LED Lighting DTCL-42-xW-y
Beam Diameter 42mm

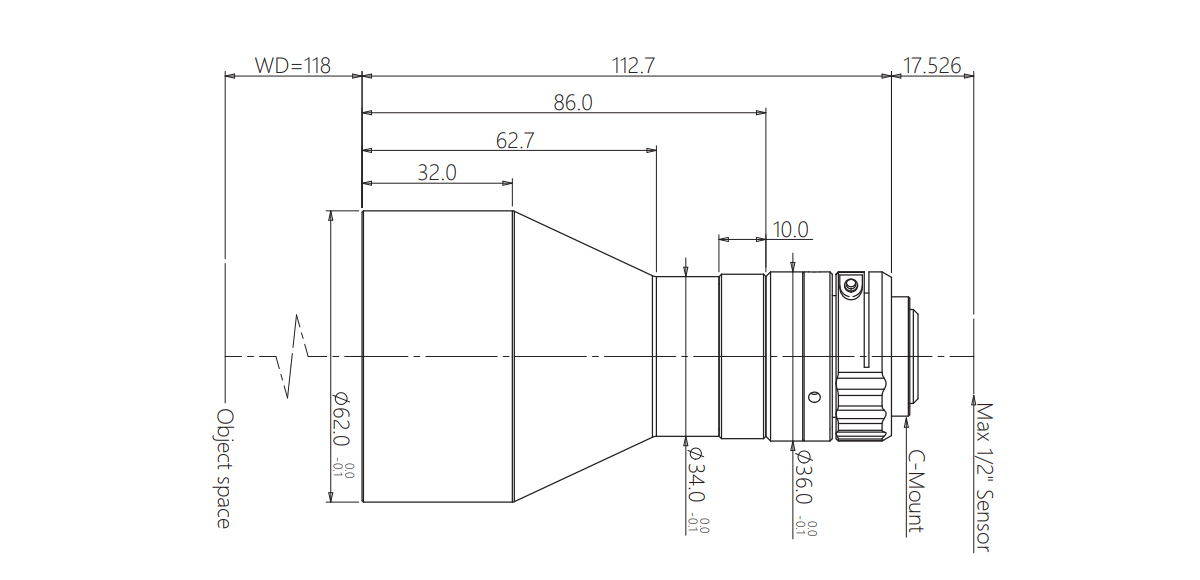

Dimensions

Naming Rule

  • Description

Model NO. DTCM120-42-AL Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.19 Working Distance(mm) 118±3
NA 0.0227 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 42
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±12.1@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 248±3
Length (mm) 112.7 Weight(kg) 0.4
Measured Depth of Field (mm) 3 Filter Screw Size M56x0.5
Field of View (mm × mm) 1/2.5" 9P001/31 (5.7x4.28) 30.0x22.5
1/2.3" 9J003 (6.44x4.62) 33.9x24.3
Compatible Lighting Telecentric LED Lighting DTCL-42-xW-y
Beam Diameter 42mm



Dimensions

Naming Rule
