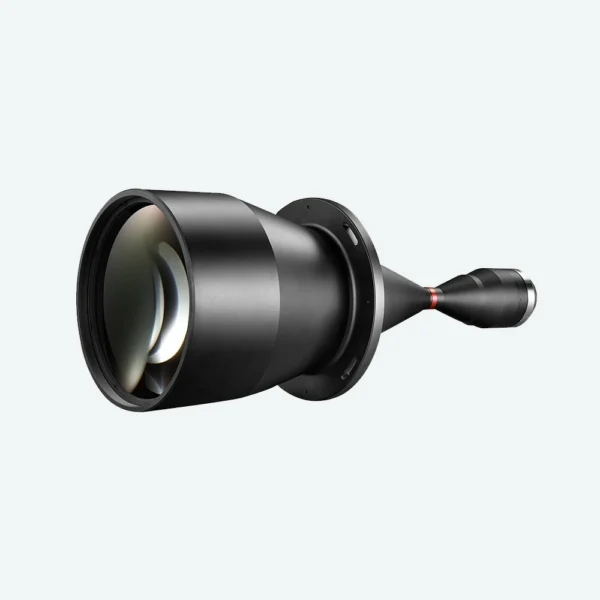

| Model NO. |
DTCM16K-300-AL |
Magnification(x) |
0.197 |
| Object Field of View (Φmm) |
300 |
Working Distance (mm) |
465±6 |
| Max Sensor Size (Φmm) |
59 |
Best Aperture (F/#) |
9.0 |
| Telecentricity typical (max) (deg) |
<0.1 |
Distortion typical (max) (%) |
<0.1 |
| MTF30 (lp/mm) |
>95 |
Depth of Field (mm) |
±20.6@F20 |
| Length of I/O (mm) |
1268±6 |
Mount |
M72 |
| Length (mm) |
791.0 |
Weight (kg) |
48.0 |
Field of View (mm × mm)
|
48.7×29.0 with KAI-47051 |
247.2x147.2 |
|
| 57.4mm with 16K×3.5/3.53um |
291.4mm |
| 57.4mm with 8K×7um/7.04um |
291.4mm |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-300-xW-y |
|
|
|
| Beam Diameter 300mm |

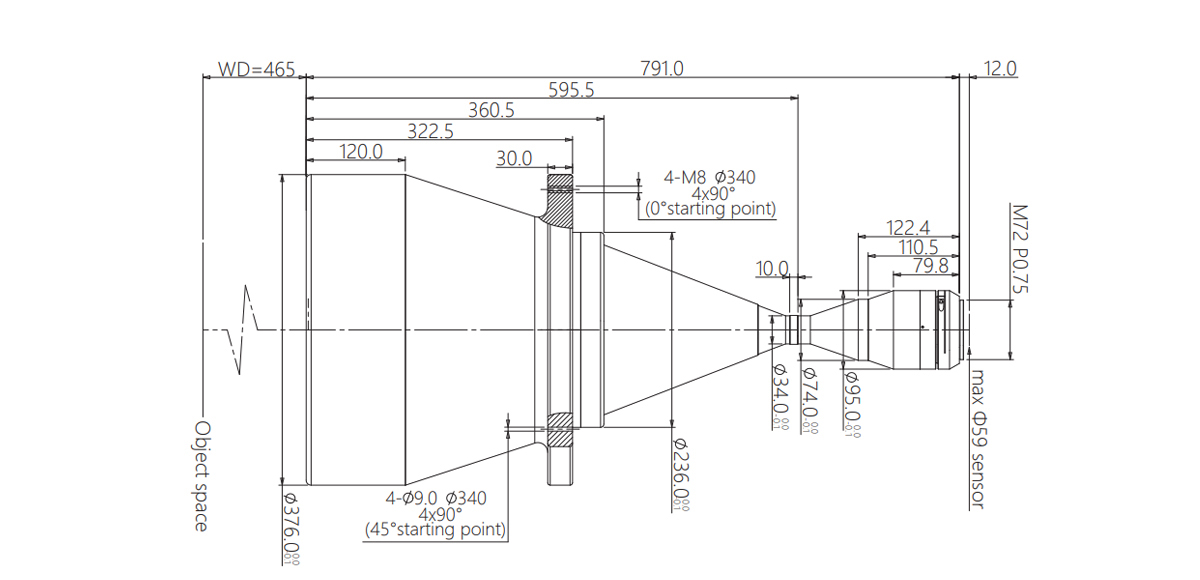

Dimensions
