Model NO. | DTCM430H-120H-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.197 | Working Distance(mm) | 273±5 | ||||
NA | 0.0213 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 120 | ||||
Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >182 | ||||
Depth of Field(mm) | ±16.5@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 617±5 | ||||

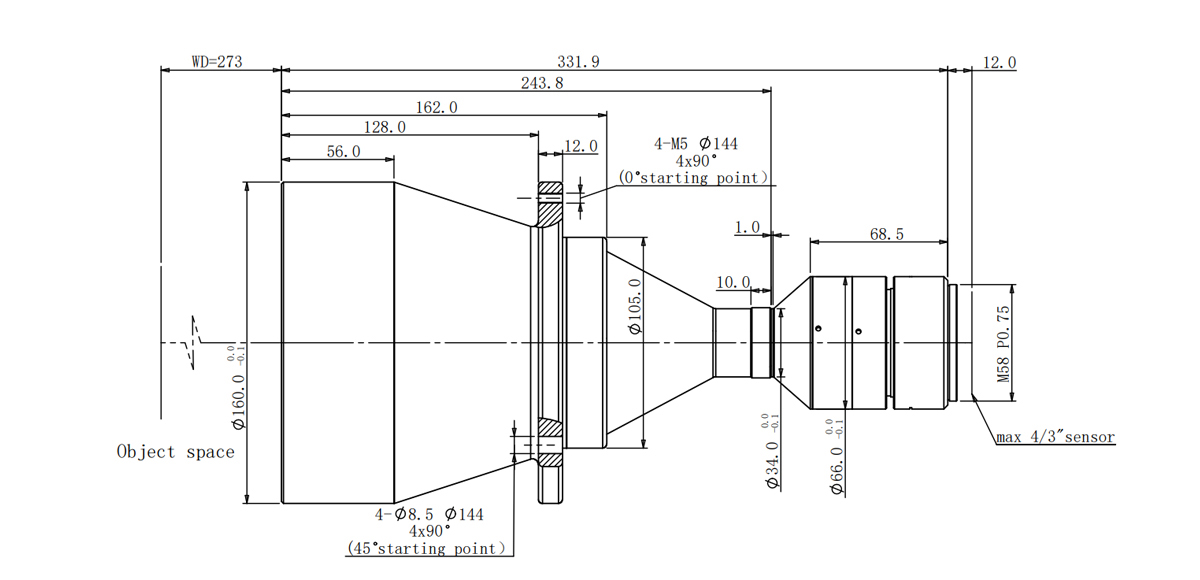

Length (mm) | 331.9 | Weight(kg) | 4.7 | ||||
Measured Depth of Field (mm) | 2 | Filter Screw Size | M150x1.0 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 90.7x72.7 | |||||
4/3" PYTHON 12K (18.43x13.82) | 93.6x70.2 | ||||||
4/3" CMV8000 (18.48x13.73) | 93.8x69.7 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-120H-xW-y | |||||
Beam Diameter 120mm |

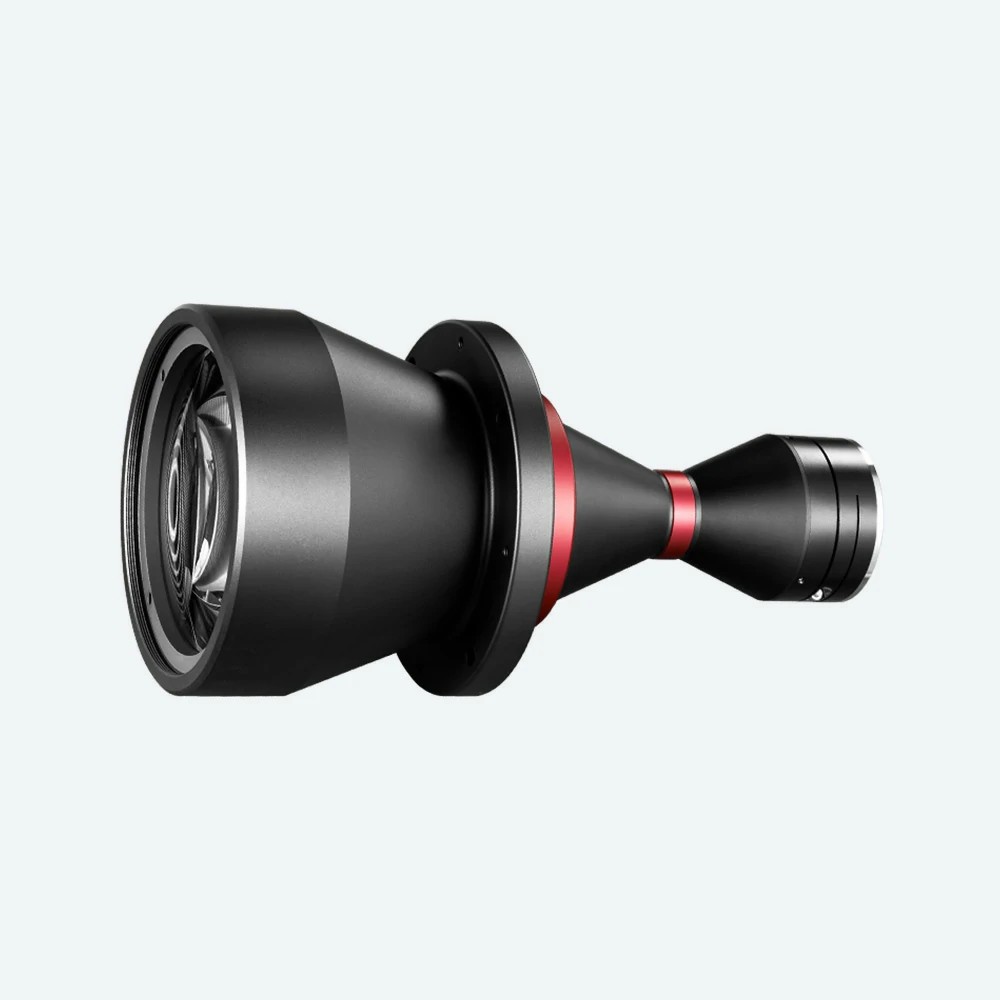

4/3" 0.197X Bi-Telecentric Lenses | DTCM430H-120H-M58-AL COOLENS®
$3,876.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM430H-120H-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.197 | Working Distance(mm) | 273±5 | ||||
NA | 0.0213 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 120 | ||||
Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >182 | ||||
Depth of Field(mm) | ±16.5@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 617±5 | ||||
Length (mm) | 331.9 | Weight(kg) | 4.7 | ||||
Measured Depth of Field (mm) | 2 | Filter Screw Size | M150x1.0 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 90.7x72.7 | |||||
4/3" PYTHON 12K (18.43x13.82) | 93.6x70.2 | ||||||
4/3" CMV8000 (18.48x13.73) | 93.8x69.7 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-120H-xW-y | |||||
Beam Diameter 120mm |
