Model NO. | DTCM71M-190H-M58-AL | Image Circle Diameter (Φmm) | 39(71M) | ||||
Magnification(x) | 0.205 | Working Distance(mm) | 330±5 | ||||
NA | 0.0158 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 190 | ||||
Best Aperture(f/#) | 6.5 | MTF30 (lp/mm) | >135 | ||||
Depth of Field(mm) | ±10.5@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 858±5 | ||||

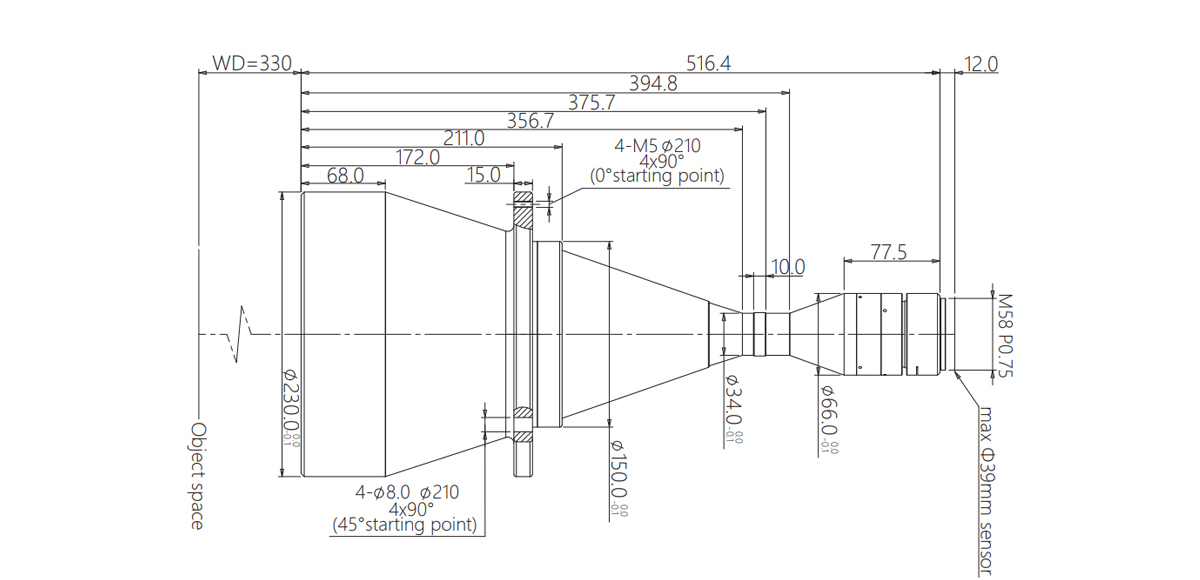

Length (mm) | 516.4 | Weight(kg) | 10.2 | ||||
Measured Depth of Field (mm) | 6 | Filter Screw Size | M223x1.0 | ||||
Field of View (mm × mm) |
CHR 70M (31.0x21.7) | 151.2x105.9 | |||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-190H-xW-y | |||||
Beam Diameter 190mm |
71M 0.205X Bi-Telecentric Lenses | DTCM71M-190H-M58-AL COOLENS®
$9,059.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM71M-190H-M58-AL | Image Circle Diameter (Φmm) | 39(71M) | ||||
Magnification(x) | 0.205 | Working Distance(mm) | 330±5 | ||||
NA | 0.0158 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 190 | ||||
Best Aperture(f/#) | 6.5 | MTF30 (lp/mm) | >135 | ||||
Depth of Field(mm) | ±10.5@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 858±5 | ||||
Length (mm) | 516.4 | Weight(kg) | 10.2 | ||||
Measured Depth of Field (mm) | 6 | Filter Screw Size | M223x1.0 | ||||
Field of View (mm × mm) |
CHR 70M (31.0x21.7) | 151.2x105.9 | |||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-190H-xW-y | |||||
Beam Diameter 190mm |
