150M 0.225X Bi-Telecentric Lenses | DTCM150M-300-M72-19.5-AL COOLENS®

DTCM150M-300-M72-19.5-AL
Image Circle:67.6(150M)mm, Magnification:0.225X, FoV:300mm, WD:465±6mm, NA:0.01091, Mount:M72, Type:Bi-Telecentric Lenses
$23,376.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$23,376.00 USD each
Description

Model NO. DTCM150M-300-M72-19.5-AL Image Circle Diameter (Φmm) 67.6(150M)
Magnification(x) 0.225 Working Distance(mm) 465±6
NA 0.0109 Type Bi-Telecentric
Mount M72 Object Field of View(Φmm) 300
Best Aperture(f/#) 6.6 MTF30 (lp/mm) >98
Depth of Field(mm) ±5.2@F6.6 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 1305±6
Length (mm) 820.5 Weight(kg) 48.027
Measured Depth of Field (mm) 6.5 Filter Screw Size  /
Field of View (mm × mm)
 150M IMX411 (53.42x40mm） 203.9x152.6

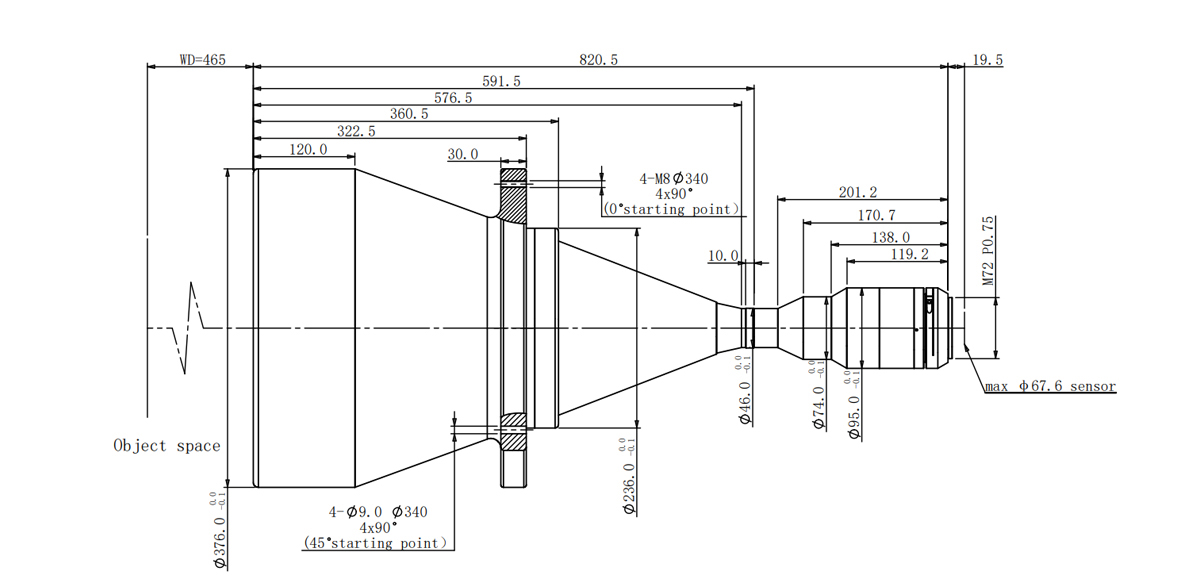

Dimensions

Naming Rule
