1" 0.231X Bi-Telecentric Lenses | DTCM110-72-AL COOLENS®

DTCM110-72-AL

Image Circle:16.6(1")mm, Magnification:0.231X, FoV:72mm, WD:178±3mm, NA:0.01771, Mount:C, Type:Bi-Telecentric Lenses

$1,715.00 USD

Quantity

Description

Model NO.		DTCM110-72-AL		Image Circle Diameter (Φmm)		16.6(1")
Magnification(x)		0.231		Working Distance(mm)		178±3
NA		0.0177		Type		Bi-Telecentric
Mount		C		Object Field of View(Φmm)		72
Best Aperture(f/#)		6.5		MTF30 (lp/mm)		>135
Depth of Field(mm)		±12.0@F16		Distortion Typical(% max)		<0.1
Telecentricity Typical (°max)		<0.1		Length of I/O(mm)		406±3
Length (mm)		210.5		Weight(kg)		1.2
Measured Depth of Field (mm)		4		Filter Screw Size		M84x0.5
Field of View (mm × mm)		1" PYTHON 5000(12.43x9.83)			53.8x42.6
		1" IMX255(14.19x7.51)			61.4x32.5
		1" IMX183(13.13x8.76)			56.8x37.9
Compatible Lighting		Telecentric LED Lighting			DTCL-72-xW-y
					Beam Diameter 72Hmm

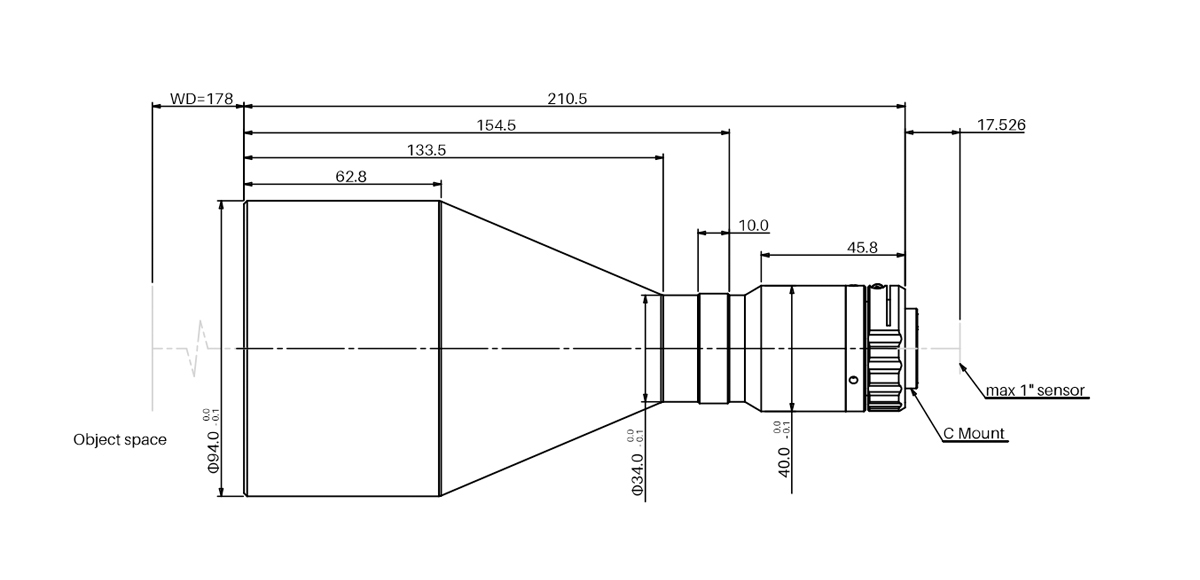

Dimensions

Naming Rule
