Model NO. | WWK0246-220-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 0.246 | Working Distance(mm) | 220±2 | ||||
NA | 0.0153 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | >100 | Object Resolution(μm) | 21.9 | ||||
Depth of Field(mm) | ±5.3@F8 | Distortion Typical(% max) | <0.1 | ||||

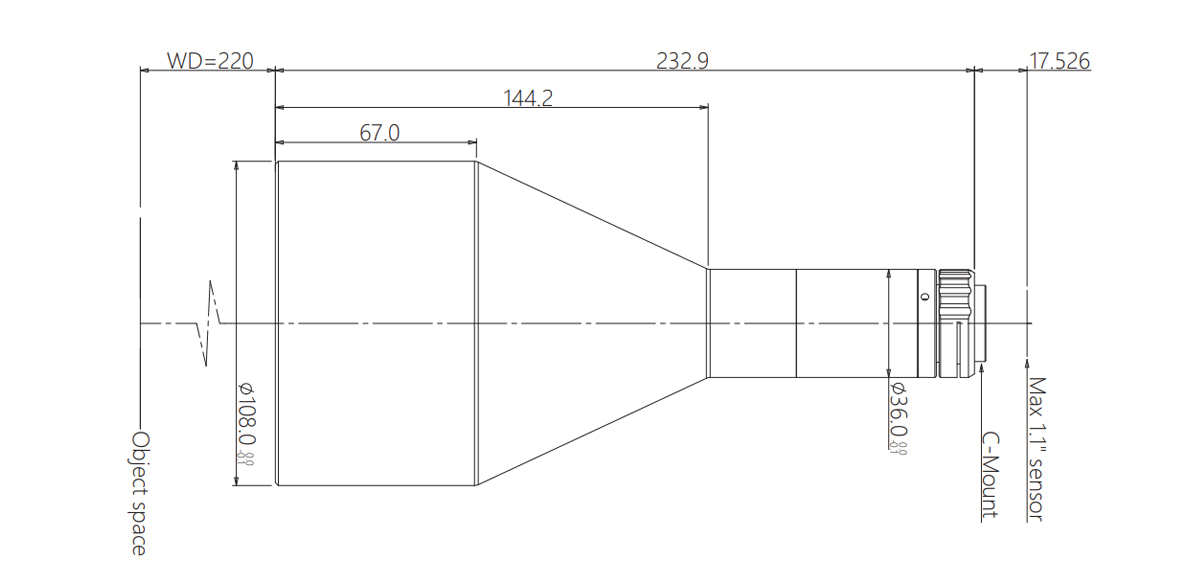

Telecentricity Typical (°max) | <0.13 | Length (mm) | 232.9 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5 | ||||
Filter Screw Size | M99x0.75 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 53.4x35.6 | ||||||
1.1" IMX253 (14.19x10.38) | 57.7x42.2 |

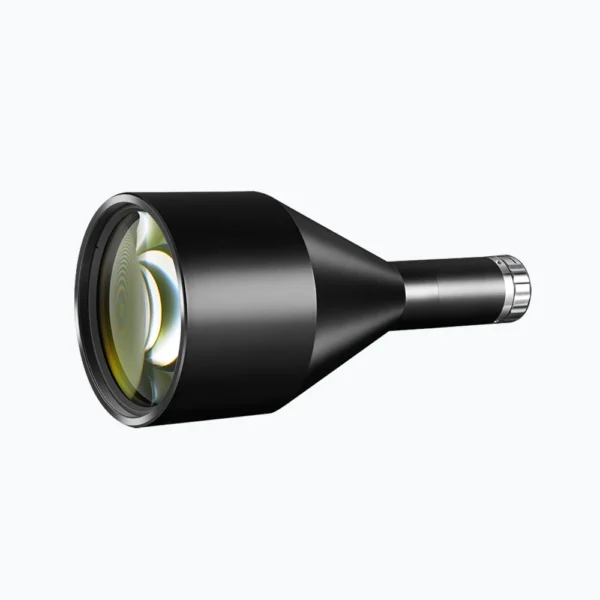

1.1" 0.246X Telecentric Lenses | WWK0246-220-111 COOLENS®
$1,266.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWK0246-220-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 0.246 | Working Distance(mm) | 220±2 | ||||
NA | 0.0153 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | >100 | Object Resolution(μm) | 21.9 | ||||
Depth of Field(mm) | ±5.3@F8 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.13 | Length (mm) | 232.9 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5 | ||||
Filter Screw Size | M99x0.75 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 53.4x35.6 | ||||||
1.1" IMX253 (14.19x10.38) | 57.7x42.2 |
