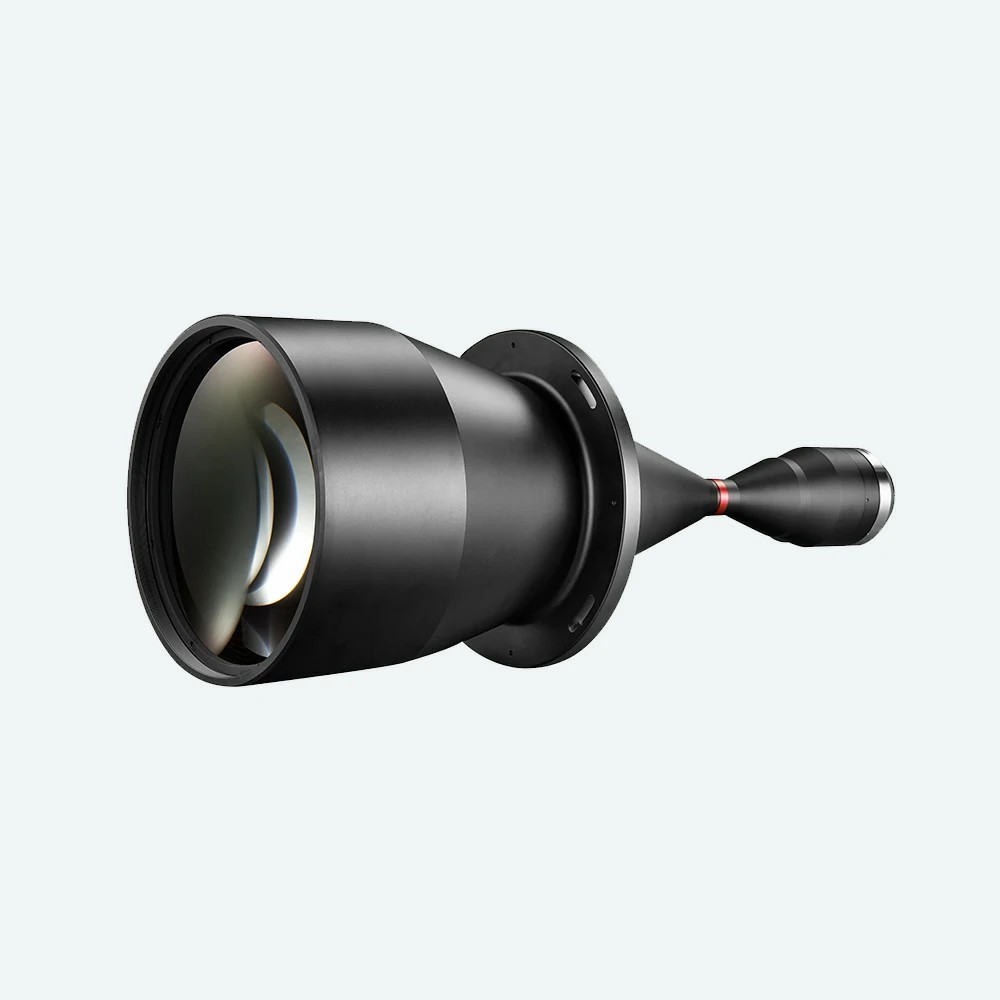

16K 0.246X Bi-Telecentric Lenses | DTCM16K-240H-AL COOLENS®

DTCM16K-240H-AL
$16,413.00 USD
Shipping calculated at checkout.
Quantity
16K 0.246X Bi-Telecentric Lenses | DTCM16K-240H-AL COOLENS®-OKLAB

Description

Model NO. DTCM16K-240H-AL Image Circle Diameter (Φmm) 59(16K)
Magnification(x) 0.246 Working Distance(mm) 410±6
NA 0.0142 Type Bi-Telecentric
Mount M72 Object Field of View(Φmm) 240
Best Aperture(f/#) 8.7 MTF30 (lp/mm) >100
Depth of Field(mm) ±14.6@F22 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 1135±6
Length (mm) 712.5 Weight(kg) 20.5
Measured Depth of Field (mm) 7.6 Filter Screw Size M272x1.0
Field of View (mm × mm)
 48.7×29.0 with KAI-47051 198.0x117.9
57.4mm with 16K×3.5/3.53um 233.3mm
57.4mm with 8K×7um/7.04um 233.3mm
Compatible Lighting
 Telecentric LED Lighting DTCL-240H-xW-y
Beam Diameter 240Hmm

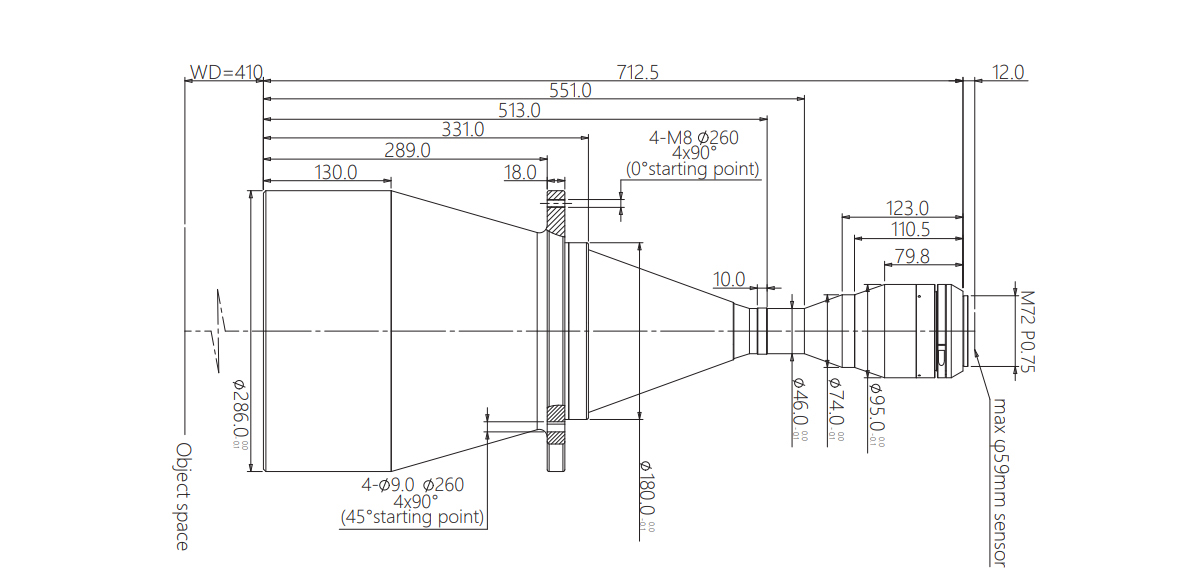

Dimensions
