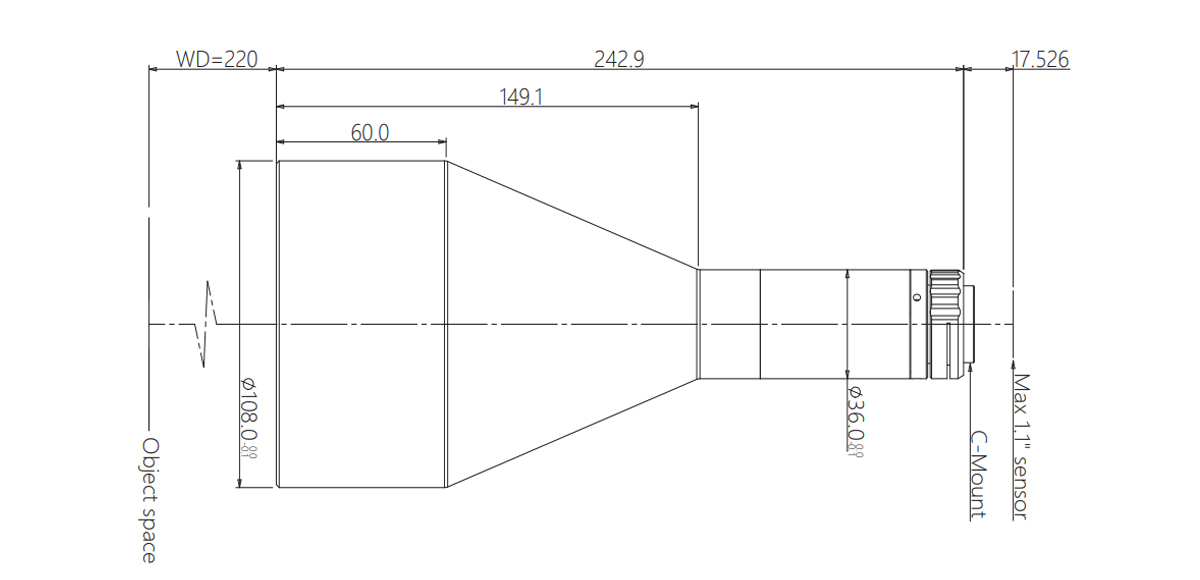

Model NO. | WWK0275-220-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 0.275 | Working Distance(mm) | 220±2 | ||||
NA | 0.0172 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | >105 | Object Resolution(μm) | 19.5 | ||||
Depth of Field(mm) | ±4.2@F8 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.15 | Length (mm) | 242.9 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3.6 | ||||
Filter Screw Size | M99x0.75 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 47.7x31.9 | ||||||
1.1" IMX253 (14.19x10.38) | 51.6x37.7 |

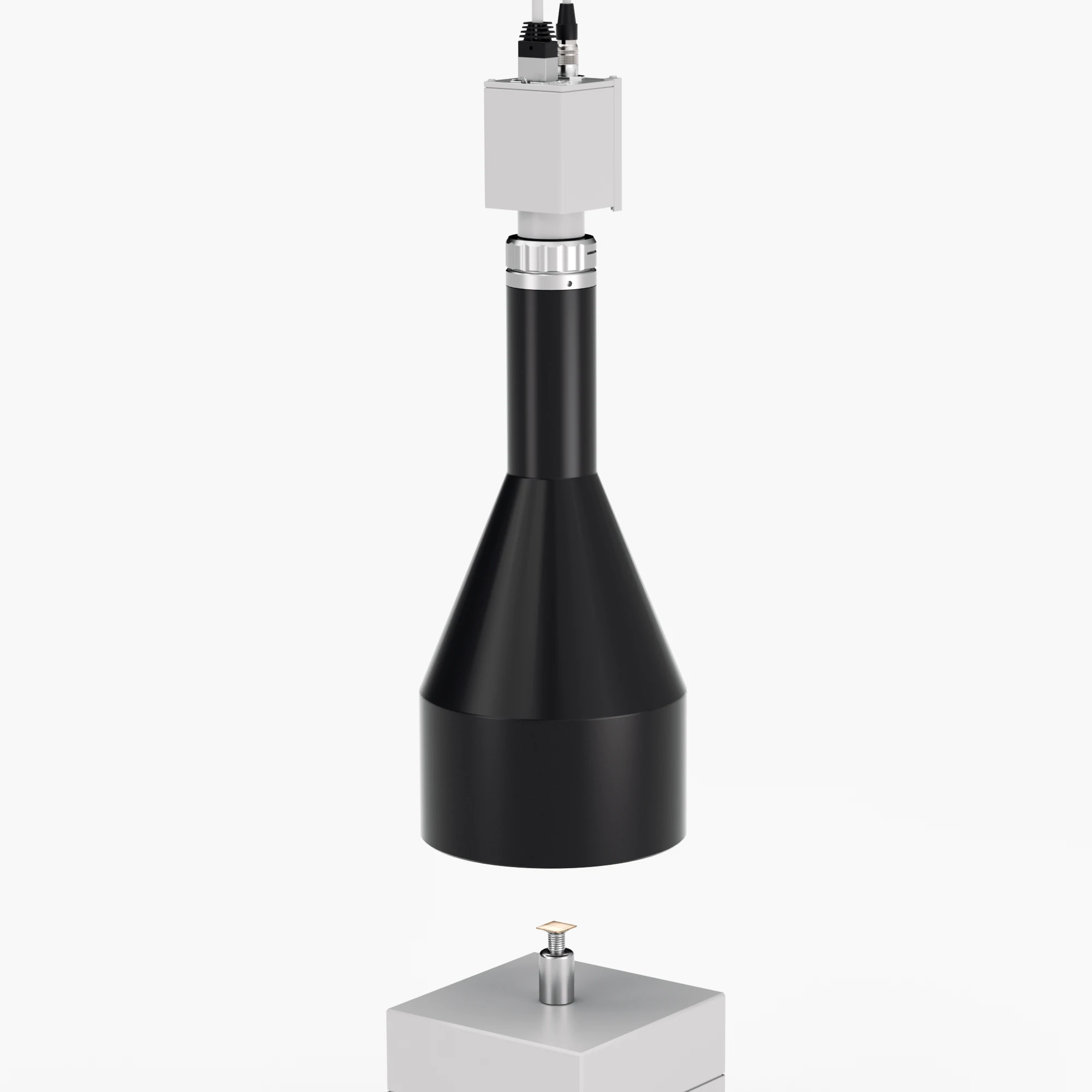

1.1" 0.275X Telecentric Lenses | WWK0275-220-111 COOLENS®
$1,266.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWK0275-220-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
Magnification(x) | 0.275 | Working Distance(mm) | 220±2 | ||||
NA | 0.0172 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | >105 | Object Resolution(μm) | 19.5 | ||||
Depth of Field(mm) | ±4.2@F8 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.15 | Length (mm) | 242.9 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3.6 | ||||
Filter Screw Size | M99x0.75 | ||||||
Field of View (mm x mm) | |||||||
1" IMX183 (13.13x8.76) | 47.7x31.9 | ||||||
1.1" IMX253 (14.19x10.38) | 51.6x37.7 |
