| Model NO. |
DTCM210-120H-M58-AL |
Image Circle Diameter (Φmm) |
33(2") |
| Magnification(x) |
0.275 |
Working Distance(mm) |
273±5 |
| NA |
0.0177 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
120 |
| Best Aperture(f/#) |
7.8 |
MTF30 (lp/mm) |
>115 |
| Depth of Field(mm) |
±8.5@F16 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
653±5 |
| Length (mm) |
368.3 |
Weight(kg) |
4.8 |
| Measured Depth of Field (mm) |
4 |
Filter Screw Size |
M150x1.0 |
Field of View (mm × mm)
|
2" DALSA 12M (24.58x18.43) |
89.4x67.0 |
| 2" PYTHON 25K (23.04x23.04) |
83.8x83.8 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-120-xW-y |
|
| Beam Diameter 120mm |

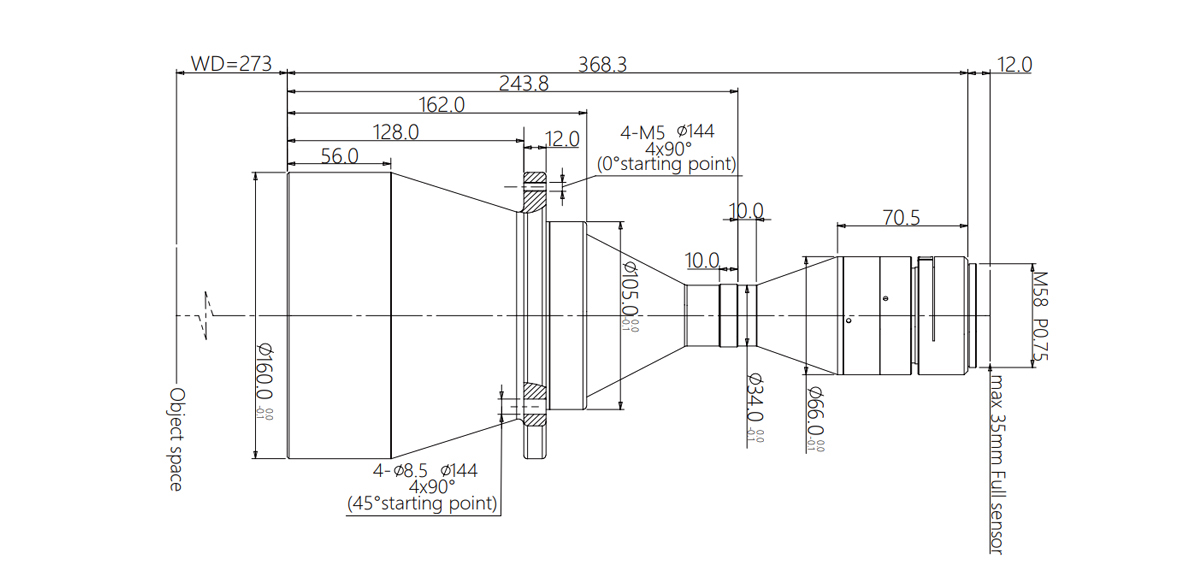

Dimensions
Naming Rule
