Model NO. | DTCM175-100H-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
Magnification(x) | 0.29 | Working Distance(mm) | 238±4 | ||||
NA | 0.0128 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 100 | ||||
Best Aperture(f/#) | 6.8 | MTF30 (lp/mm) | >132 | ||||
Depth of Field(mm) | ±7.6@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 581±4 | ||||
Length (mm) | 296.5 | Weight(kg) | 3.6 | ||||
Measured Depth of Field (mm) | 3.4 | Filter Screw Size | M111x0.75 | ||||
Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 77.7x58.3 | |||||
1.75" PYTHON16k (18.43x18.43) | 63.6x63.6 | ||||||
1.75" LineScan-4k (28.8mm) | 99.3mm | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-100H-xW-y | |||||
Beam Diameter 100mm |

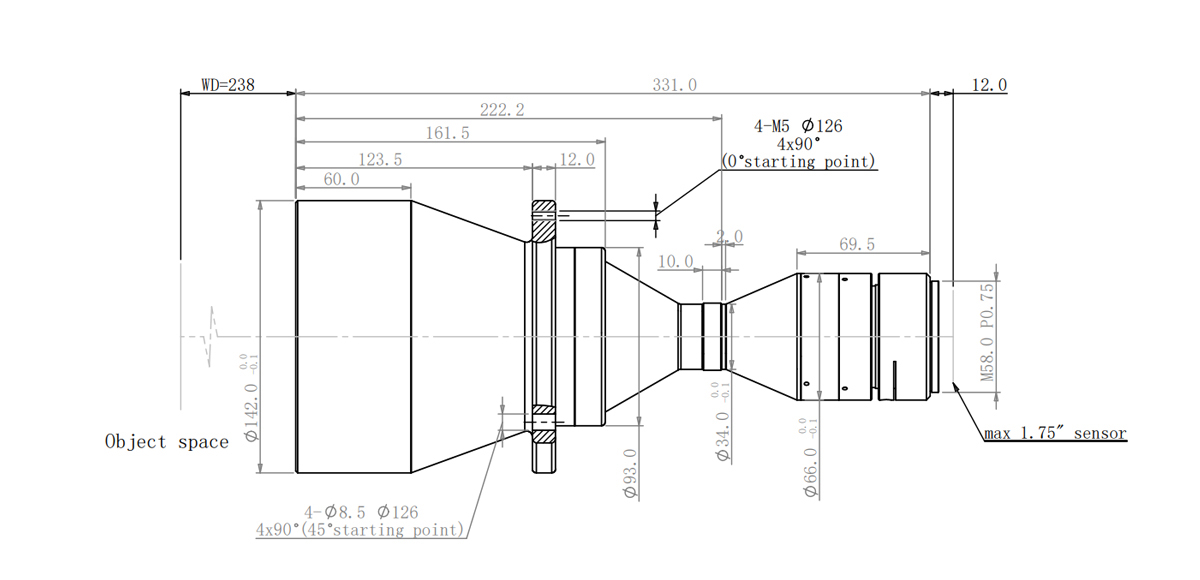

1.75" 0.29X Bi-Telecentric Lenses | DTCM175-100H-M58-AL COOLENS®
$3,624.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM175-100H-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
Magnification(x) | 0.29 | Working Distance(mm) | 238±4 | ||||
NA | 0.0128 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 100 | ||||
Best Aperture(f/#) | 6.8 | MTF30 (lp/mm) | >132 | ||||
Depth of Field(mm) | ±7.6@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 581±4 | ||||
Length (mm) | 296.5 | Weight(kg) | 3.6 | ||||
Measured Depth of Field (mm) | 3.4 | Filter Screw Size | M111x0.75 | ||||
Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) | 77.7x58.3 | |||||
1.75" PYTHON16k (18.43x18.43) | 63.6x63.6 | ||||||
1.75" LineScan-4k (28.8mm) | 99.3mm | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-100H-xW-y | |||||
Beam Diameter 100mm |
