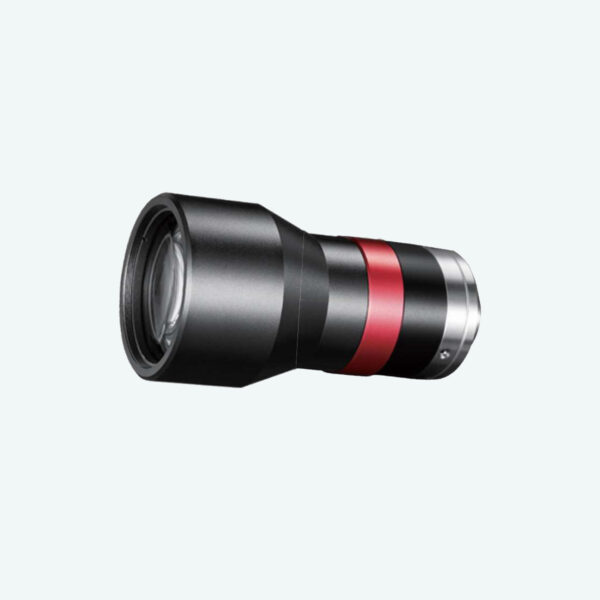

0.305X, 1/2.5″ C-Mount Bi-Telecentric Lenses | DTCM125 COOLENS®

$0.00 USD
Shipping calculated at checkout.
Quantity
0.305X, 1/2.5″ C-Mount Bi-Telecentric Lenses | DTCM125 COOLENS®-OKLAB

Description

Model NO. DTCM125-24H-D13 Magnification(x) 0.305
Object Field of View (Φmm) 24 Working Distance (mm) 40±1
Max Sensor Size (Φmm) 7.2(1/2.5") Best Aperture (F/#) 1.3
Telecentricity typical (max) (deg) <1.1 Distortion typical (max) (%) <0.03
MTF30 (lp/mm) 72 Depth of Field (mm) 4.6
Length of I/O (mm) 126±1 Mount C
Length (mm) 68 Weight (kg) 0.2
Field of View (mm × mm) 1/3" AR130/RJ33 (4.8x3.6) 15.7x11.8
1/2.5" 9P001/31 (5.7x4.28) 18.7x14.0
Compatible Lighting Telecentric LED Lighting DTCL-24-xW-y
Beam Diameter 24mm



Dimensions
